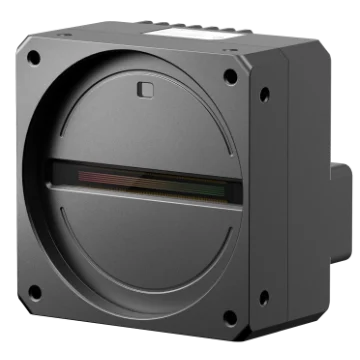

Hikrobot MV-CL08K7-148TM 8K7μm, 10GigE(RJ45), mono
Model MV-CL08K7-148TM
Hikrobot MV-CL08K7-148TM 8K7μm, 10GigE(RJ45), mono. Supports max. line rate of 148 kHz in standard mode and uses 10 GigE interface to transmit images. Supports HB/JPEG image compression to improve the line rate up to 239 kHz.
Datasheet (PDF) - MV-CL08K7-148TMUser manual (PDF) - MV-CL08K7-148TMCAD: 3D STEP + 2D DXF (ZIP) - MV-CL08K7-148TM
Features
- Supports max. line rate of 148 kHz in standard mode and uses 10 GigE interface to transmit images.
- Supports HB/JPEG image compression to improve the line rate up to 239 kHz.
- Supports ISP image functions and manual adjustment of Gamma correction, FFC, LUT, black level, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
Specifications
| Model | MV-CL08K7-148TM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 8192 × 1 |
| Image mode | Supports 1-Line |
| Max. line rate | Standard mode: 148 kHz @ Mono 8, 74 kHz @ Mono 10/Mono 12; Line rate after ROI or Binning: 239 kHz (8192 P and below); HB/JPEG image compression: 239 kHz |
| Dynamic range | 64.9 dB |
| SNR | 41.4 dB |
| Gain | Supports 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure time | 2 μs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 9.1 W @ 12 VDC |
| Lens mount | M72 *0.75, flange focal length 12 mm, connecting to F-mount, C-mount, and other lenses via adapter ring |
| Dimension | 76 mm × 76 mm × 49.5 mm (3.0" × 3.0" × 1.9") |
| Weight | Approx. 400 g (0.9 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.66 kg |
