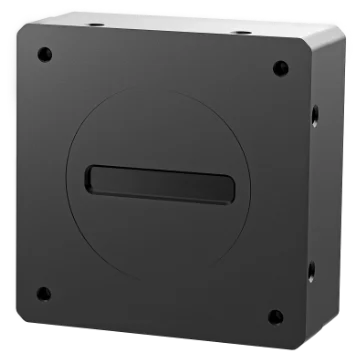

Hikrobot MV-CL021-60UM-OCT 2k USB3.0 line-scan, 10*180μm, Mono
Model MV-CL021-60UM-OCT
Hikrobot MV-CL021-60UM-OCT 2k USB3.0 line-scan, 10*180μm, Mono. Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
Datasheet (PDF, Chinese) - MV-CL021-60UM-OCTUser manual (PDF, Chinese) - MV-CL021-60UM-OCTCAD: 3D STEP + 2D DXF (ZIP) - MV-CL021-60UM-OCT
Features
- Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment
- Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
- Compliant with the USB3 Vision protocol and GenICam standard
Specifications
| Model | MV-CL021-60UM-OCT |
|---|---|
| Brand | Hikrobot |
| Sensor type | CCD |
| Pixel size | 10 μm × 180 μm |
| Resolution | 2048 × 1 |
| Max. line rate | 66.6 kHz |
| Transmission mode | U3V |
| Dynamic range | 65.2 dB |
| SNR | 46 dB |
| Gain | 2.0x |
| Exposure time | 15 μs ~ 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12/14 |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O: 2 configurable non-isolated I/O (Line 0/1), Single-ended/differential supported |
| Power supply | 12~24 VDC |
| Power consumption | 5 W@24 VDC |
| Dimension | 60 mm × 60 mm × 23.4 mm |
| Weight | Approx. 140 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Operating temperature: -20 to 35°C, Storage temp.: -30 to 80 °C |
| Humidity | 5% to 90% RH (non-condensing) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | Windows 7/10/11 32/64 bits |
| Compatibility | USB3 Vision, GenlCam |
| Certification | RoHS |
| Shipping weight (estimated) | 0.30 kg |
