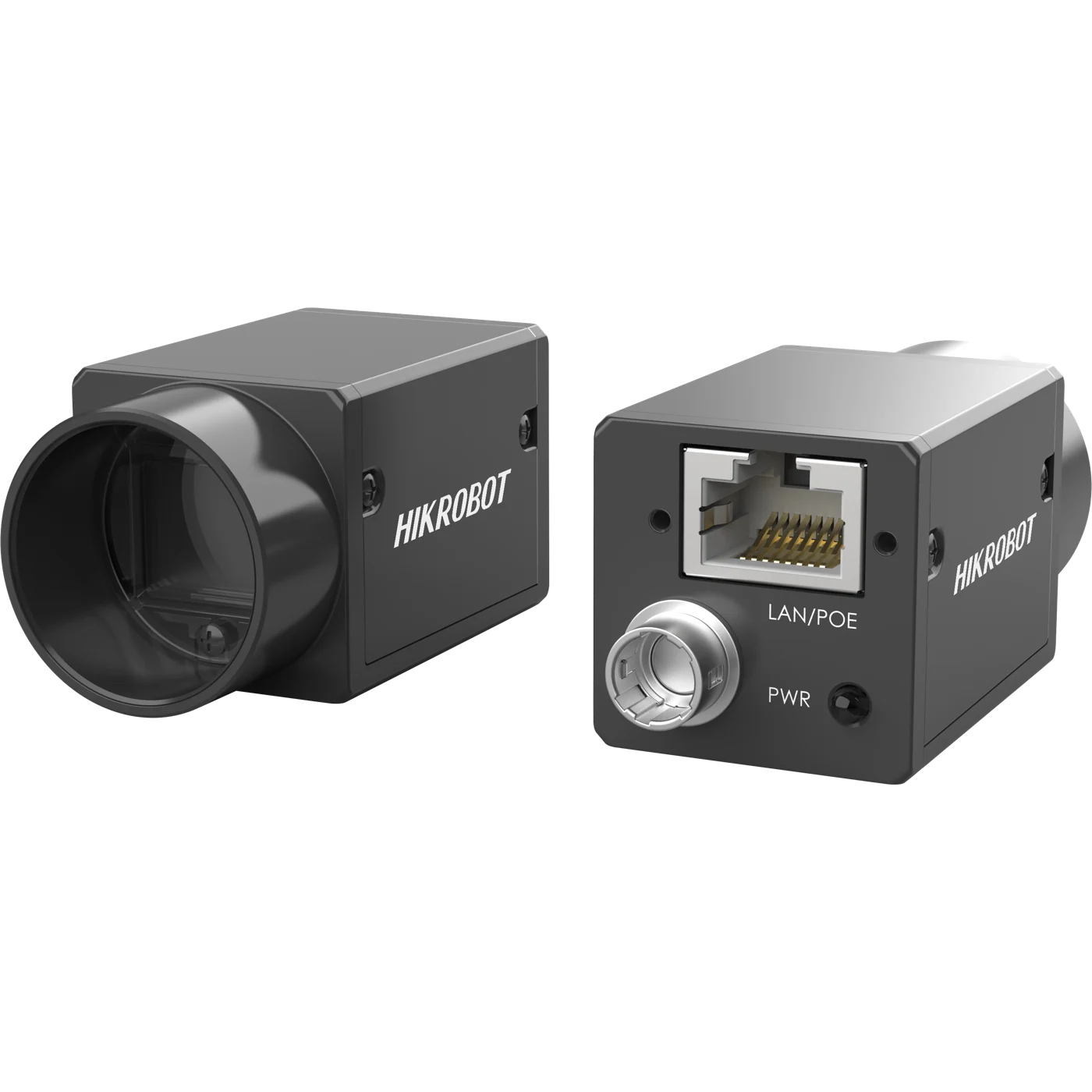

Hikrobot MV-CE100-30GC 10MP Area Scan Camera, GigE, IMT9J003, Color
Model MV-CE100-30GC
Hikrobot MV-CE100-30GC 10MP Area Scan Camera, GigE, IMT9J003, Color. Adopts GigE interface and max. transmission distance of 100 meters without relay. Up to 128 MB local memory for burst transmission and retransmission.
Datasheet (PDF) - MV-CE100-30GCUser manual (PDF) - MV-CE100-30GCCAD: 3D STEP + 2D DXF (ZIP) - MV-CE100-30GC
Features
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Up to 128 MB local memory for burst transmission and retransmission.
- Supports auto exposure control, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, etc.
- Compatible with GigE Vision V1.2 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CE100-30GC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | MT9J003 |
| Pixel size | 1.67 μm × 1.67 μm |
| Sensor size | 1/2.3" |
| Resolution | 3840 × 2748 |
| Max. frame rate | 7 fps @ 3840 × 2748 |
| Dynamic range | 65 dB |
| SNR | 34 dB |
| Gain | 0 dB to 15.3 dB |
| Exposure time | 50 μs to 2 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8/10/12, Bayer GR 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed, RGB 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not support |
| Reverse image | Supports horizontal reverse image output |
| Image buffer | 128 MB |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 12 VDC, supports PoE |
| Power consumption | Typ. 2.6 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V1.2, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
