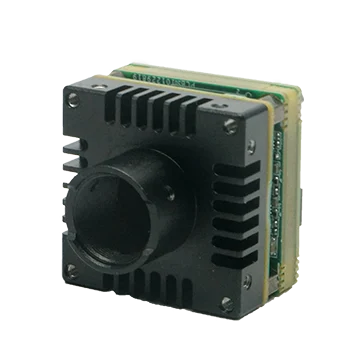

Hikrobot MV-CB060-10GC-S-W 6 MP GigE board-level camera, IMX178, Color, M12 front cover, WTB GigE port
Model MV-CB060-10GC-S-W
Hikrobot MV-CB060-10GC-S-W 6 MP GigE board-level camera, IMX178, Color, M12 front cover, WTB GigE port. Automatic or manual gain, exposure time and white balance; manual gamma correction, LUT, binning and more Built-in lossless compression and noise reduction for excellent image quality
Datasheet (PDF, Chinese) - MV-CB060-10GC-S-WUser manual (PDF, Chinese) - MV-CB060-10GC-S-WCAD: 3D STEP + 2D DXF (ZIP) - MV-CB060-10GC-S-W
Features
- Automatic or manual gain, exposure time and white balance; manual gamma correction, LUT, binning and more
- Built-in lossless compression and noise reduction for excellent image quality
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software
Specifications
| Model | MV-CB060-10GC-S-W |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8” |
| Resolution | 3072 × 2048 |
| Max. frame rate | 19.1 fps @3072 × 2048; 30.7 fps @3072 × 2048 (image compression mode enabled) |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 25 μs ~ 2.5 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed2; RGB 8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 ~ 24 VDC |
| Power consumption | 2.6 W@12 VDC |
| Lens mount | M12-Mount |
| Dimension | 29 mm × 29 mm × 22.4 mm |
| Weight | Approx. 35 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | FCC, RoHS |
| Shipping weight (estimated) | 0.15 kg |
