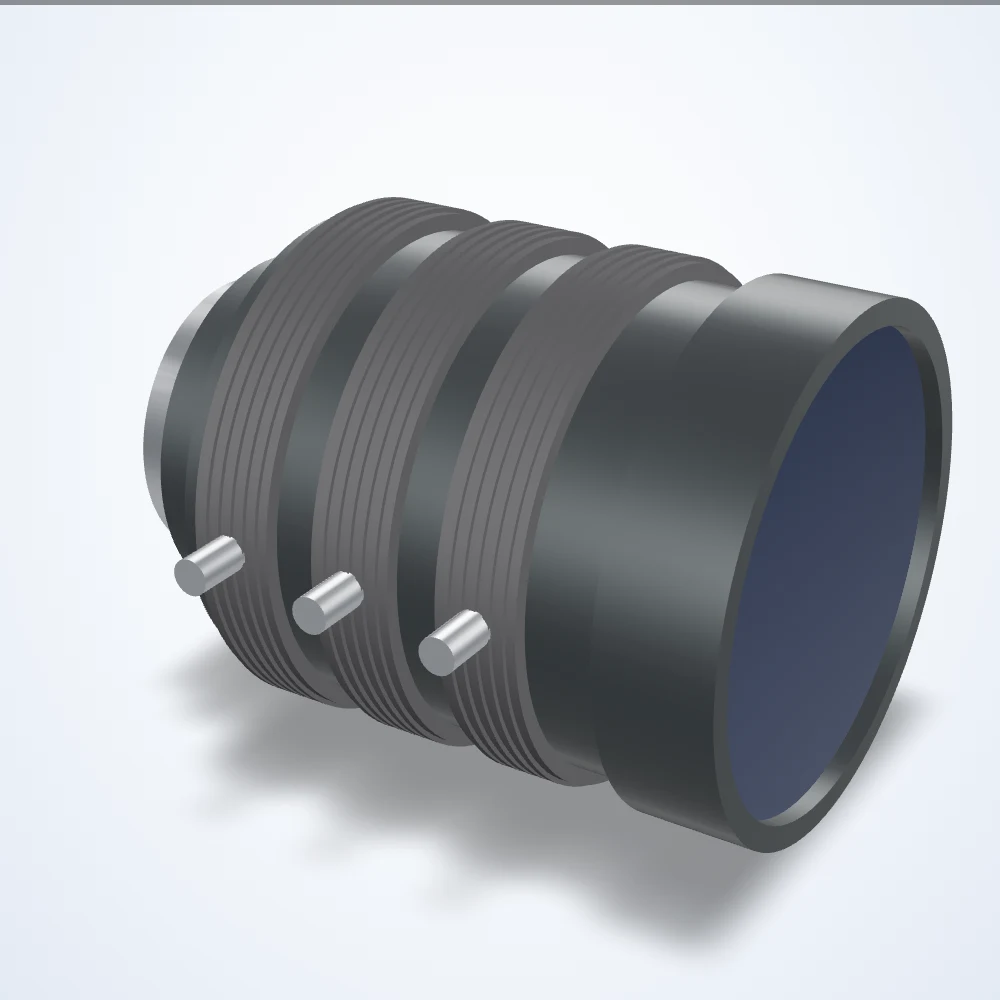

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
4.4-11 mm lens, 1/1.8", C-mount (LS-ZML-0022)
Model LS-ZML-0022
Machine vision lens for industrial cameras.
Specifications
| Model | LS-ZML-0022 |
|---|---|
| Focal length (mm) | 4.4-11 |
| Max. sensor format | 1/1.8" |
| Mount | C-mount |
| Aperture (F) | 1.6-16 |
| Angle of view | W 76.6 x 61.2 deg (D 89.4 deg) / T 36.7 x 28.0 deg (D 44.8 deg) |
| Distortion | W -0.2% / T 0.35% (TV) |
| Angle of view @ 1/1.8″ | W76.6×61.2/T36.7×28.0 |
| Angle of view @ 1/2″ | W70.2×55.5/T32.9×25.0 |
| Angle of view @ 1/3″ | W55.5×43.0/T25.0×18.9 |
| Back focal length | W 8.75 / T 14.48mm |
| Clear aperture | Front 30.0mm / Rear 8.0mm |
| Dimensions (dia. x length, mm) | 45 x 56.5 |
| Exit pupil position | W -61.4 / T -22.3mm |
| Filter thread | M43x0.75 |
| Flange focal length | 17.526mm |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Focusing range | 0.3m~inf |
| Front diameter | 30 mm |
| Image circle | 9 mm |
| Image size | 1/1.8" (9mm dia.) |
| Image size dimensions | 4.4 mm x 11 mm |
| Iris control | Manual |
| Lens construction | 7 groups 9 elements |
| Lens type | Variable Focal Length |
| Minimum object distance (m) | 0.3 |
| Operating temperature range | -10 to +50 °C |
| Operation | Manual focus / manual iris |
| Rear dia. | 44mm |
| Rear effective diameter | 8 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Shooting range at mod | W507.5×379.0/T211.4×159.0 |
| Spectrum | Visible |
| Temperature range | -10~+50 C |
| Tv distortion (%) | W−0.2/T0.4 |
| Zoom control | Yes |
| Zoom ratio | 2.5x |
| Weight (g) | 125 |
