Machine vision lenses

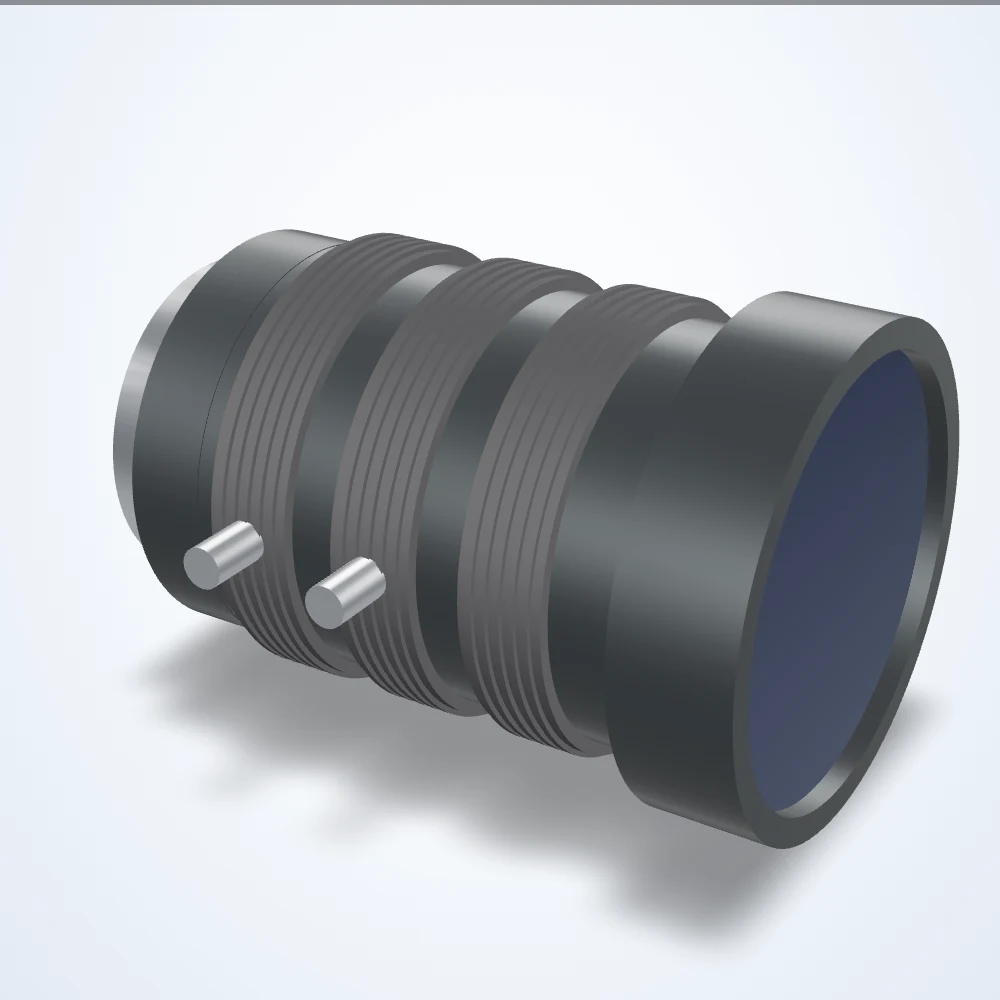

1.8-3.6 mm lens, 1/3", CS-mount (LS-ZML-0019)
Model LS-ZML-0019
Machine vision lens for industrial cameras.
Specifications
| Model | LS-ZML-0019 |
|---|---|
| Focal length (mm) | 1.8-3.6 |
| Max. sensor format | 1/3" |
| Mount | CS-mount |
| Aperture (F) | F1.6-F16C |
| Operating temperature | -20 to +50 °C |
| Angle of view 1/3" (d/h/v) | 173.8°-99.0° / 144.2°-79.4° / 109.9°-59.6° |
| Angle of view 1/4" (d/h/v) | 135.8°-74.4° / 109.5°-59.6° / 82.3°-44.7° |
| Aov @ 1/3″ h°×v°×d° | 144.2 × 109.9 × 173.8° 79.4 × 109.9 × 99.0° |
| Aov @ 1/4″ h°×v°×d° | 109.5 × 82.3 × 135.8° 59.6 × 44.7 × 74.4° |
| Back focal length | Tele 10.5 mm / Wide 7.0 mm |
| Control (iris/focus/zoom) | Manual / Manual / Manual |
| Dimensions (dia. x length, mm) | 37.4 x 51 |
| Effective lens aperture | Front Ø22.0 mm / Rear Ø7.9 mm |
| Filter size | - |
| Flange back length | 12.5 mm (in air) |
| Focus control | Manual |
| Focus range | 0.2 m - Inf. |
| Front diameter | 22 mm |
| Image circle | 6 mm |
| Image size dimensions | 4.8 mm x 3.6 mm |
| Iris control | Manual |
| Lens type | Variable Focal Length |
| Max aperture ratio | 1:1.6 |
| Max image format | 4.8 x 3.6 mm (Ø6 mm) |
| Mount thread | 1-32 UNF |
| Object dimension at mod | 1.8mm: 123.8 x 56.5 cm; 3.6mm: 33.2 x 22.9 cm |
| Operating temperature range | -10 to +50 °C |
| Rear diameter | Ø12.6 |
| Rear effective diameter | 7.9 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Thumb screw labels | N, T |
| Thumb screw reach from axis | 23 mm |
| Type | 2X vari-focal, manual iris |
| Zoom control | Manual |
| Zoom range | 1.8 - 3.6 mm |
| Weight (g) | 68 |
