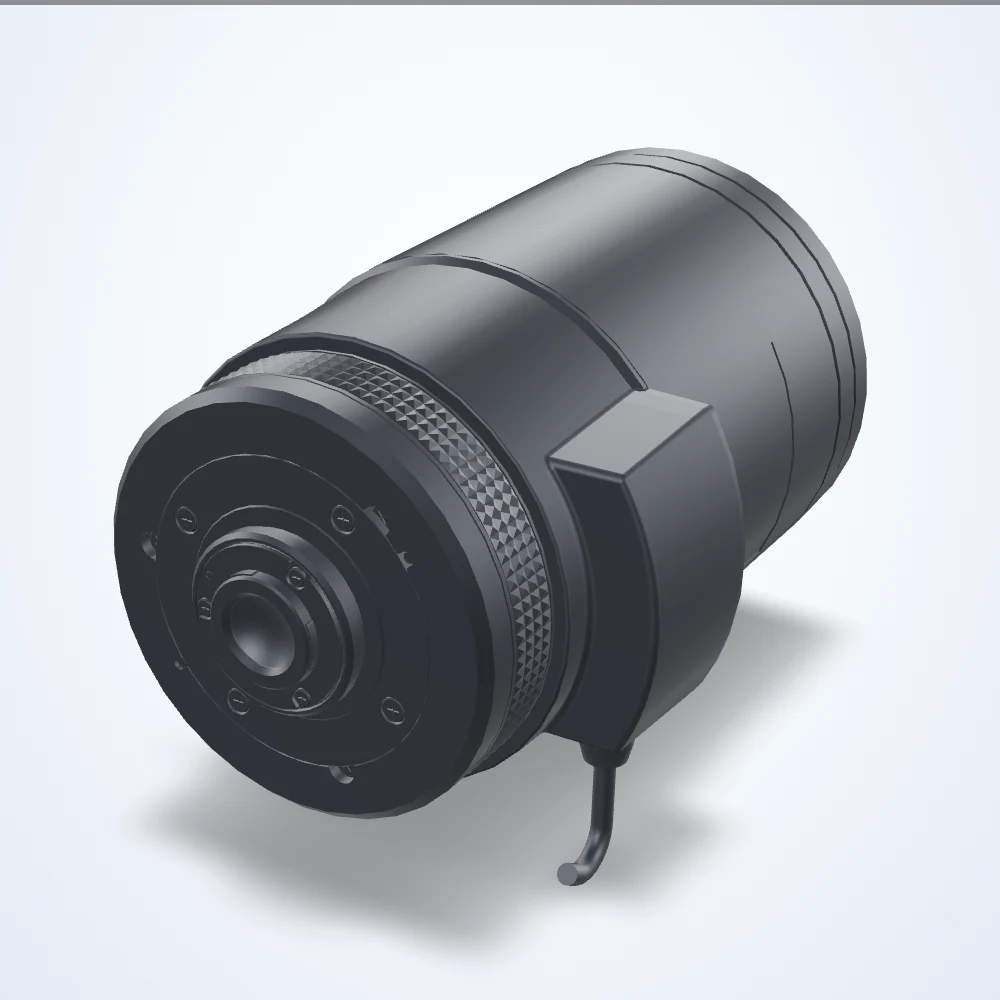

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
9 - 50 mm lens, 1/1.8", CS-mount (LS-ZML-0018)
Model LS-ZML-0018
Machine vision lens for industrial cameras. Minimum object distance 3000 mm.
Specifications
| Model | LS-ZML-0018 |
|---|---|
| Focal length | 9 - 50 mm |
| Magnification | 6× |
| Sensor format | 1/1.8" |
| Mount | CS-Mount |
| Minimum object distance | 3000 mm |
| Aov @ 1/1.8″ (16:9) h°×v°×d° | 46.1 × 26.3 × 52.5° 9.0 × 5.2 × 10.2° |
| Aov @ 1/2.7″ (16:9) h°×v°×d° | 34.5 × 19.5 × 39.4° 6.7 × 3.8 × 7.7° |
| Aov @ 1/2.8″ (16:9) h°×v°×d° | 33.7 × 19.1 × 38.5° 6.6 × 3.8 × 7.5° |
| Aov @ 1/3″ (4:3) h°×v°×d° | 28.8 × 21.7 × 35.9° 5.7 × 4.3 × 7.0° |
| Aperture (max) | f/1.5 |
| Back focal length | 9.2 mm |
| Dimensions | 83 × 68 × 104.8 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual |
| Front diameter | 44.7 mm |
| Image circle | 8.9 mm |
| Image size dimensions | 7.1 mm x 5.4 mm |
| Iris control | Stepper Motor |
| Lens type | Variable Focal Length |
| Operating temperature range | -20 to +60 °C |
| Rear effective diameter | 9.6 mm |
| Resolution (MP) | 12 |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 9 mm - 50 mm |
| Weight | 278 |
