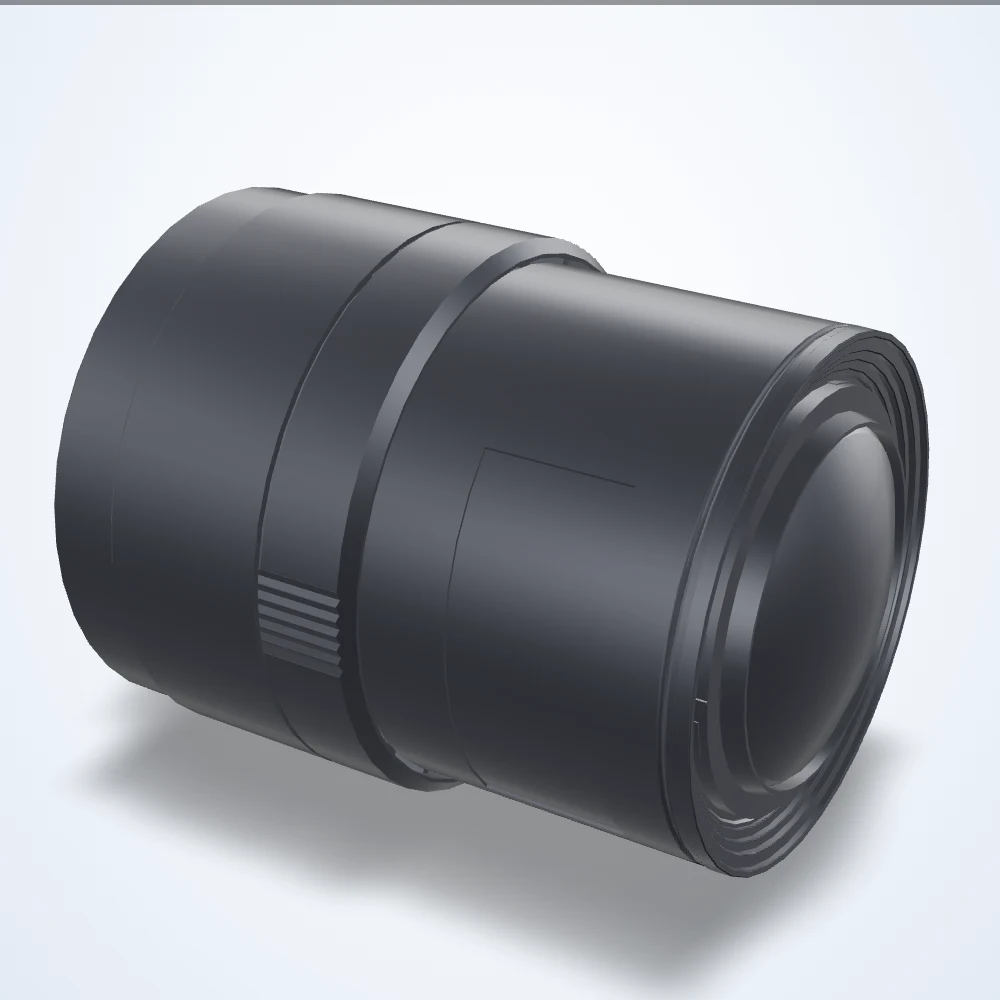

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.9 - 10 mm lens, 1/1.8", CS-mount (LS-ZML-0012)
Model LS-ZML-0012
Machine vision lens for industrial cameras. Minimum object distance 800 mm.
Specifications
| Model | LS-ZML-0012 |
|---|---|
| Focal length | 3.9 - 10 mm |
| Magnification | 3× |
| Sensor format | 1/1.8" |
| Mount | CS-Mount |
| Minimum object distance | 800 mm |
| Aov @ 1/1.8″ h°×v°×d° | 108.1 × 79.7 × 144.1° 42.1 × 32.0 × 52.9° |
| Aov @ 1/2″ h°×v°×d° | 96.0 × 70.2 × 124.8° 37.9 × 28.4 × 47.5° |
| Aov @ 1/3″ h°×v°×d° | 70.2 × 52.1 × 89.3° 28.4 × 21.3 × 35.5° |
| Aperture (max) | f/1.5 |
| Back focal length | 8.5 mm |
| Dimensions | 50 × 43.6 × 59 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual |
| Focus range | 0.8 m - ∞ |
| Front diameter | 25 mm |
| Image circle | 8.9 mm |
| Image size dimensions | 7.1 mm x 5.4 mm |
| Iris control | Manual |
| Lens type | Variable Focal Length |
| Operating temperature range | -20 to +60 °C |
| Rear effective diameter | 10 mm |
| Resolution (MP) | 8 |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 3.9 mm - 10 mm |
| Weight | 69 |
