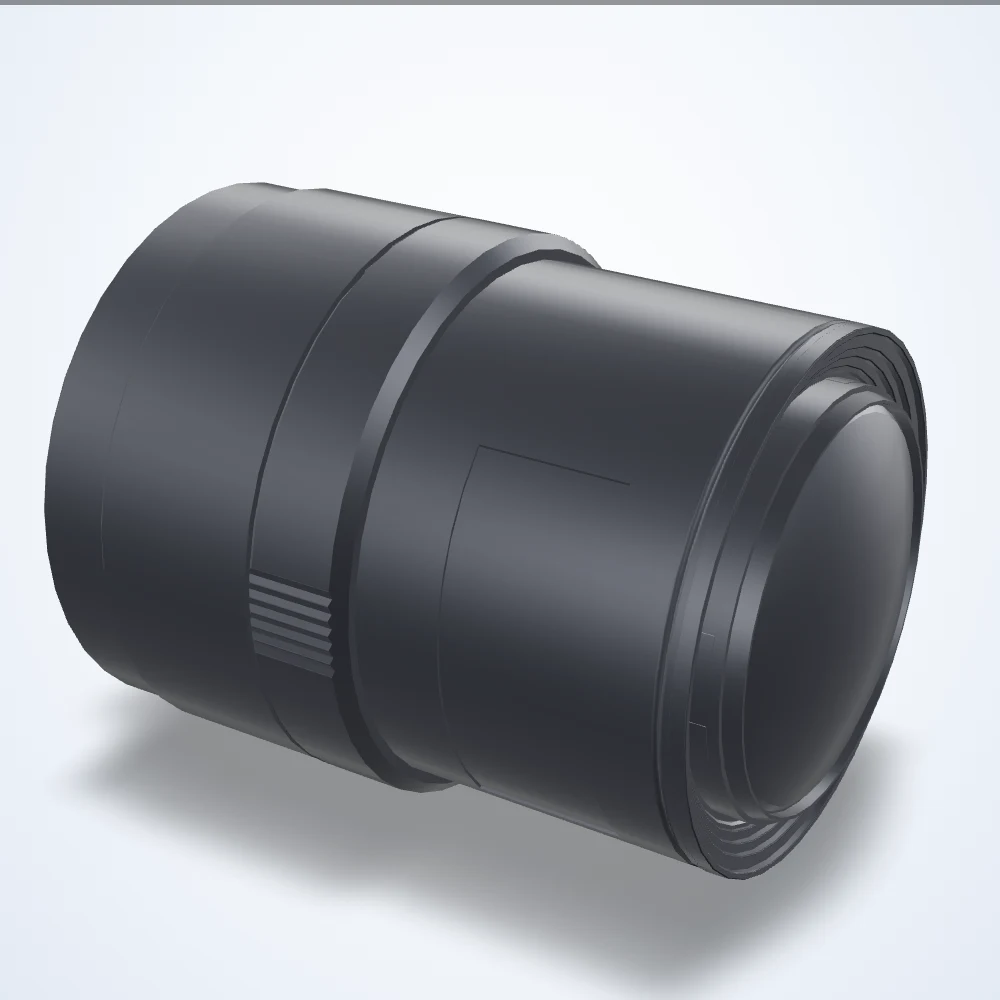

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
2.8 - 10 mm lens, 1/2.7", CS-mount (LS-ZML-0008)
Model LS-ZML-0008
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
Specifications
| Model | LS-ZML-0008 |
|---|---|
| Focal length | 2.8 - 10 mm |
| Magnification | 4× |
| Sensor format | 1/2.7" |
| Mount | CS-Mount |
| Minimum object distance | 500 mm |
| Aperture (max) | f/1.2 |
| Back focal length | 7.3 mm |
| Dimensions | 56 × 46 × 59 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Front diameter | 27 mm |
| Image circle | 6.6 mm |
| Image size dimensions | 3.2 mm x 5.8 mm |
| Iris control | DC Auto Iris |
| Lens type | Variable Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 9.7 mm |
| Resolution (MP) | 3 |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 2.8 mm - 10 mm |
| Weight | 66 |
