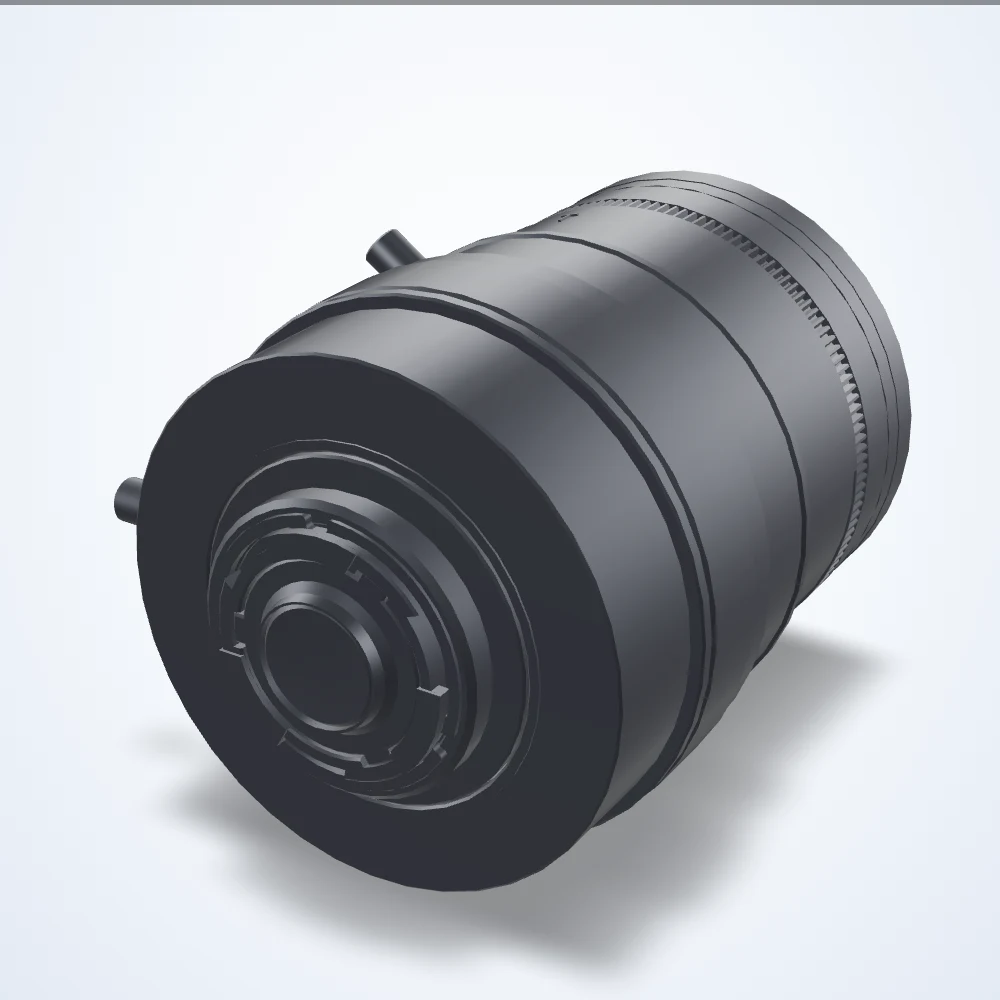

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12.5 - 50 mm lens, 1/2.7", CS-mount (LS-ZML-0002)
Model LS-ZML-0002
Machine vision lens for industrial cameras. Minimum object distance 1000 mm.
Specifications
| Model | LS-ZML-0002 |
|---|---|
| Focal length | 12.5 - 50 mm |
| Sensor format | 1/2.7" |
| Mount | CS-Mount |
| Minimum object distance | 1000 mm |
| Aov @ 1/2.7″ (16:9) h°×v°×d° | 26.3 × 14.5 × 30.3° 6.7 × 3.8 × 7.7° |
| Aov @ 1/3″ (4:3) h°×v°×d° | 21.7 × 16.2 × 27.4° 5.6 × 4.3 × 7.0° |
| Aperture (max) | f/1.4 |
| Back focal length | 7.3 mm |
| Dimensions | 49 × 49 × 58.2 mm |
| Filter thread | M40.5-0.5 |
| Focus control | Manual |
| Focus range | 1 m - ∞ |
| Front diameter | 21.7 mm |
| Image circle | 6.6 mm |
| Image size dimensions | 3.2 mm x 5.8 mm |
| Iris control | Manual |
| Lens type | Variable Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 9.1 mm |
| Resolution (MP) | 3 |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 12.5 mm - 50 mm |
| Weight | 80 |
