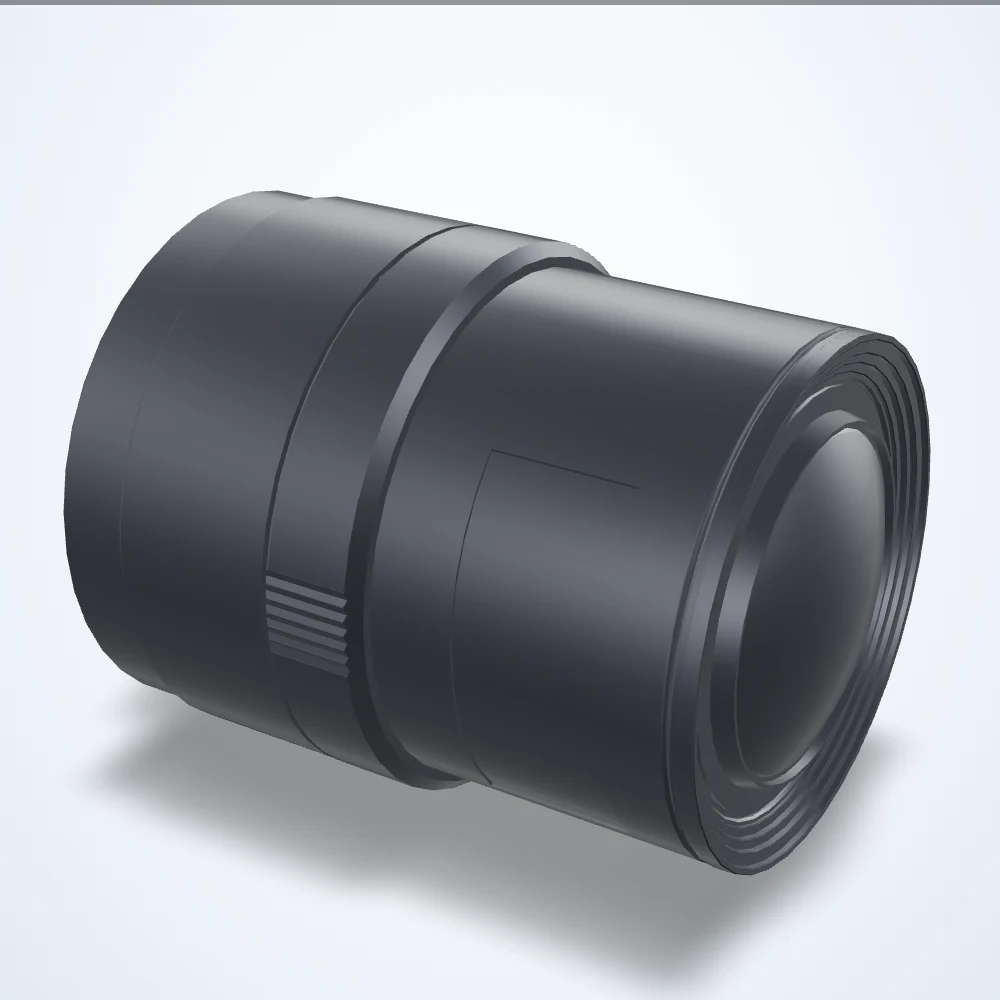

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
2.8 - 8.5 mm lens, 1/2.7", CS-mount (LS-ZML-0001)
Model LS-ZML-0001
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
Specifications
| Model | LS-ZML-0001 |
|---|---|
| Focal length | 2.8 - 8.5 mm |
| Magnification | 3× |
| Sensor format | 1/2.7" |
| Mount | CS-Mount |
| Minimum object distance | 500 mm |
| Aov @ 1/2.7″ h°×v°×d° | 124.7 × 63.9 × 150.4° 41.3 × 22.7 × 47.1° |
| Aov @ 1/3″ h°×v°×d° | 99.1 × 72.3 × 130.4° 34.1 × 25.6 × 42.8° |
| Aov @ 1/4″ h°×v°×d° | 72.3 × 53.5 × 92.1° 25.6 × 19.1 × 32.0° |
| Aperture (max) | f/1.2 |
| Back focal length | 7.3 mm |
| Dimensions | 43.6 × 43.6 × 59 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Front diameter | 24.8 mm |
| Image circle | 6.6 mm |
| Image size dimensions | 3.2 mm x 5.8 mm |
| Iris control | Manual |
| Lens type | Variable Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 8.4 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 2.8 mm - 8.5 mm |
| Weight | 64 |
