Machine vision lenses

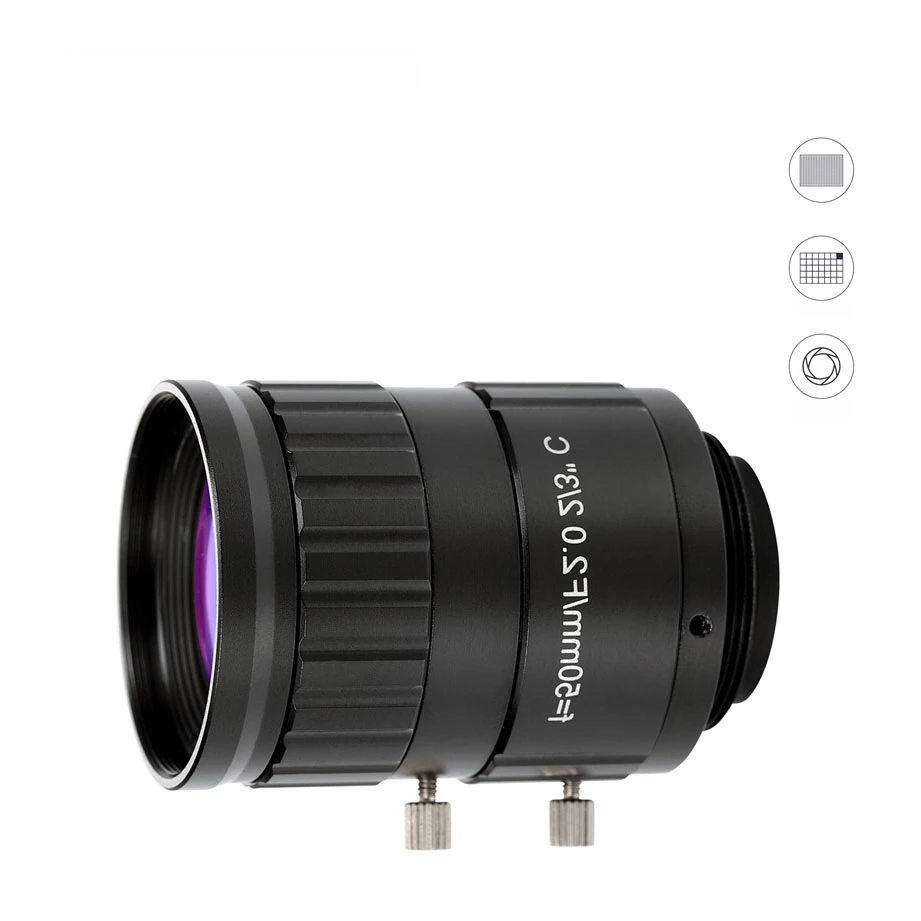

2/3" 5-10 megapixel ultra-high resolution FA lens, 50 mm, 2/3", C-mount (LS-XR-5005MP)
Model LS-XR-5005MP
2/3" 5-10 megapixel ultra-high resolution lens.
Features
- Supports cameras with sensors up to 2/3" (dia. 11 mm)
- Excellent low-distortion, high-resolution optical design, consistent imaging over the full field of view
- Very large aperture design for ultra-high-speed on-the-fly capture
Specifications
| Model | LS-XR-5005MP |
|---|---|
| Mount | C |
| Fastening mode | Manual |
| Service temperature | 20°C~+60°C |
| Focal length | 50mm |
| Iris (F) | 2 |
| Filter screw size | M30.5*P0.5 |
| Sensor size | 2/3" |
| Sensor format | 2/3" |
| Resolution (MP) | 5-10 |
| Aperture | F2 |
| Shipping weight | 0.38 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 2/3" 5-10 megapixel ultra-high resolution FA lens series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-XR-0805MP | 8 mm, 2/3", C-mount | $99.00 | 4 in stock | View |
| LS-XR-1205MP | 12 mm, 2/3", C-mount | $109.00 | 2 in stock | View |
| LS-XR-1605MP | 16 mm, 2/3", C-mount | $109.00 | 2 in stock | View |
| LS-XR-2505MP | 25 mm, 2/3", C-mount | $129.00 | 4 in stock | View |
| LS-XR-3505MP | 35 mm, 2/3", C-mount | $139.00 | 2 in stock | View |
