Machine vision lenses
6 mm F1.6 6 MP C-Mount Machine Vision Lens, 1/1.7" (LS-XF0624)
Model LS-XF0624
6 mm, 1/1.7", 6 MP C-mount machine vision lens. F1.6 with manual iris and focus locks, 0.15 m minimum object distance and 0.35% distortion in a 39 mm aluminium body with 9 glass elements.
Features
- Wide 69 x 54 degree field of view on a 1/1.8" sensor
- Manual iris and focus with locking screws
- Low distortion (0.35%)
- Compact aluminium body, 39 mm diameter
Specifications
| Model | LS-XF0624 |
|---|---|
| Focal length | 6.0 mm |
| Format size (") | 1/1.7 |
| Aperture | F1.6 |
| Mount | C |
| Angle of view, 1/1.8" (H x V) | 69.13 x 54.28 deg |
| Angle of view, 1/2" (H x V) | 61.59 x 48.35 deg |
| Angle of view, 1/3" (H x V) | 46.20 x 36.27 deg |
| Back focal length (mm) | 17.53 |
| Iris | Manual, lockable |
| Resolution | 6 MP |
| Minimum object distance (m) | 0.15 |
| Distortion (%) | 0.35 |
| Filter screw size | M37 (pitch 0.5 per the spec sheet, 0.75 per the drawing) |
| Dimensions (mm) | dia. 39 x 41.5 |
| Weight (g) | 95.8 |
| Construction | Aluminium alloy, 9 glass elements |

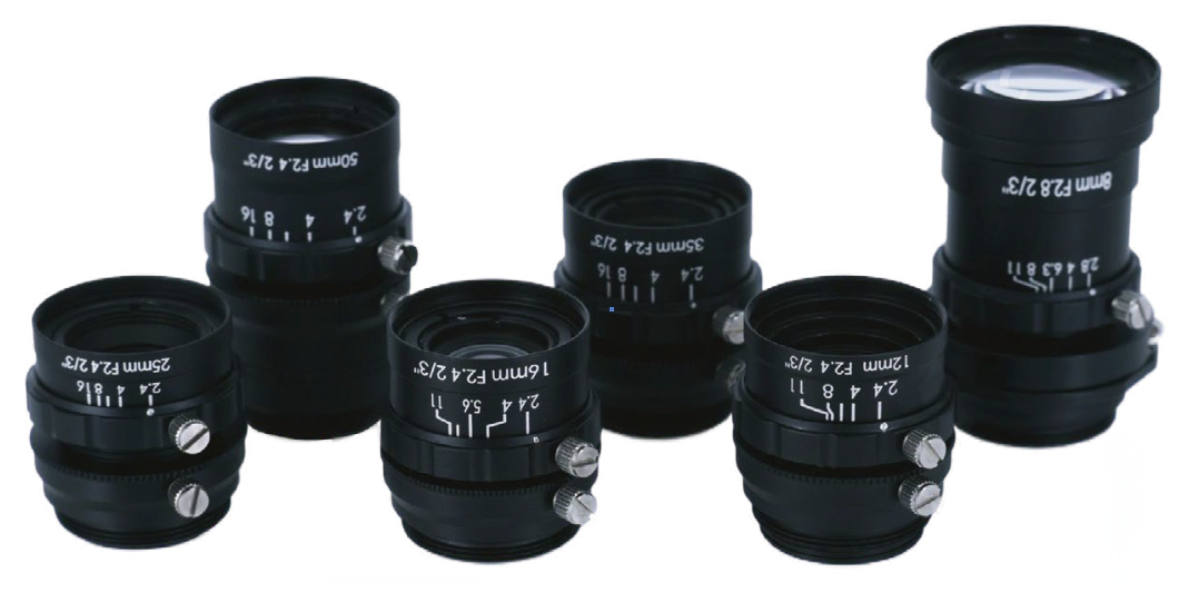

Photo shows a representative lens of this range; see the drawing and specifications for this model.
