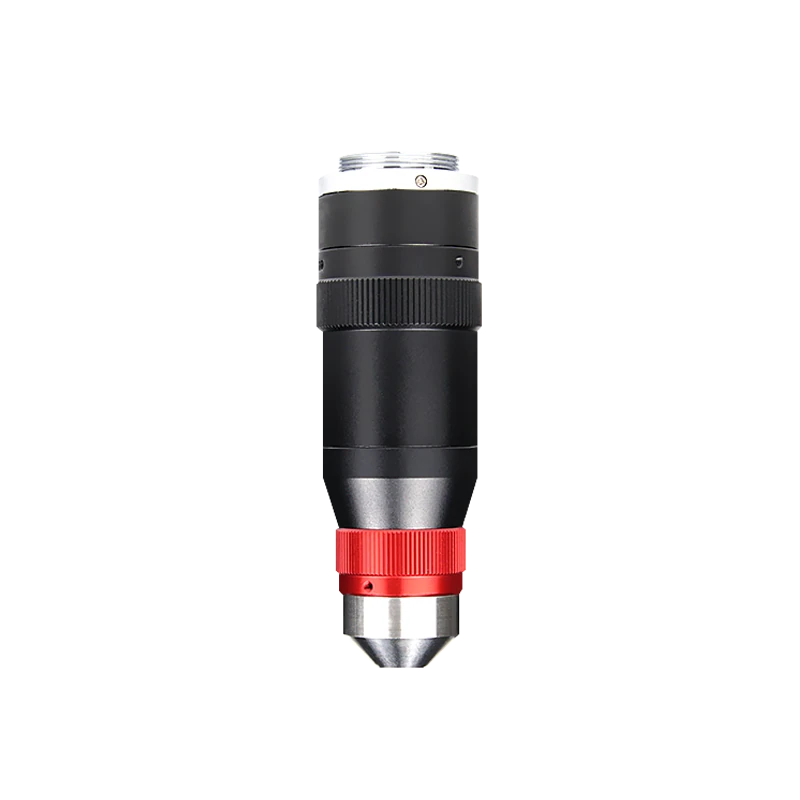

Welding lens (LS-W), 1/2", C-mount (LS-W1250412X)
Model LS-W1250412X
Welded lens is an optical lens designed to withstand extreme high temperature environments, the use of optical glass materials, will not affect the quality of the lens due to high temperatures.
Features
- Compact design.
- High temperature resistance.
- Resistant to corrosion and oxidation.
- Optical stability.
- Application of industrial monitoring, security monitoring, scientific research, energy production, aerospace and other special fields.
Specifications
| Model | LS-W1250412X |
|---|---|
| Sensor Size | 1/2" dia. 8mm |
| Magnification | 04X~1.2X |
| WD | 125mm±5mm |
| DOF | 3.5mm |
| F/NO | F8 |
| MTF0.3(LP/mm) | 0.4@100lp/mm |
| Object FOV | dia. 6.66 ~ dia. 20 |
| Mount | C |
| Type | High temperature welding lens |
| Working distance | 125mm±5mm |
| Resolution | 0.03% |
| MTF | >0.4@100lp/mm |
| Weight | 155.2g |
| Dimension | dia. 34x100mm |
| Remark | Replaceable attenuator dia. 18 |
| Sensor format | 1/2" dia. 8mm |
| Aperture | F8 |
| Field of view | dia. 6.66 ~ dia. 20 |
