Machine vision lenses

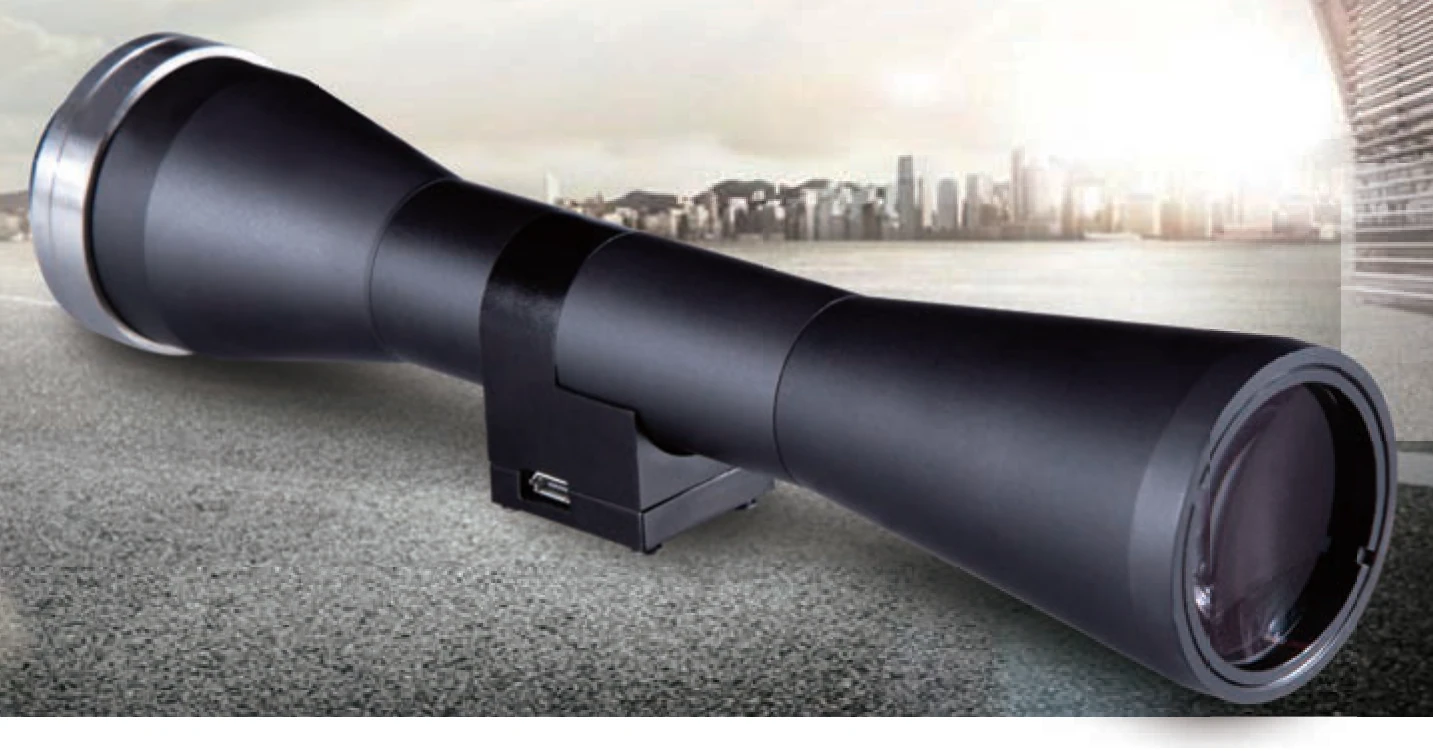

Liquid telecentric series (VXL), 2/3", C-Mount (LS-VXLMS1X5-20C-230)
Model LS-VXLMS1X5-20C-230
VXL liquid telecentric lenses focus electrically within 20 ms and work normally under very low voltage. Without mechanical displacement of the lens, the centre of curvature always stays at the centre of the optical axis, giving high efficiency, high accuracy, high telecentricity and low distortion.
Features
- Focus electrically, focus within 20 ms, and work normally under very low voltage
- Without mechanical displacement of the lens, the center of curvature is always at the center of the optical axis
- High efficiency, high accuracy, high telecentricity and low distortion
- High stability and easy maintenance
- Can quickly adjust the working distance and replace traditional mechanical changes
- Each lens of the VXL series is precisely adjusted and comprehensive test reports are provided
Specifications
| Model | LS-VXLMS1X5-20C-230 |
|---|---|
| Distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| Magnification (x) | 15 |
| Working distance (mm) | 19-22 |
| Max sensor size (dia. mm) | 11.4(2/3") |
| F/# | / |
| MTF30 (lp/mm) | 37 |
| Depth of field (mm) | / |
| I/O (mm) | 191.55-194.55 |
| Length (mm) | 155.02 |
| Weight (kg) | 0.285 |
| Coaxial light | YES |
| Field of view on 2/3" ICX625/655(8.45x7.07) (mm x mm) | 0.56x0.47 |
| Focus | Electrical (liquid lens), focus within 20 ms |
| Sensor format | 2/3" |
Applications
- Industrial high-end detection and precision measurement equipment
- Medical and biological high-definition image detection equipment
- Industrial detection and measurement occasions with height difference
