Machine vision lenses

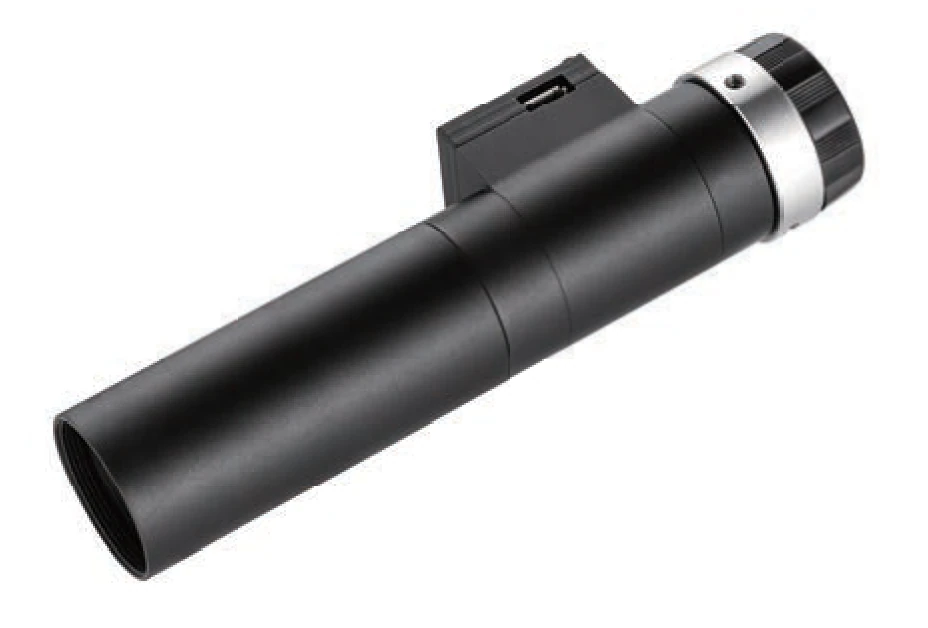

Liquid rear series (VXLM), 2/3", C-mount (LS-VXLM-230)
Model LS-VXLM-230
Liquid lens rear modules that directly match telecentric lenses, FA lenses and micro objective lenses, quickly adjusting the working distance in place of traditional mechanical changes.
Features
- Can directly match telecentric lens, FA lens and micro objective lens
- Can quickly adjust the working distance and replace the traditional mechanical changes
- Highly versatile, efficient and cost-effective
- High stability and easy maintenance
Specifications
| Model | LS-VXLM-230 |
|---|---|
| Mount | C |
| Operating temperature | 10℃ to +50℃ |
| Storage temperature | 20℃ to +60℃ |
| Max sensor size (dia. mm) | 11.0 (2/3") |
| F/# | 9 |
| Connector | Micro-USB |
| Weight (g) | 145 |
| Sensor format | 2/3" |
| Aperture | F9 |
Applications
- Industrial detection and measurement occasions with height difference
