Machine vision lenses

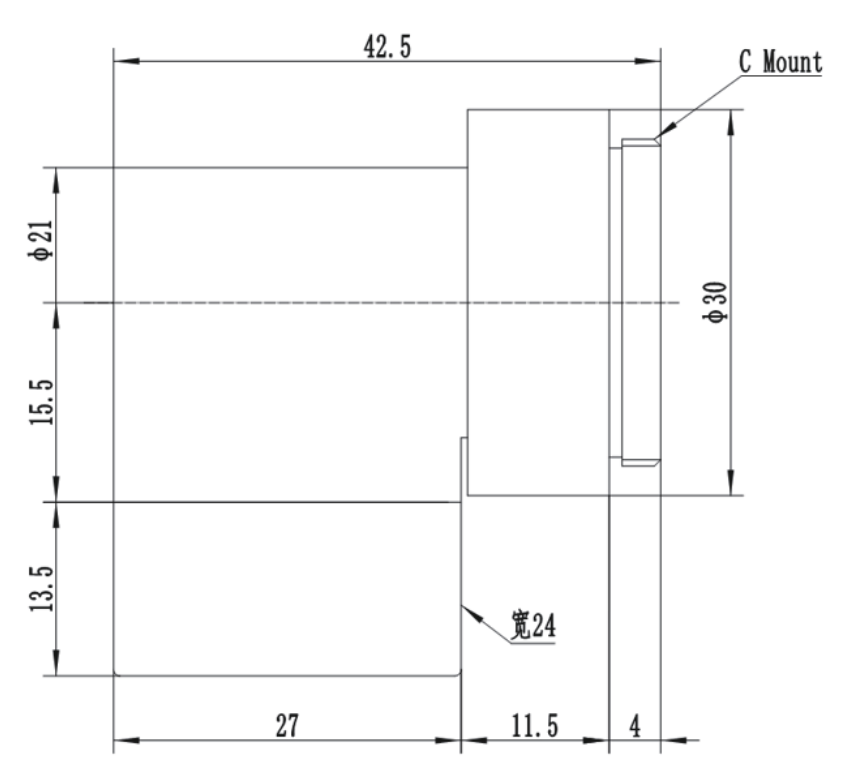

Liquid FA series (VXLFA), 25 mm, 2/3", C-mount (LS-VXLFA-230-5M25T)
Model LS-VXLFA-230-5M25T
Liquid FA lens of the VXL liquid lens range: 25 mm focal length, C mount, for 2/3" sensors. VXL lenses quickly adjust the working distance electrically and replace traditional mechanical changes.
Features
- Focus electrically, focus within 20 ms, and work normally under very low voltage
- Can quickly adjust the working distance and replace traditional mechanical changes
- High stability and easy maintenance
Specifications
| Model | LS-VXLFA-230-5M25T |
|---|---|
| Focal length (mm) | 25 |
| Max image circle (mm) | dia. 11 |
| Compatible sensor size | 2/3" |
| Aperture (F#) | 9 |
| Distortion (%) | ≤0.14 |
| Mount | C |
| Flange back length (mm) | 17.52 |
| FOV on 2/3" | 25.4° x 19.96° x 15.04° |
| FOV on 1/2.5" | 16.26° x 13° x 9.84° |
| Operating temperature | 10℃ to +50℃ |
| Storage temperature | 20℃ to +60℃ |
| Sensor format | 2/3" |
| Field of view | 2/3": 25.4° x 19.96° x 15.04°; 1/2.5": 16.26° x 13° x 9.84° |
| Shipping weight | 0.38 kg |
Applications
- Industrial detection and measurement occasions with height difference
