Telecentric lenses

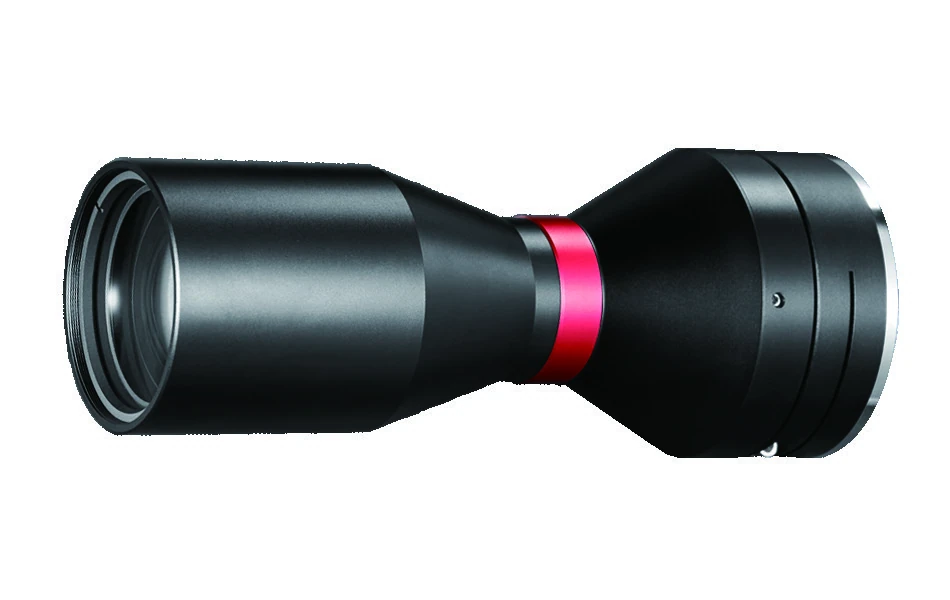

Bi-telecentric lens (VCM430 series), 0.1x, WD 410 mm, 4/3", C or F-mount (LS-VCM430-240-AL)
Model LS-VCM430-240-AL
VCM Series F-Mount high precision bi telecentric lenses are the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, etc.
Features
- Optimized for 4/3"~35mm F-Mount cameras
- Perfectly suitable for 4K and 8K line scan cameras
- FOV ranges from 26mm to 300mm
- Very high resolution, low distortion and homogeneous image quality
- Yield constant magnification over defined depth of field
- Customized mounts available.
Specifications
| Model | LS-VCM430-240-AL |
|---|---|
| Magnification (x) | 0.100 |
| Object Field of View (dia. mm) | 240 |
| Working Distance (mm) | 410±6 |
| Max Sensor Size (dia. mm) | 24(4/3") |
| Best Aperture (F/#) | 7.5 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >115 |
| Depth of Field (mm) | ±80.0@F20 |
| Length of I/O (mm) | 1047±6 |
| Field of view with KAI-08050 (18.13×13.6 sensor) (mm x mm) | 181.3x136.0 |
| Field of view with CMV8000 (18.48×13.73 sensor) (mm x mm) | 184.8x137.3 |
| Mount | C or F |
| Length (mm) | 590.3 |
| Weight (kg) | 25.9 |
| Compatible telecentric led lighting | LS-VCL-240-XW-Y Beam Diameter 240mm |
