Bi-telecentric lens for 1/2.5" cameras (VCM125 series) - B variant (VCM125B)
Telecentric lenses

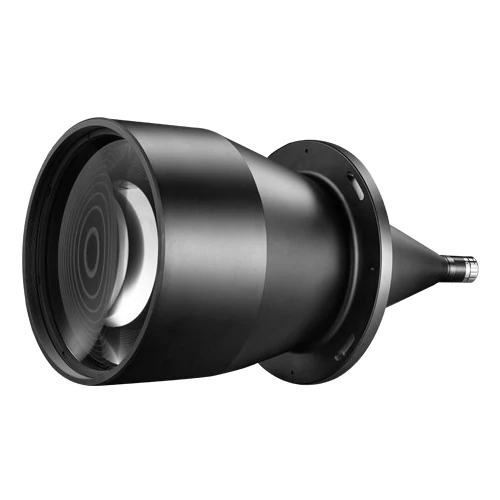

Bi-telecentric lens for 1/2.5" cameras (VCM125 series) - B variant (VCM125B), 0.072x, WD 238 mm, 1/2.5", C-mount (LS-VCM125B-100P-AL)
Model LS-VCM125B-100P-AL
Specifications
| Model | LS-VCM125B-100P-AL |
|---|---|
| Mount | C |
| Detector | 1/2.5" |
| Mag. | 0.072x |
| FOV | 100mm |
| WD | 238mm |
| Magnification(x) | 0.072 |
| Object Field of View (dia. mm) | 100 |
| Working Distance (mm) | 238±3 |
| Max Sensor Size (dia. mm) | 7.2(1/2.5") |
| Best Aperture (F/#) | 4.2 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.1 |
| MTF30 (lp/mm) | >189 |
| Depth of Field (mm) | ±10 |
| Length of I/O (mm) | 495.8 |
| Field of view with 9P001/31 (5.7x4.28 sensor) (mm x mm) | 79.1x59.4 |
| Length (mm) | 240.3 |
| Weight (kg) | 2.69 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 1/2.5" cameras (VCM125 series) - B variant (VCM125B) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM125B-26-AL | 0.277x, WD 72 mm, 1/2.5", C-mount | $999.00 | 3 in stock | View |
| LS-VCM125B-36-AL | 0.199x, WD 111 mm, 1/2.5", C-mount | $1,169.00 | 2 in stock | View |
| LS-VCM125B-42P-AL | 0.172x, WD 118 mm, 1/2.5", C-mount | $1,279.00 | 4 in stock | View |
| LS-VCM125B-48-AL | 0.15x, WD 128 mm, 1/2.5", C-mount | $1,379.00 | 2 in stock | View |
| LS-VCM125B-56-AL | 0.129x, WD 138 mm, 1/2.5", C-mount | $1,519.00 | 3 in stock | View |
| LS-VCM125B-64-AL | 0.113x, WD 187 mm, 1/2.5", C-mount | $1,649.00 | 3 in stock | View |
| LS-VCM125B-72-AL | 0.1x, WD 178 mm, 1/2.5", C-mount | $1,789.00 | 5 in stock | View |
| LS-VCM125B-80P-AL | 0.09x, WD 230 mm, 1/2.5", C-mount | $1,929.00 | 3 in stock | View |
| LS-VCM125B-90-AL | 0.08x, WD 208 mm, 1/2.5", C-mount | $2,099.00 | 3 in stock | View |
