Telecentric lenses

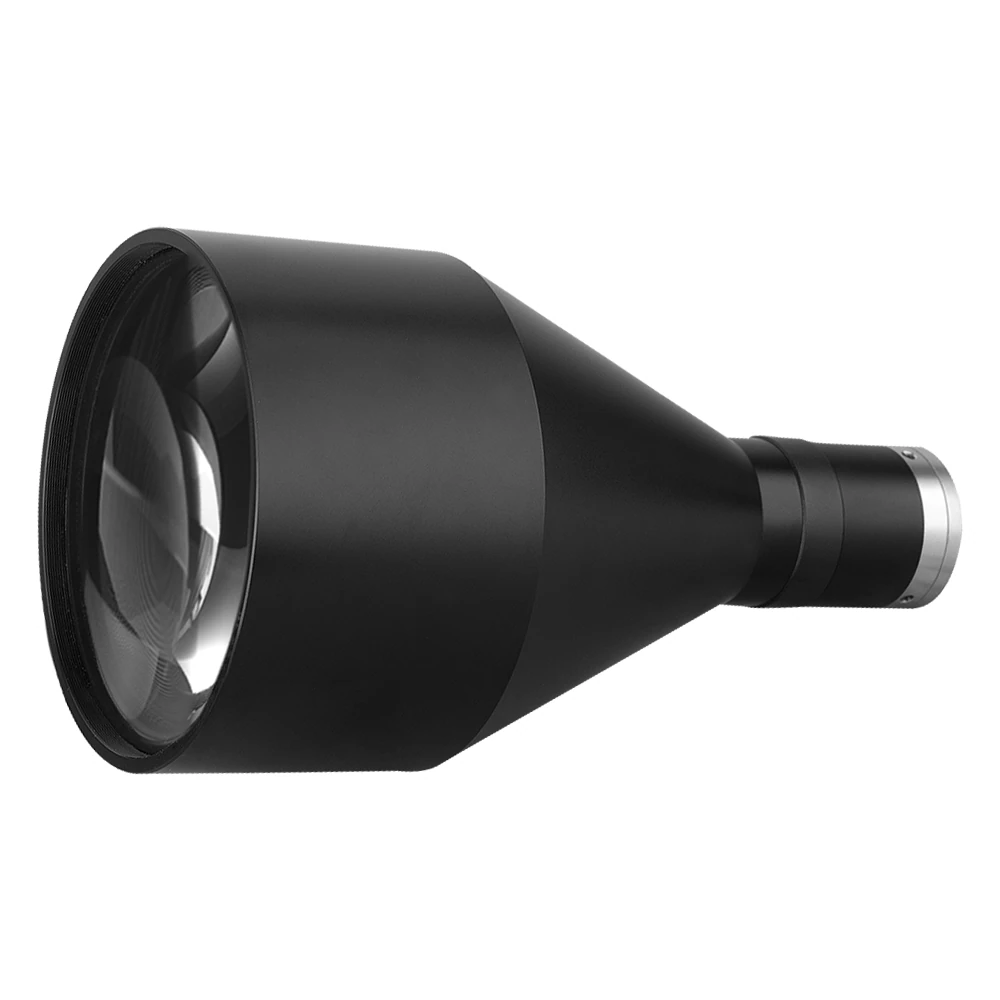

Bi-telecentric lens for 1/2.5" cameras (VCM125 series), 0.033x, WD 372 mm, 1/2.5", C-mount (LS-VCM125-216-AL)
Model LS-VCM125-216-AL
VCM Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Optimized for 1/2.5"~1.1" C-Mount cameras
- Large FOV from 26mm upto 300mm
- Excellent resolution for high pixel cameras
- Low distortion, good telecentricity,big aperture and big depth of field for high end application.
Specifications
| Model | LS-VCM125-216-AL |
|---|---|
| Max sensor size (dia. mm) | 7.2(1/2.5") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| Detector | 1/2.5" |
| Mag. | 0.033x |
| FOV | 216mm |
| WD | 372mm |
| Magnification(x) | 0.033 |
| Object Field of View (dia. mm) | 216 |
| Working Distance (mm) | 372±5 |
| Best Aperture (F/#) | 4.2 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.1 |
| MTF30 (lp/mm) | >210 |
| Depth of Field (mm) | ±404@F11 |
| Length of I/O (mm) | 884±5 |
| Field of view with 9P001/31 (5.7x4.28 sensor) (mm x mm) | 172.7x129.7 |
| Length (mm) | 494.2 |
| Weight (kg) | 13.7 |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 1/2.5" cameras (VCM125 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM125-26 | 0.277x, WD 73 mm, 1/2.5", C-mount | Price on request | 5 in stock | View |
| LS-VCM125-36-AL | 0.199x, WD 111 mm, 1/2.5", C-Mount | $1,169.00 | 4 in stock | View |
| LS-VCM125-36 | 0.2x, WD 110 mm, 1/2.5", C-mount | Price on request | 4 in stock | View |
| LS-VCM125-42-AL | 0.172x, WD 119 mm, 1/2.5", C-Mount | $1,279.00 | 2 in stock | View |
| LS-VCM125-42 | 0.171x, WD 118 mm, 1/2.5", C-mount | Price on request | 3 in stock | View |
| LS-VCM125-48-AL | 0.15x, WD 128 mm, 1/2.5", C-Mount | $1,379.00 | 5 in stock | View |
| LS-VCM125-48S-AL | 0.15x, WD 138 mm, 1/2.5", C-mount | Price on request | 4 in stock | View |
| LS-VCM125-48 | 0.15x, WD 128 mm, 1/2.5", C-mount | Price on request | 2 in stock | View |
| LS-VCM125-56-AL | 0.129x, WD 138 mm, 1/2.5", C-Mount | $1,519.00 | 4 in stock | View |
| LS-VCM125-64-AL | 0.113x, WD 187 mm, 1/2.5", C-Mount | $1,649.00 | 4 in stock | View |
| LS-VCM125-64P-AL | 0.112x, WD 159 mm, 1/2.5", C-Mount | $1,649.00 | 2 in stock | View |
| LS-VCM125-72-AL | 0.1x, WD 178 mm, 1/2.5", C-Mount | $1,789.00 | 3 in stock | View |
| LS-VCM125-80-AL | 0.09x, WD 229 mm, 1/2.5", C-Mount | $1,929.00 | 2 in stock | View |
| LS-VCM125-90-AL | 0.08x, WD 208 mm, 1/2.5", C-mount | Price on request | 2 in stock | View |
| LS-VCM125-100-AL | 0.077x, WD 254 mm, 1/2.5", C-Mount | $2,149.00 | 2 in stock | View |
| LS-VCM125-110-AL | 0.065x, WD 251 mm, 1/2.5", C-Mount | $2,459.00 | 5 in stock | View |
| LS-VCM125-120-AL | 0.06x, WD 280 mm, 1/2.5", C-mount | $2,609.00 | 5 in stock | View |
| LS-VCM125-136-AL | 0.053x, WD 288 mm, 1/2.5", C-Mount | $2,889.00 | 4 in stock | View |
| LS-VCM125-150-AL | 0.048x, WD 301 mm, 1/2.5", C-Mount | $3,129.00 | 4 in stock | View |
| LS-VCM125-170-AL | 0.042x, WD 318 mm, 1/2.5", C-Mount | $3,439.00 | 4 in stock | View |
| LS-VCM125-190-AL | 0.038x, WD 330 mm, 1/2.5", C-mount | $3,819.00 | 4 in stock | View |
| LS-VCM125-268-AL | 0.027x, WD 438 mm, 1/2.5", C-Mount | $4,179.00 | 4 in stock | View |
| LS-VCM125-300-AL | 0.024x, WD 465 mm, 1/2.5", C-Mount | $4,629.00 | 3 in stock | View |
| LS-VCM125-240-AL | 0.03x, WD 410 mm, 1/2.5", C-Mount | $4,669.00 | 5 in stock | View |
See all 26 models in the Bi-telecentric lens for 1/2.5" cameras (VCM125 series) series
