Telecentric lenses

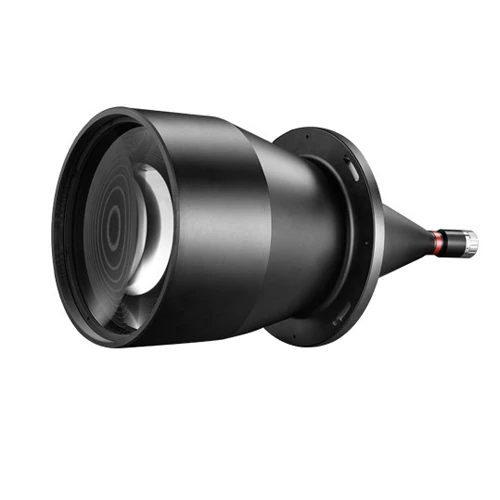

Bi-telecentric lens (VCM111B series), 0.076x, WD 410 mm, 1.1", C-mount (LS-VCM111B-240-AL)
Model LS-VCM111B-240-AL
Superior bi-telecentric design, distinguished imaging quality
Features
- Largest FOV from 26mm upto 300mm
- Optimized for 1/2.5"~1.1" C-Mount cameras
- Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Specifications
| Model | LS-VCM111B-240-AL |
|---|---|
| Mount | C |
| Detector | 1.1" |
| Mag. | 0.076x |
| FOV | 240mm |
| WD | 410mm |
| Magnification(x) | 0.076 |
| Object Field of View (dia. mm) | 240 |
| Working Distance (mm) | 410±5 |
| Max Sensor Size (dia. mm) | 18.4 1.1" |
| Best Aperture (F/#) | 6.18 |
| MTF30 (lp/mm) | >140 |
| Depth of Field (mm) | ±20 |
| Length of I/O (mm) | 1011.7 |
| Field of view with IMX304 (14.13x10.35 sensor) (mm x mm) | 185.9x136.1 |
| Length (mm) | 584.2 |
| Weightkg | 17.72 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens (VCM111B series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM111B-26-AL | 0.707x, WD 72 mm, 1.1", C-mount | $999.00 | 3 in stock | View |
| LS-VCM111B-36-AL | 0.509x, WD 111 mm, 1.1", C-mount | $1,169.00 | 2 in stock | View |
| LS-VCM111B-42P-AL | 0.437x, WD 118 mm, 1.1", C-mount | $1,279.00 | 5 in stock | View |
| LS-VCM111B-48-AL | 0.382x, WD 128 mm, 1.1", C-mount | $1,379.00 | 2 in stock | View |
| LS-VCM111B-64P-AL | 0.286x, WD 159 mm, 1.1", C-Mount | $1,399.00 | 2 in stock | View |
| LS-VCM111B-56-AL | 0.328x, WD 138 mm, 1.1", C-mount | $1,519.00 | 2 in stock | View |
| LS-VCM111B-80P-AL | 0.229x, WD 230 mm, 1.1", C-Mount | $1,609.00 | 4 in stock | View |
| LS-VCM111B-72-AL | 0.255x, WD 178 mm, 1.1", C-mount | $1,789.00 | 4 in stock | View |
| LS-VCM111B-110-AL | 0.165x, WD 251 mm, 1.1", C-Mount | $2,019.00 | 5 in stock | View |
| LS-VCM111B-90-AL | 0.204x, WD 208 mm, 1.1", C-mount | $2,099.00 | 4 in stock | View |
| LS-VCM111B-100P-AL | 0.185x, WD 238 mm, 1.1", C-mount | $2,269.00 | 2 in stock | View |
| LS-VCM111B-150-AL | 0.123x, WD 301 mm, 1.1", C-Mount | $2,519.00 | 2 in stock | View |
| LS-VCM111B-136-AL | 0.134x, WD 288 mm, 1.1", C-mount | $2,889.00 | 5 in stock | View |
| LS-VCM111B-170-AL | 0.108x, WD 318 mm, 1.1", C-mount | $3,469.00 | 5 in stock | View |
