Telecentric lenses

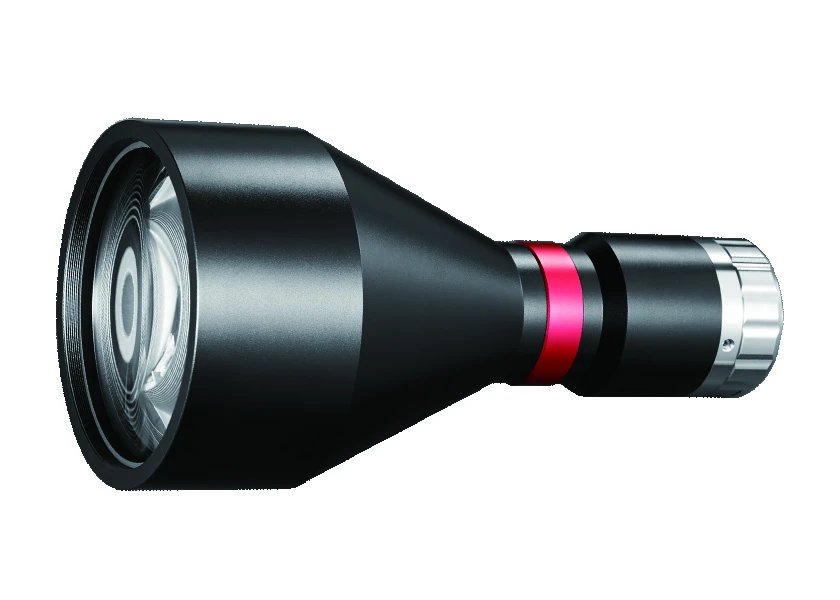

Bi-telecentric lens for 1" cameras (VCM110 series), 0.346x, WD 138 mm, 1", C-mount (LS-VCM110-48S-AL)
Model LS-VCM110-48S-AL
Bi-telecentric lens series for sensors up to 1" (16.6 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
- Optimized for 1/2.5"~1.1" C-Mount cameras
- Largest FOV from 26mm up to 300mm (series)
- Excellent resolution for high pixel cameras
- Low distortion, good telecentricity, big aperture and big depth of field for high end application
Specifications
| Model | LS-VCM110-48S-AL |
|---|---|
| Max sensor size (dia. mm) | 16.6(1") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| Detector | 1" |
| Magnification (x) | 0.346 |
| Object Field of View (dia. mm) | 48 |
| Working Distance (mm) | 138±3 |
| Best Aperture (F/#) | 9.8 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >90 |
| Depth of Field (mm) | ±5.5@F16 |
| Length of I/O (mm) | 296±3 |
| Field of view with KAI-04050 (12.85×9.64 sensor) (mm x mm) | 37.1x27.9 |
| Field of view with CMV4000 (11.26×11.26 sensor) (mm x mm) | 32.5x32.5 |
| Field of view with ICX674/694/814 (12.50×10.00 sensor) (mm x mm) | 36.1x28.9 |
| Length (mm) | 140.5 |
| Weight (kg) | 0.5 |
| Compatible telecentric led lighting | LS-VCL-48-XW-Y |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 1" cameras (VCM110 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM110-16.6 | 1x, WD 24 mm, 1", C-Mount | $839.00 | 2 in stock | View |
| LS-VCM110-26-AL | 0.641x, WD 72 mm, 1", C-Mount | $999.00 | 3 in stock | View |
| LS-VCM110-26 | 0.638x, WD 73 mm, 1", C-mount | Price on request | 4 in stock | View |
| LS-VCM110-36-AL | 0.461x, WD 111 mm, 1", C-Mount | $1,169.00 | 3 in stock | View |
| LS-VCM110-36 | 0.46x, WD 110 mm, 1", C-mount | Price on request | 4 in stock | View |
| LS-VCM110-42-AL | 0.396x, WD 119 mm, 1", C-Mount | $1,279.00 | 2 in stock | View |
| LS-VCM110-42 | 0.395x, WD 118 mm, 1" | Price on request | 3 in stock | View |
| LS-VCM110-42P-AL | 0.398x, WD 118 mm, 1", C-mount | $1,279.00 | 3 in stock | View |
| LS-VCM110-48-AL | 0.347x, WD 128 mm, 1", C-Mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-48 | 0.346x, WD 128 mm, 1", C-mount | Price on request | 4 in stock | View |
| LS-VCM110-56-AL | 0.298x, WD 138 mm, 1", C-Mount | $1,519.00 | 3 in stock | View |
| LS-VCM110-64-AL | 0.26x, WD 187 mm, 1", C-Mount | $1,649.00 | 5 in stock | View |
| LS-VCM110-64P-AL | 0.26x, WD 159 mm, 1", C-Mount | $1,649.00 | 2 in stock | View |
| LS-VCM110-72-AL | 0.231x, WD 178 mm, 1", C-Mount | $1,789.00 | 5 in stock | View |
| LS-VCM110-80-AL | 0.208x, WD 229 mm, 1", C-Mount | $1,929.00 | 3 in stock | View |
| LS-VCM110-80P-AL | 0.208x, WD 230 mm, 1", C-mount | $1,929.00 | 2 in stock | View |
| LS-VCM110-90-AL | 0.185x, WD 208 mm, 1", C-mount | $2,099.00 | 3 in stock | View |
| LS-VCM110-100-AL | 0.179x, WD 254 mm, 1", C-Mount | $2,149.00 | 2 in stock | View |
| LS-VCM110-100P-AL | 0.168x, WD 238 mm, 1", C-mount | $2,269.00 | 2 in stock | View |
| LS-VCM110-110-AL | 0.15x, WD 251 mm, 1", C-Mount | $2,459.00 | 4 in stock | View |
| LS-VCM110-120-AL | 0.138x, WD 280 mm, 1", C-mount | Price on request | 4 in stock | View |
| LS-VCM110-136-AL | 0.122x, WD 288 mm, 1", C-Mount | $2,889.00 | 3 in stock | View |
| LS-VCM110-150-AL | 0.111x, WD 301 mm, 1", C-Mount | $3,129.00 | 5 in stock | View |
| LS-VCM110-170-AL | 0.098x, WD 318 mm, 1", C-Mount | $3,459.00 | 3 in stock | View |
See all 28 models in the Bi-telecentric lens for 1" cameras (VCM110 series) series
