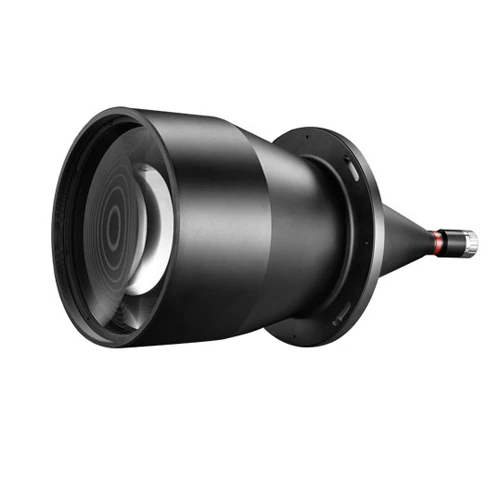

Bi-telecentric lens for 1" cameras (VCM110 series), 0.069x, WD 410 mm, 1", C-Mount (LS-VCM110-240-AL)
Model LS-VCM110-240-AL
Bi-telecentric lens series for sensors up to 1" (16.6 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
- Optimized for 1/2.5"~1.1" C-Mount cameras
- Largest FOV from 26mm up to 300mm (series)
- Excellent resolution for high pixel cameras
- Low distortion, good telecentricity, big aperture and big depth of field for high end application
Specifications
| Model | LS-VCM110-240-AL |
|---|---|
| Max sensor size (dia. mm) | 16.6(1") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| Detector | 1" |
| FOV (dia. mm) | 240 |
| Mag. (x) | 0.069 |
| WD (mm) | 410±5 |
| F/# | 6 |
| MTF30 (lp/mm) | >100 |
| DoF (mm) | ±26 |
| I/O (mm) | 999.8 |
| Length (mm) | 571 |
| Weight (kg) | 17.6 |
| Mount shown in drawing | C |
| Field of view on 1" KAI-04050(12.85x9.64) (mm) | 186.2 x 139.7 |
| Magnification (x) | 0.069 |
| Working distance (mm) | 410±5 |
| Depth of field (mm) | ±26 |
| Field of view on 1" KAI-04050(12.85x9.64) (mm x mm) | 186.2x139.7 |
| Field of view (dia. mm) | 240 |
| Object-to-image distance I/O (mm) | 999.8 |
| Field of view with 1" KAI-04050(12.85x9.64) (mm) | 186.2x139.7 |
| Model (spec table) | 110-240-AL |
| Mag | 0.069x |
| FOV | 240mm |
| WD | 410mm |
| Sensor format | 1" |
| Aperture | F/6 |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
