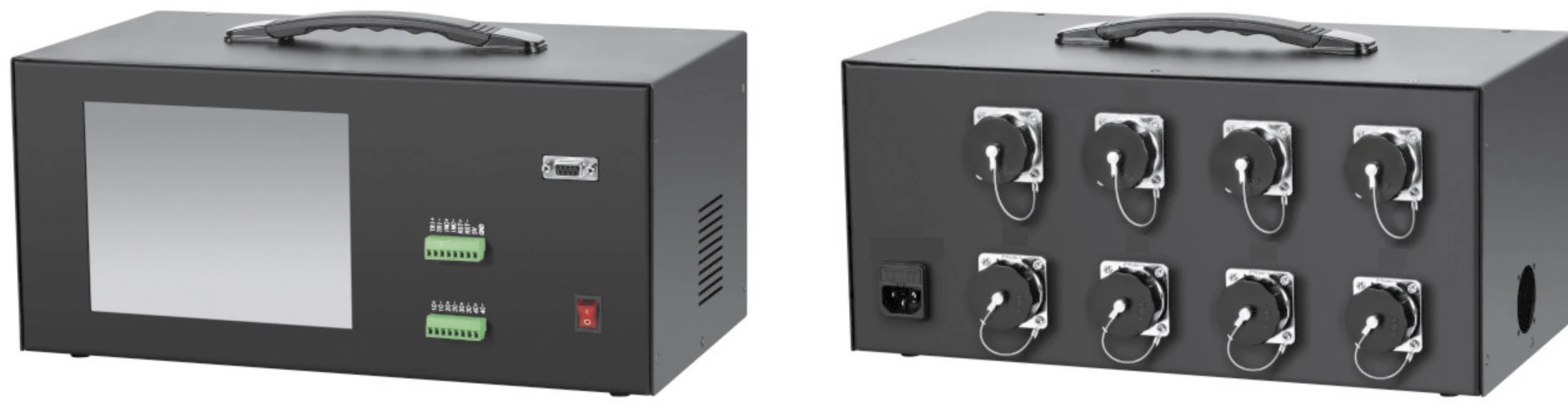

Time-division line-scan light controller (TPS series), 8 ch, 1500 W (LS-TPS481500B-8T)
Model LS-TPS481500B-8T
Time-division line-scan light controller: one trigger input can freely combine the 8 channels for output; screen display, RS232 communication, screw mounting and high-speed optocoupler trigger input with a maximum trigger delay of 500 ns.
Features
- One trigger input can freely combine the 8 channels for output
- Screen display, settings easy to confirm
- Communication: RS232
- Mounting: screw
- External trigger input with high-speed optocoupler design, maximum trigger delay 500ns
- Built-in 5V output, can supply a sensor
- 4 camera outputs with 5V differential signals, can trigger cameras directly
Specifications
| Model | LS-TPS481500B-8T |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Control mode | RS232 communication |
| Input voltage | AC100-240V 50/60Hz |
| Channels | 8 |
| Output voltage | DC 48V |
| Differential trigger voltage | 5V |
| Single-ended trigger voltage | C12V~24V (current about 5.6mA) (as printed) |
| Camera output voltage | 5V |
| Reset voltage | DC12V-24V |
| Total power | 1500W |
| Output port | dia.24 5-pin aviation connector |
| Trigger delay | <500ns |
| Cooling method | Forced cooling |
| Dimensions | 387.8 x 227.9 x 179 mm |
| Trigger port | TRI+/TRI- single-ended trigger input (DC12-24V, NPN or PNP); INC+/INC- differential trigger input (5V); RST+/RST- reset input (5-24V); 5V/GND 5V output; 1C+/1C- ... 4C+/4C- camera 1-4 outputs (5V differential) |
| Trigger timing | Reset signal held longer than 50μs; after reset the output restarts from the first combination |
| Panel | Display screen (settings), RS232 socket, trigger port, AC switch; rear: 8 light outputs (dia.24-5 pin aviation connector, each independently controlled), AC socket |
| Mounting | 4-M3 threads, depth 5 (remove the feet) |
| Drawing dimensions (mm) | 383 W (330 + 26.5 base) x 179 H (173 body) x 205 D (227.9 overall); rear 387.8 wide |
| Total output (W) | 1500 |
| Shipping weight | 4.20 kg |
Applications
- Time-division (multi-light, sequential) line-scan imaging with the time-division line-scan lights
