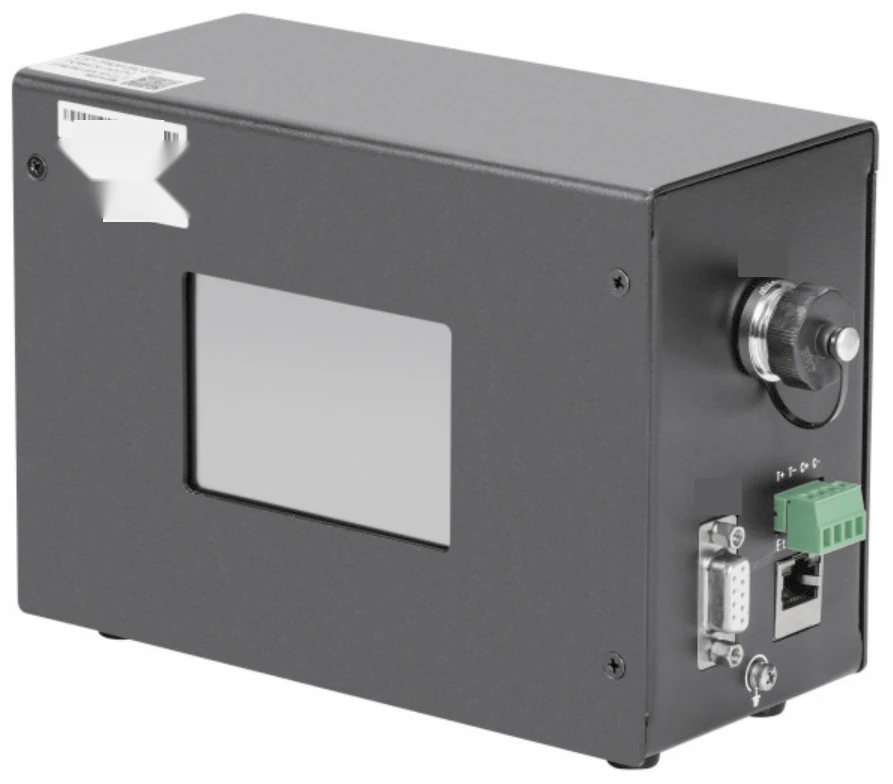

Multi-channel sequencing light controller (TPS series), 8 ch, 120 W (LS-TPS24120C-8TD)
Model LS-TPS24120C-8TD
Multi-channel sequencing light controller: lights CH1 to CH8 in sequence and outputs a synchronized camera signal; external, internal and soft trigger modes; each output channel can be switched on or off individually; RS232 / Ethernet with PC software for remote control; screw or DIN rail mounting.
Features
- Lights CH1->CH8 in sequence and outputs the camera signal synchronously
- Three trigger modes: external trigger, internal trigger, soft trigger
- Each output channel can be enabled or disabled individually
- RS232 / Ethernet communication with PC software, remote control possible
- Mounting: screw or DIN rail
- Camera signal output 12V, no external power needed
Specifications
| Model | LS-TPS24120C-8TD |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Light control mode | 0-255 level PWM control; touch screen / RS232 / Ethernet |
| Strobe pulse width | 0~999 ms (1ms steps) |
| PWM frequency | 141KHz |
| Input voltage | AC100-240V 50/60Hz |
| Channels | 8 |
| Output voltage | DC 24V |
| Max output current | 5A |
| Total power | 120W |
| Output port | dia.16 9-pin aviation connector (1: 24V+ 2: L1- 3: L2- 4: L3- 5: L4- 6: L5- 7: L6- 8: L7- 9: L8-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <10μs |
| Cooling method | Forced cooling |
| Trigger port | T+ / T- external trigger input; C+ / C- camera trigger signal output (DV12V as printed, i.e. 12 V, no external power needed); optocoupler isolated, NPN or PNP |
| Panel | Ethernet port, output port, RS232 socket, trigger port, FG (chassis ground) terminal, AC socket and switch, fan |
| Trigger timing example | Internal trigger, period 10ms, light-on time 1ms, camera rising-edge trigger, camera output delay 100us, camera signal pulse width 500us |
| Mounting | Screw or C45 DIN rail 35 |
| Drawing dimensions (mm) | 87.75 W (79.5 / 44.5) x 126 H (120 body) x 170 D (140; 11.5 front, 3.4 rear) |
| Total output (W) | 120 |
| Shipping weight | 0.90 kg |
