Telecentric lenses

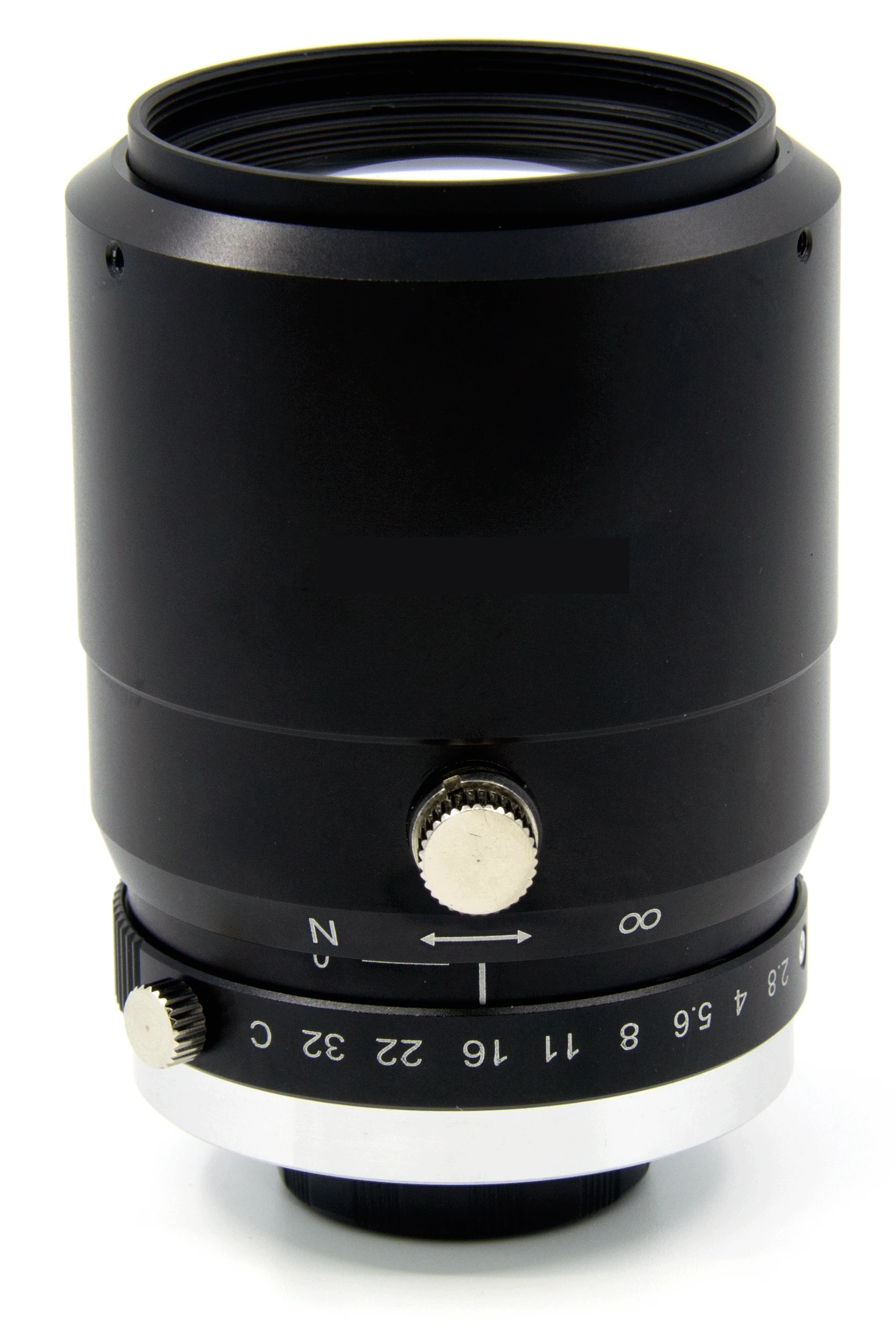

Telecentric zoom lens for 2/3" sensor (TG series), WD 120 mm, 2/3", C-mount (LS-TG55X23)
Model LS-TG55X23
Telecentric zoom lens with variable magnification 0-0.5X and adjustable aperture for 2/3" (dia. 11 mm) cameras, ultra-low-distortion telecentric optical path and a horizontal pull-pull structure.
Features
- Variable magnification to meet different sizes of product shooting
- Adjustable aperture to meet depth of field requirements
- Maximum support for 2/3" dia. 11 mm target camera
- Excellent ultra-low distortion design of telecentric optical path
- Lightweight and targeted structural design for stable high-speed movement
- Horizontal pull-pull structure
- 5 mega-pixel
- Super depth of field design
Specifications
| Model | LS-TG55X23 |
|---|---|
| Resolution | 5 mega-pixel |
| Mount | C |
| Magnification (X) | 0-0.5 |
| Working distance (mm) | 120-infinity |
| Iris (F) | F2.8 |
| Filter screw size | M43 P=0.75mm |
| Sensor size | 2/3" dia.11mm |
| Service temperature | 20°C~+60°C |
| Weight | 330g |
| Sensor format | 2/3" |
| Aperture | F2.8 |
Applications
- Shooting products of different sizes
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
