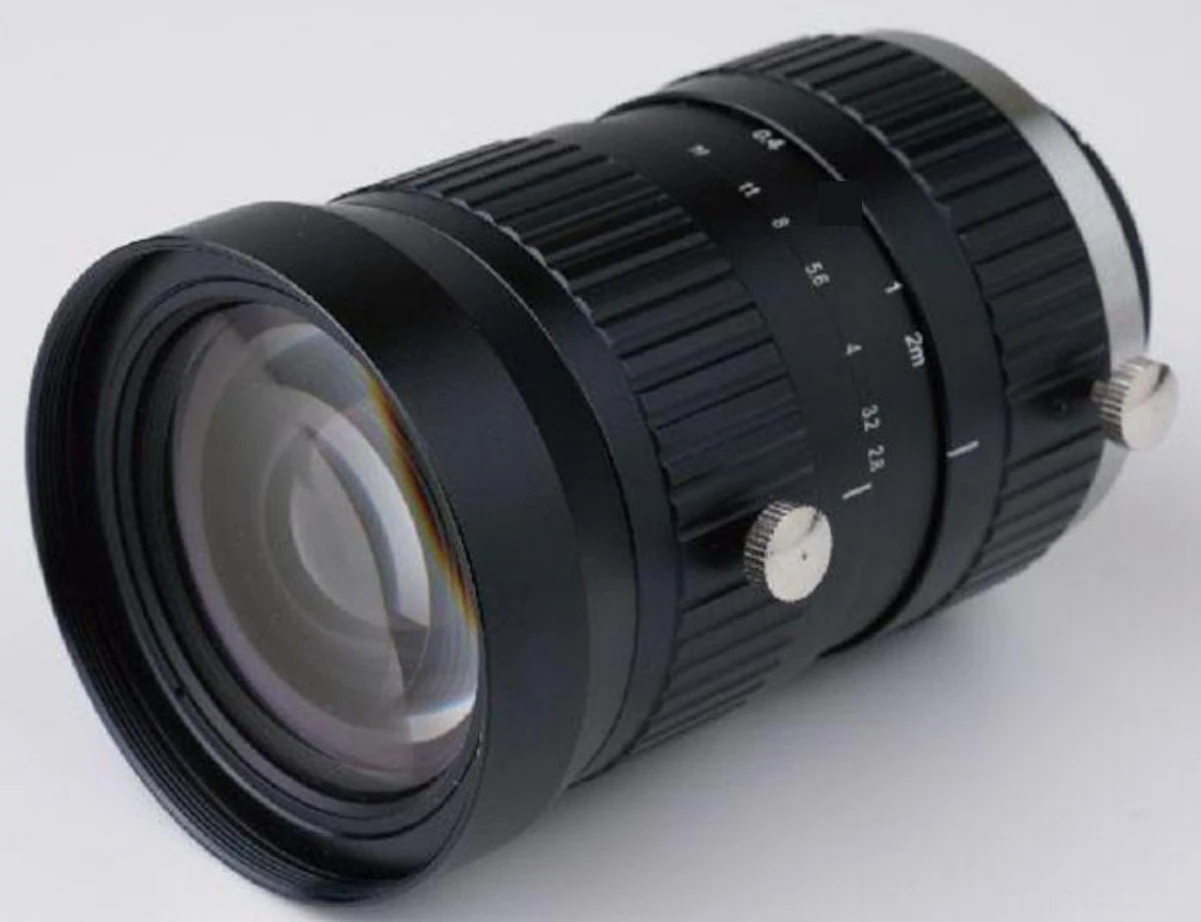

3CCD lens, 28 mm, F-Mount (LS-TD2803A)
Model LS-TD2803A
Lens designed for 3CCD cameras, redefining colour reproduction; WD from 0.4 m to 2 m, max image circle dia. 30, low full-field distortion <0.2%; for projects with high requirements on colour such as sorting.
Features
- Designed for 3CCD camera redefining color reduction
- WD from 0.4m-2m
- Max image circle dia. 30
- Low distortion full field distortion <0.2%
- Applied to projects with high requirements on color such as sorting, etc.
Specifications
| Model | LS-TD2803A |
|---|---|
| Focal length | 28mm |
| F/NO | 2.8-16 |
| Mount | F-Mount |
| Distortion | <0.2% |
| EFL | 28mm |
| Image size (dia.) | dia. 30 |
| Optical magnification | 0.01X-0.14X |
| Flange distance | 46.5 |
| Distortion (TV) | <0.2% |
| Working distance | 0.4m-2m |
| Filter size | M62×P0.75 |
| Sensor format | dia. 30 mm image circle |
| Aperture | F2.8-16 |
| Shipping weight | 0.38 kg |
Applications
- Electronic equipment: colour discrimination - identify the colour difference of the battery
- Textile: colour discrimination - non-woven product colour inspection
- Food: colour discrimination - food grain colour screening
- Electronic component: colour discrimination - measure colour phase, chroma, brightness, etc.
