Telecentric lenses

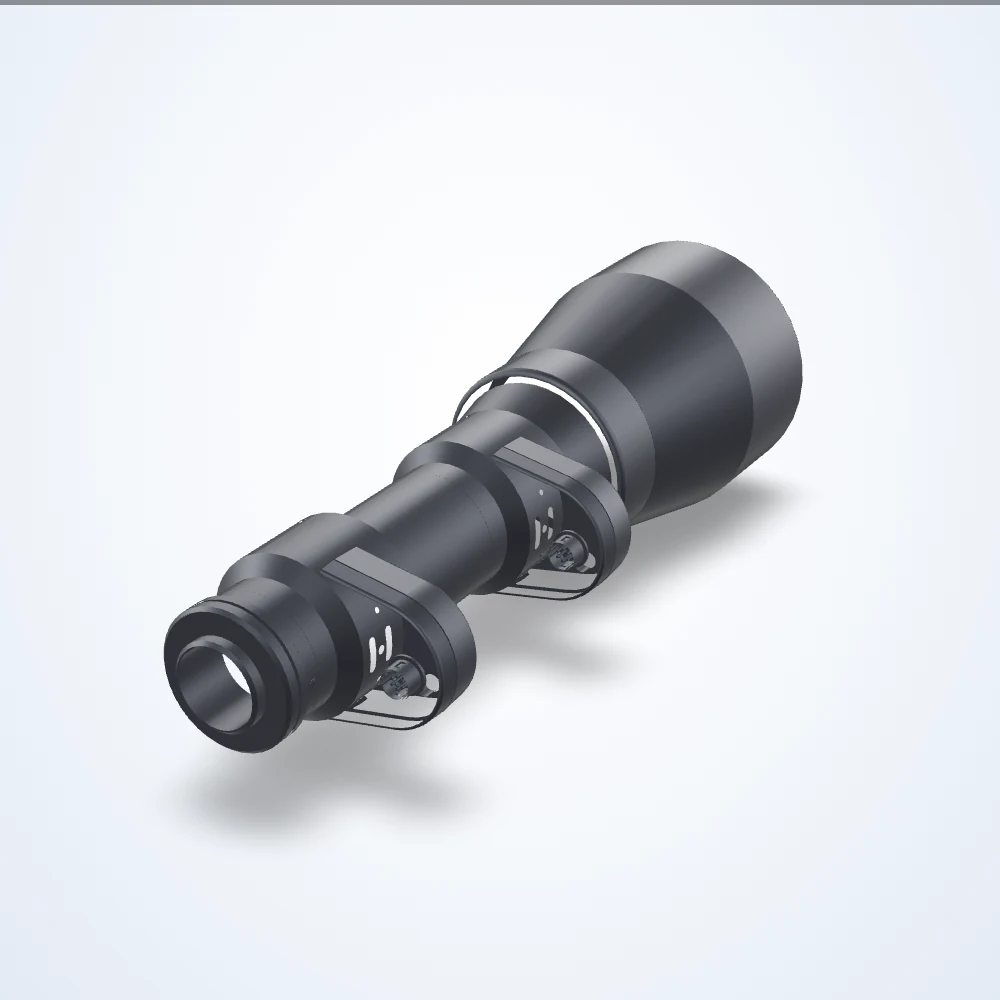

0.18 - 0.55× telecentric lens, 2/3", C-mount (LS-TCL-0448)
Model LS-TCL-0448
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: hr10a-7r-6pbc; working distance 15 mm - 155 mm; depth of field 14.4 mm.
Specifications
| Model | LS-TCL-0448 |
|---|---|
| Magnification | 0.18 - 0.55× |
| Working distance | 15 mm - 155 mm |
| Sensor format | 2/3" |
| Mount | C-mount |
| Depth of field | 14.4 mm |
| Connector | HR10A-7R-6PBc |
| Current range | 500 to +500 mA |
| Dimensions approximate | 249.3 x 80 x 80 mm |
| Distortion typical (%) | < 0.3 |
| Filter thread | No Filter Threads |
| Focal power mode | Yes |
| FOV @ 1/1.8″ | 39.61 x 29.61 |
| Fov @ 1/2.0″ | 35.56 x 26.67 mm 11.64 x 8.73 mm |
| Fov @ 1/2.5″ | 31.67 x 23.78 mm - 10.36 x 7.78 mm |
| FOV @ 1/2″ | 35.56 x 26.67 mm 11.64 x 8.73 mm |
| Fov @ 1/3.0″ | 026.67 x 020.00 mm - 008.73 x 006.55 mm |
| FOV @ 2/3″ | 47.22 x 39.39 mm 15.45 x 12.89 mm |
| Front diameter | 80 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| Lens type | Telecentric |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | liquid lens |
| Magnification ratio | 3x |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Repeatability using focal power mode (dpt) | ±0.05 (small steps); ±0.1 (large steps) (dpt) |
| Resolution (pixel size) | 18 μm |
| Response time | 5 Milliseconds |
| Setting time | 25 Milliseconds |
| Storage temperature range | 0 to 50°C |
| Telecentricity typical | < 0.3° |
| Working ƒ/n | f/16 |
| Weight | 967 Grams |
