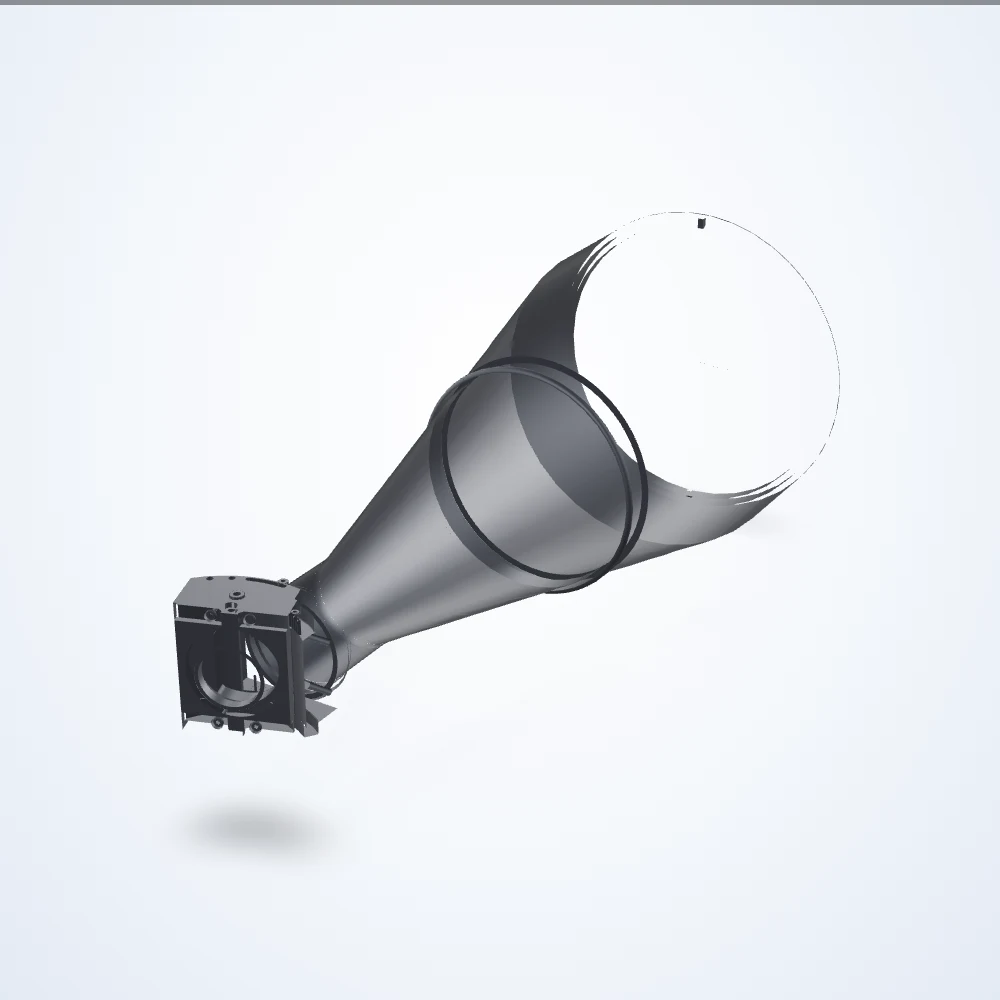

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.066× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0447)
Model LS-TCL-0447
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm.
Specifications
| Model | LS-TCL-0447 |
|---|---|
| Magnification | 0.066× Vertical |
| Working distance | 278.6 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Dimensions approximate | 336.6 x 143 x 143 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov detector long side horizontal @ 1/1.8″ | 076.67 x 57.31 mm - 76.67 x 59.22 mm - 76.67 x 65.80 mm - 76.67 x 80.76 |
| Fov detector long side horizontal @ 1/2.0″ | 68.82 x 51.61 - 68.82 x 53.33 - 68.82 x 59.26 - 68.82 x 72.73 |
| Fov detector long side horizontal @ 1/2.5″ | 61.29 x 46.02 - 61.29 x 47.56 - 61.29 x 52.84 - 61.29 x 64.85 |
| Fov detector long side horizontal @ 1/2″ | 68.82 x 51.61 68.82 x 53.33 68.82 x 59.26 68.82 x 72.73 |
| Fov detector long side horizontal @ 1/3.0″ | 51.61 x 38.71 mm - 51.61 x 40.00 mm - 51.61 x 44.44 mm - 51.61 x 54.55 mm |
| Fov detector long side horizontal @ 1/3″ | 51.61 x 38.71 mm 51.61 x 40.00 mm 51.61 x 44.44 mm 51.61 x 54.55 mm |
| Fov detector long side horizontal @ 2/3.0″ | 91.40 x 76.24 mm - 91.40 x 78.78 mm - 91.40 x 87.53 mm - 91.40 x 107.42 mm |
| Fov detector long side horizontal @ 2/3″ | 91.40 x 76.24 mm 91.40 x 78.78 mm 91.40 x 87.53 mm 91.40 x 107.42 mm |
| Fov detector long side vertical @ 1/1.8″ | 51.61 x 46.02 mm - 53.33 x 46.02 mm - 59.26 x 46.02 mm - 72.73 x 46.02 |
| Fov detector long side vertical @ 1/2.0″ (mm) | 51.61 x 68.82 |
| Fov detector long side vertical @ 1/2.5″ | 46.02 x 61.29 - 46.02 x 63.33 - 46.02 x 70.37 - 46.02 x 86.36 |
| Fov detector long side vertical @ 1/2″ | 51.61 x 68.82 51.61 x 71.11 51.61 x 79.01 51.61 x 96.97 |
| Fov detector long side vertical @ 1/3.0″ | 38.71 x 51.61 - 38.71 x 53.33 - 38.71 x 59.26 - 38.71 x 72.73 |
| Fov detector long side vertical @ 1/3″ | 38.71 x 51.61 mm 38.71 x 53.33 mm 38.71 x 59.26 mm 38.71 x 72.73 mm |
| Fov detector long side vertical @ 2/3″ | 76.24 x 91.40 mm - 76.24 x 94.44 mm - 76.24 x 104.94 mm - 76.24 x 128.79 mm |
| Front diameter | 143 mm |
| Horizontal magnification | 0.093 0.093 0.093 0.093 |
| Lens type | Telecentric |
| Mount tilt | 0 ° 1.4 ° 3.1 ° 5.3 ° |
| Mount tilt maximum | 20 ° |
| Object tilt | 0 ° 15 ° 30 ° 45 ° |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Vertical magnification | 0.093 0.090 0.081 0.066 |
| Working ƒ/n | f/8 |
| Weight | 2359 Grams |
