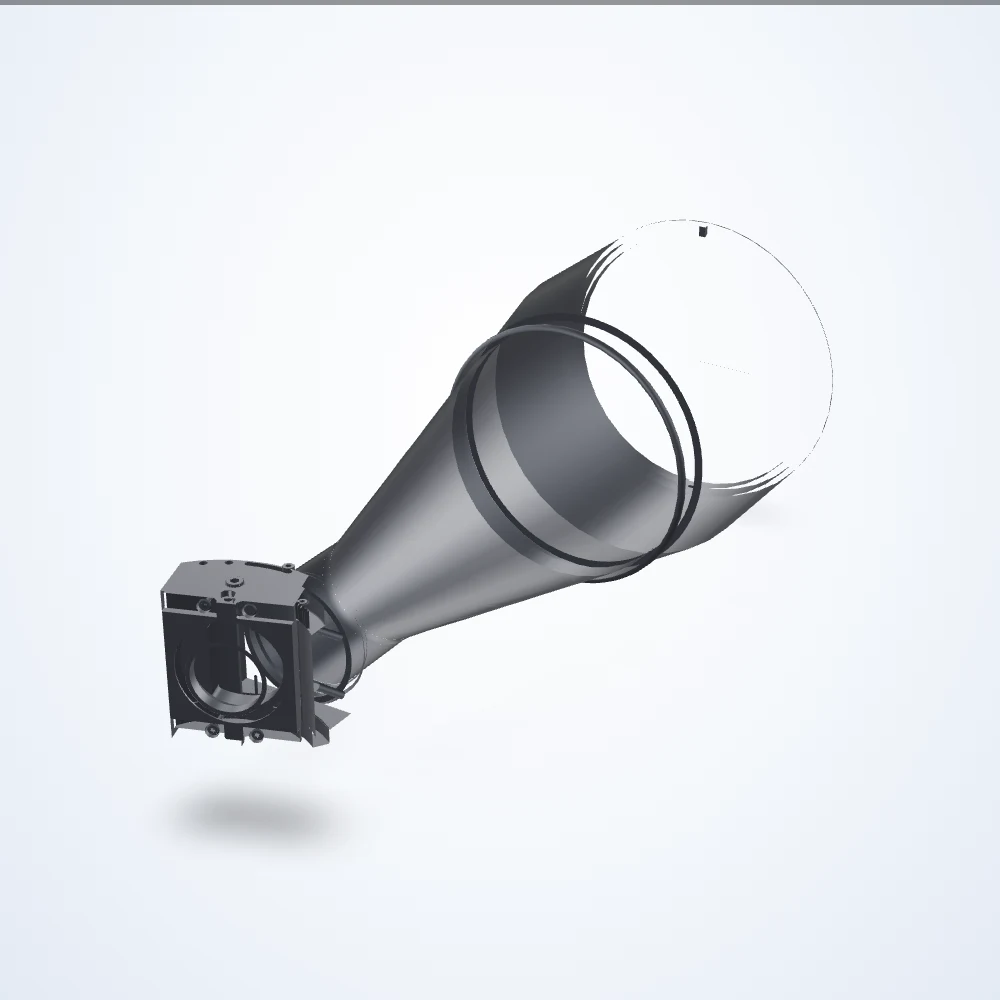

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.078× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0446)
Model LS-TCL-0446
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.7 mm.
Specifications
| Model | LS-TCL-0446 |
|---|---|
| Magnification | 0.078× Vertical |
| Working distance | 226.7 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Dimensions approximate | 291.2 x 116 x 116 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.02 |
| Filter thread | No Filter Threads |
| Fov detector long side horizontal @ 1/1.8″ | 064.82 x 48.45 mm - 64.82 x 50.28 mm - 64.82 x 56.11 mm - 64.82 x 68.33 |
| Fov detector long side horizontal @ 1/2.0″ | 58.18 x 43.64 - 58.18 x 45.28 - 58.18 x 50.53 - 58.18 x 61.54 |
| Fov detector long side horizontal @ 1/2.5″ | 51.82 x 38.91 - 51.82 x 40.38 - 51.82 x 45.05 - 51.82 x 54.87 |
| Fov detector long side horizontal @ 1/2″ | 58.18 x 43.64 58.18 x 45.28 58.18 x 50.53 58.18 x 61.54 |
| Fov detector long side horizontal @ 1/3.0″ | 43.64 x 32.73 mm - 43.64 x 33.96 mm - 43.64 x 37.89 mm - 43.64 x 46.15 mm |
| Fov detector long side horizontal @ 1/3″ | 43.64 x 32.73 mm 43.64 x 33.96 mm 43.64 x 37.89 mm 43.64 x 46.15 mm |
| Fov detector long side horizontal @ 2/3.0″ | 77.27 x 64.45 mm - 77.27 x 66.89 mm - 77.27 x 74.63 mm - 77.27 x 90.90 mm |
| Fov detector long side horizontal @ 2/3″ | 77.27 x 64.45 mm 77.27 x 66.89 mm 77.27 x 74.63 mm 77.27 x 90.9 mm |
| Fov detector long side vertical @ 1/1.8″ | 43.64 x 38.91 mm - 45.28 x 38.91 mm - 50.53 x 38.91 mm - 61.54 x 38.91 |
| Fov detector long side vertical @ 1/2.0″ (mm) | 43.64 x 58.18 |
| Fov detector long side vertical @ 1/2.5″ | 38.91 x 51.82 - 38.91 x 53.77 - 38.91 x 60.00 - 38.91 x 73.08 |
| Fov detector long side vertical @ 1/2″ | 43.64 x 58.18 43.64 x 60.38 43.64 x 67.37 43.64 x 82.05 |
| Fov detector long side vertical @ 1/3.0″ | 32.73 x 43.64 - 32.73 x 45.28 - 32.73 x 50.53 - 32.73 x 61.54 |
| Fov detector long side vertical @ 1/3″ | 32.73 x 43.64 mm 32.73 x 45.28 mm 32.73 x 50.53 mm 32.73 x 61.54 mm |
| Fov detector long side vertical @ 2/3″ | 64.45 x 77.27 mm - 64.45 x 80.19 mm - 64.45 x 89.47 mm - 64.45 x 108.97 mm |
| Front diameter | 116 mm |
| Horizontal magnification | 0.110 0.110 0.110 0.110 |
| Lens type | Telecentric |
| Mount tilt | 0 ° 1.7 ° 3.6 ° 6.3 ° |
| Mount tilt maximum | 20 ° |
| Object tilt | 0 ° 15 ° 30 ° 45 ° |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.04° |
| Vertical magnification | 0.110 0.106 0.095 0.078 |
| Working ƒ/n | f/8 |
| Weight | 1555 Grams |
