Telecentric lenses

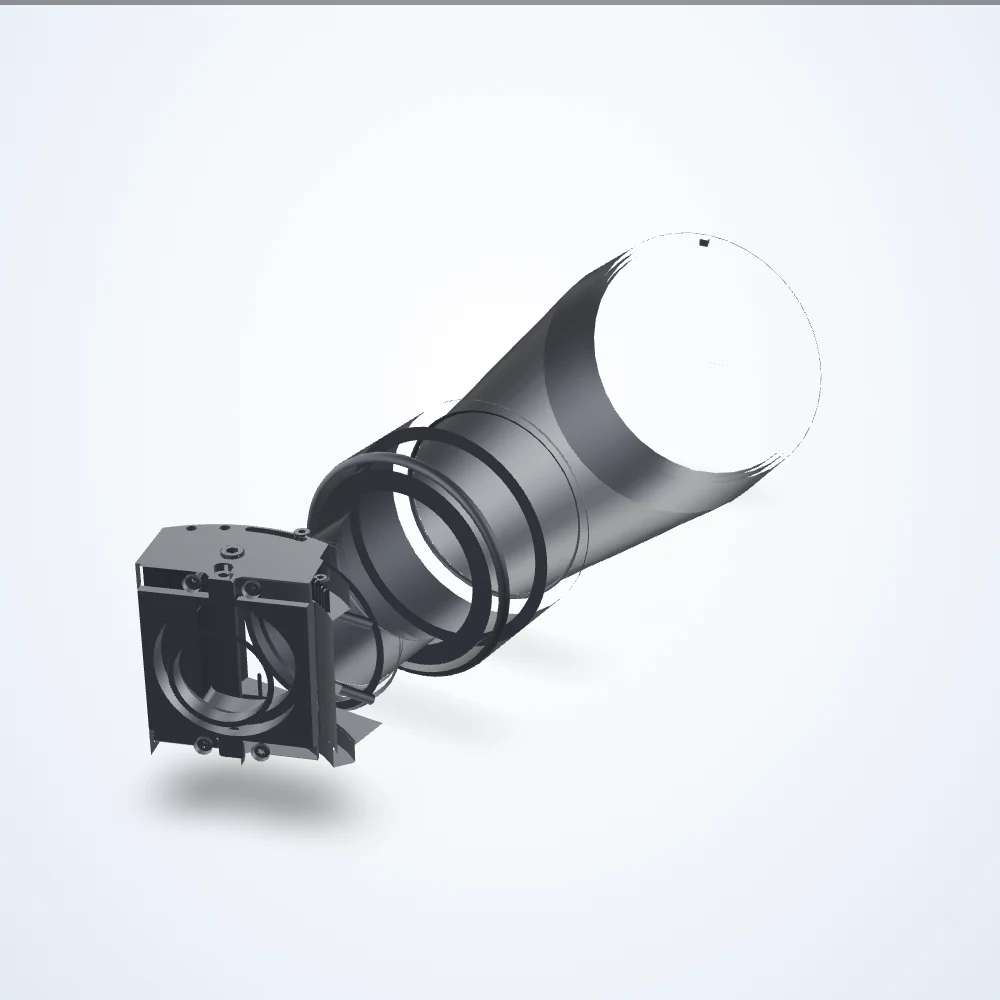

0.112× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0444)
Model LS-TCL-0444
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm.
Specifications
| Model | LS-TCL-0444 |
|---|---|
| Magnification | 0.112× Vertical |
| Working distance | 157.8 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Dimensions approximate | 224.4 x 80 x 80 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Fov detector long side horizontal @ 1/1.8″ | 040.76 x 30.57 mm - 40.76 x 31.58 mm - 40.76 x 35.04 mm - 40.76 x 42.86 |
| Fov detector long side horizontal @ 1/2.0″ | 40.76 x 30.57 - 40.76 x 31.58 - 40.76 x 35.04 - 40.76 x 42.86 |
| Fov detector long side horizontal @ 1/2.5″ | 36.31 x 27.26 - 36.31 x 28.16 - 36.31 x 31.24 - 36.31 x 38.21 |
| Fov detector long side horizontal @ 1/2″ | 40.76 x 30.57 40.76 x 31.58 40.76 x 35.04 40.76 x 42.86 |
| Fov detector long side horizontal @ 1/3.0″ | 30.57 x 22.93 mm - 30.57 x 23.68 mm - 30.57 x 26.28 mm - 30.57 x 32.14 mm |
| Fov detector long side horizontal @ 1/3″ | 30.57 x 22.93 mm 30.57 x 23.68 mm 30.57 x 26.28 mm 30.57 x 32.14 mm |
| Fov detector long side horizontal @ 2/3.0″ | 54.14 x 45.16 mm - 54.14 x 46.64 mm - 54.14 x 51.75 mm - 54.14 x 63.30 mm |
| Fov detector long side horizontal @ 2/3″ | 54.14 x 45.16 mm 54.14 x 46.64 mm 54.14 x 51.75 mm 54.14 x 63.3 mm |
| Fov detector long side vertical @ 1/1.8″ | 30.57 x 27.26 mm - 31.58 x 27.26 mm - 35.04 x 27.26 mm - 42.86 x 27.26 |
| Fov detector long side vertical @ 1/2.0″ (mm) | 30.57 x 40.76 |
| Fov detector long side vertical @ 1/2.5″ | 27.26 x 36.31 - 27.26 x 37.5 - 27.26 x 41.61 - 27.26 x 50.89 |
| Fov detector long side vertical @ 1/2″ | 30.57 x 40.76 30.57 x 42.11 30.57 x 46.72 30.57 x 57.14 |
| Fov detector long side vertical @ 1/3.0″ | 22.93 x 30.57 mm - 22.93 x 31.58 mm - 22.93 x 35.04 mm - 22.93 x 42.86 mm |
| Fov detector long side vertical @ 1/3″ | 22.93 x 30.57 mm 22.93 x 31.58 mm 22.93 x 35.04 mm 22.93 x 42.86 mm |
| Fov detector long side vertical @ 2/3″ | 45.16 x 54.14 mm - 45.16 x 55.92 mm - 45.16 x 62.04 mm - 45.16 x 75.89 mm |
| Front diameter | 80 mm |
| Horizontal magnification | 0.157 0.157 0.157 0.157 |
| Lens type | Telecentric |
| Mount tilt | 0 ° 2.4 ° 5.1 ° 8.8 ° |
| Mount tilt maximum | 20 ° |
| Object tilt | 0 ° 15 ° 30 ° 45 ° |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Vertical magnification | 0.157 0.152 0.137 0.112 |
| Working ƒ/n | f/8 |
| Weight | 1021 Grams |
