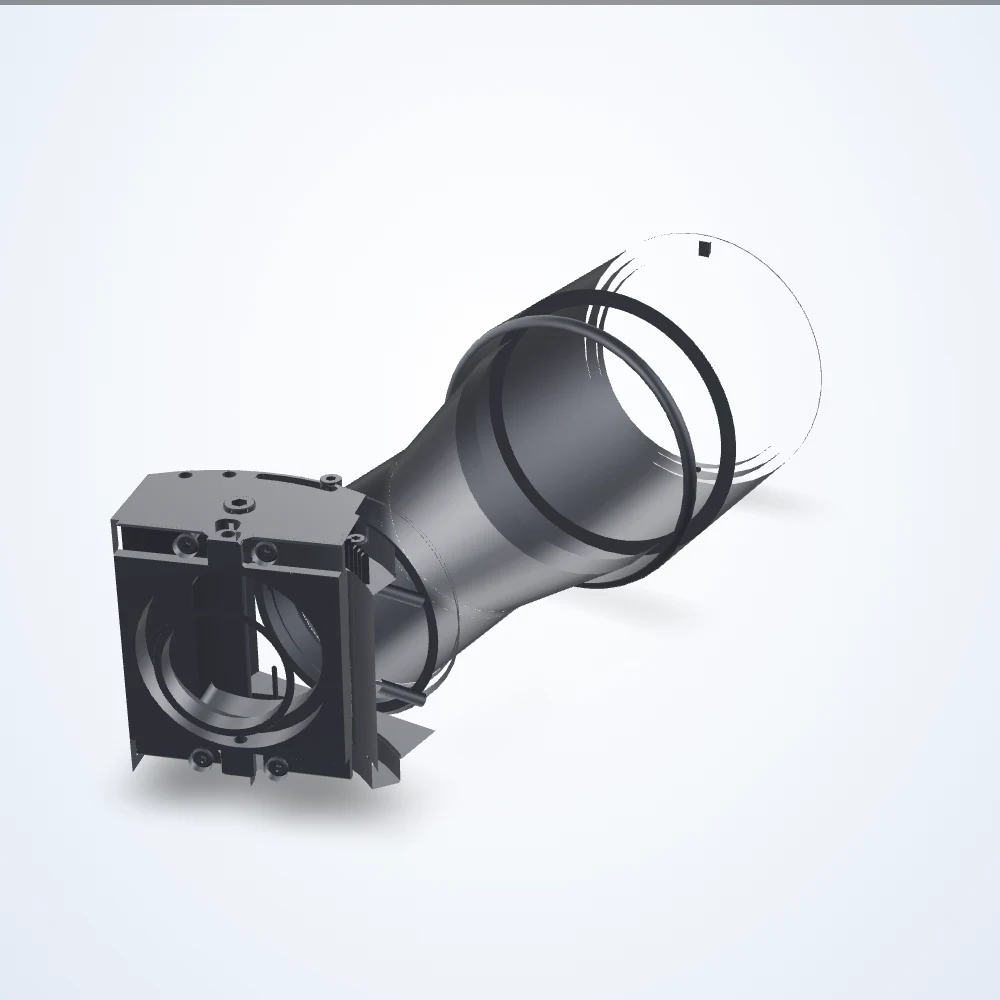

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.177× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0442)
Model LS-TCL-0442
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.5 mm.
Specifications
| Model | LS-TCL-0442 |
|---|---|
| Magnification | 0.177× Vertical |
| Working distance | 102.5 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Dimensions approximate | 164.9 x 61 x 61 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov detector long side horizontal @ 1/1.8″ | 029.34 x 21.93 mm - 29.34 x 22.68 mm - 29.34 x 25.14 mm - 29.34 x 30.11 |
| Fov detector long side horizontal @ 1/2.0″ | 26.34 x 19.75 - 26.34 x 20.43 - 26.34 x 22.64 - 26.34 x 27.12 |
| Fov detector long side horizontal @ 1/2.5″ | 23.46 x 17.61 - 23.46 x 18.21 - 23.46 x 20.19 - 23.46 x 24.18 |
| Fov detector long side horizontal @ 1/2″ | 26.34 x 19.75 26.34 x 20.43 26.34 x 22.64 26.34 x 27.12 |
| Fov detector long side horizontal @ 1/3.0″ | 19.75 x 14.81 mm - 19.75 x 15.32 mm - 19.75 x 16.98 mm - 19.75 x 20.34 mm |
| Fov detector long side horizontal @ 1/3″ | 19.75 x 14.81 mm 19.75 x 15.32 mm 19.75 x 16.98 mm 19.75 x 20.34 mm |
| Fov detector long side horizontal @ 2/3.0″ | 34.98 x 29.18 mm - 34.98 x 30.17 mm - 34.98 x 33.44 mm - 34.98 x 40.06 mm |
| Fov detector long side horizontal @ 2/3″ | 34.98 x 29.18 mm 34.98 x 30.17 mm 34.98 x 33.44 mm 34.98 x 40.06 mm |
| Fov detector long side vertical @ 1/1.8″ | 19.75 x 17.61 mm - 20.43 x 17.61 mm - 22.64 x 17.61 mm - 27.12 x 17.61 |
| Fov detector long side vertical @ 1/2.0″ (mm) | 19.75 x 26.34 |
| Fov detector long side vertical @ 1/2.5″ | 17.61 x 23.46 - 17.61 x 24.26 - 17.61 x 26.89 - 17.61 x 32.20 |
| Fov detector long side vertical @ 1/2″ | 19.75 x 26.34 19.75 x 27.23 19.75 x 30.19 19.75 x 36.16 |
| Fov detector long side vertical @ 1/3.0″ | 14.81 x 19.75 mm - 14.81 x 20.43 mm - 14.81 x 22.64 mm - 14.81 x 27.12 mm |
| Fov detector long side vertical @ 1/3″ | 14.81 x 19.75 mm 14.81 x 20.43 mm 14.81 x 22.64 mm 14.81 x 27.12 mm |
| Fov detector long side vertical @ 2/3″ | 29.18 x 34.98 mm - 29.18 x 36.17 mm - 29.18 x 40.09 mm - 29.18 x 48.02 mm |
| Front diameter | 61 mm |
| Horizontal magnification | 0.243 0.243 0.243 0.243 |
| Lens type | Telecentric |
| Mount tilt | 0 ° 3.7 ° 8 ° 13.6 ° |
| Mount tilt maximum | 20 ° |
| Object tilt | 0 ° 15 ° 30 ° 45 ° |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.04° |
| Vertical magnification | 0.243 0.235 0.212 0.177 |
| Working ƒ/n | f/8 |
| Weight | 607 Grams |
