Telecentric lenses

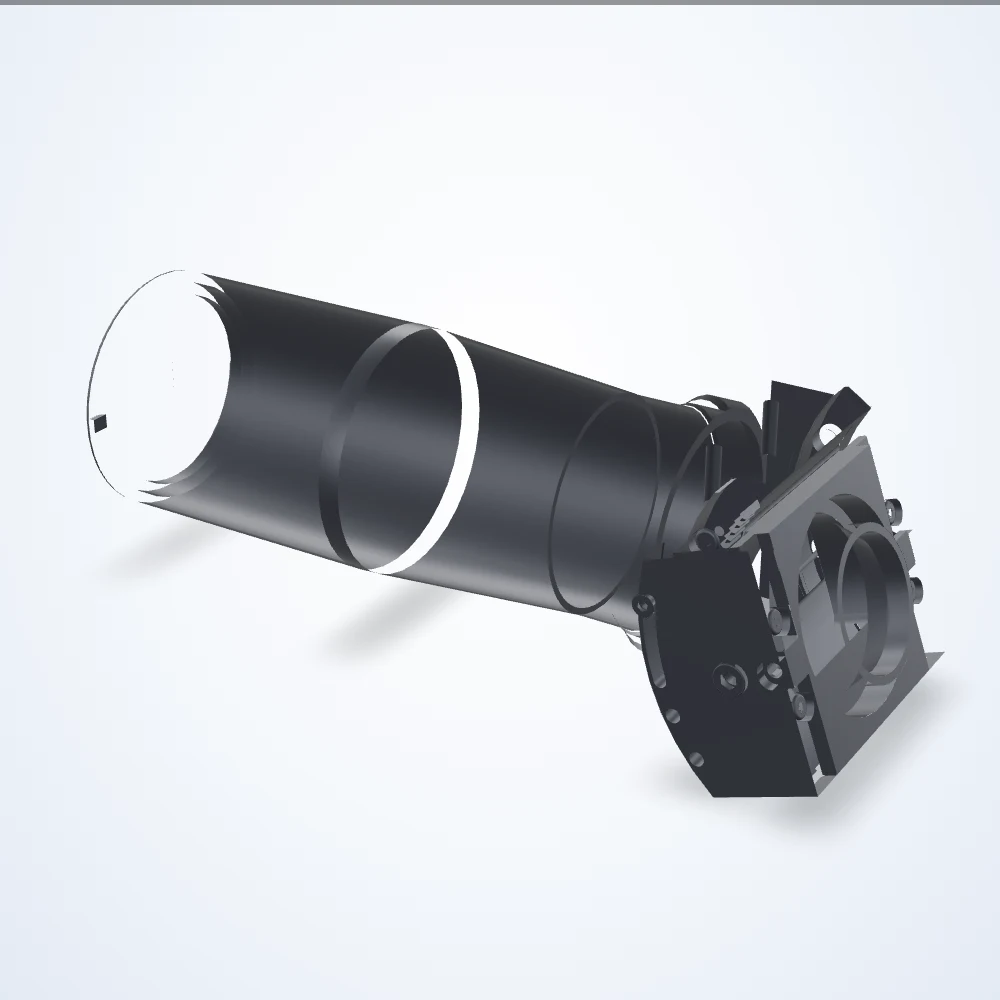

0.262× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0441)
Model LS-TCL-0441
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 67.2 mm.
Specifications
| Model | LS-TCL-0441 |
|---|---|
| Magnification | 0.262× Vertical |
| Working distance | 67.2 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Dimensions approximate | 137.5 x 44 x 44 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov detector long side horizontal @ 1/1.8″ | 020.37 x 15.23 mm - 20.37 x 15.68 mm - 20.37 x 17.25 mm - 20.37 x 20.34 |
| Fov detector long side horizontal @ 1/2.0″ | 18.29 x 13.71 - 18.29 x 14.12 - 18.29 x 15.53 - 18.29 x 18.32 |
| Fov detector long side horizontal @ 1/2.5″ | 16.29 x 12.23 - 16.29 x 12.59 - 16.29 x 13.85 - 16.29 x 16.34 |
| Fov detector long side horizontal @ 1/2″ | 18.29 x 13.71 18.29 x 14.12 18.29 x 15.53 18.29 x 18.32 |
| Fov detector long side horizontal @ 1/3.0″ | 13.71 x 10.29 mm - 13.71 x 10.59 mm - 13.71 x 11.65 mm - 13.71 x 13.74 mm |
| Fov detector long side horizontal @ 1/3″ | 13.71 x 10.29 mm 13.71 x 10.59 mm 13.71 x 11.65 mm 13.71 x 13.74 mm |
| Fov detector long side horizontal @ 2/3.0″ | 24.29 x 20.26 mm - 24.29 x 20.85 mm - 24.29 x 22.94 mm - 24.29 x 27.06 mm |
| Fov detector long side horizontal @ 2/3″ | 24.29 x 20.26 mm 24.29 x 20.85 mm 24.29 x 22.94 mm 24.29 x 27.06 mm |
| Fov detector long side vertical @ 1/1.8″ | 13.71 x 12.23 mm - 14.12 x 12.23 mm - 15.53 x 12.23 mm - 18.32 x 12.23 |
| Fov detector long side vertical @ 1/2.0″ (mm) | 13.71 x 18.29 |
| Fov detector long side vertical @ 1/2.5″ | 12.23 x 16.29 - 12.23 x 16.76 - 12.23 x 18.45 - 12.23 x 21.76 |
| Fov detector long side vertical @ 1/2″ | 13.71 x 18.29 13.71 x 18.82 13.71 x 20.71 13.71 x 24.43 |
| Fov detector long side vertical @ 1/3.0″ | 10.29 x 13.71 mm - 10.29 x 14.12 mm - 10.29 x 15.53 mm - 10.29 x 18.32 mm |
| Fov detector long side vertical @ 1/3″ | 10.29 x 13.71 mm 10.29 x 14.12 mm 10.29 x 15.53 mm 10.29 x 18.32 mm |
| Fov detector long side vertical @ 2/3″ | 20.26 x 24.29 mm - 20.26 x 25.00 mm - 20.26 x 27.51 mm - 20.26 x 32.44 mm |
| Front diameter | 44 mm |
| Horizontal magnification | 0.35 0.35 0.35 0.35 |
| Lens type | Telecentric |
| Mount tilt | 0 ° 5.4 ° 11.4 ° 19.3 ° |
| Mount tilt maximum | 20 ° |
| Object tilt | 0 ° 15 ° 30 ° 45 ° |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Vertical magnification | 0.350 0.340 0.309 0.262 |
| Working ƒ/n | f/8 |
| Weight | 493 Grams |
