Home / Lenses / Telecentric lenses / 3.5× telecentric lens, 2/3", C-Mount

3.5× telecentric lens, 2/3", C-Mount (LS-TCL-0439)

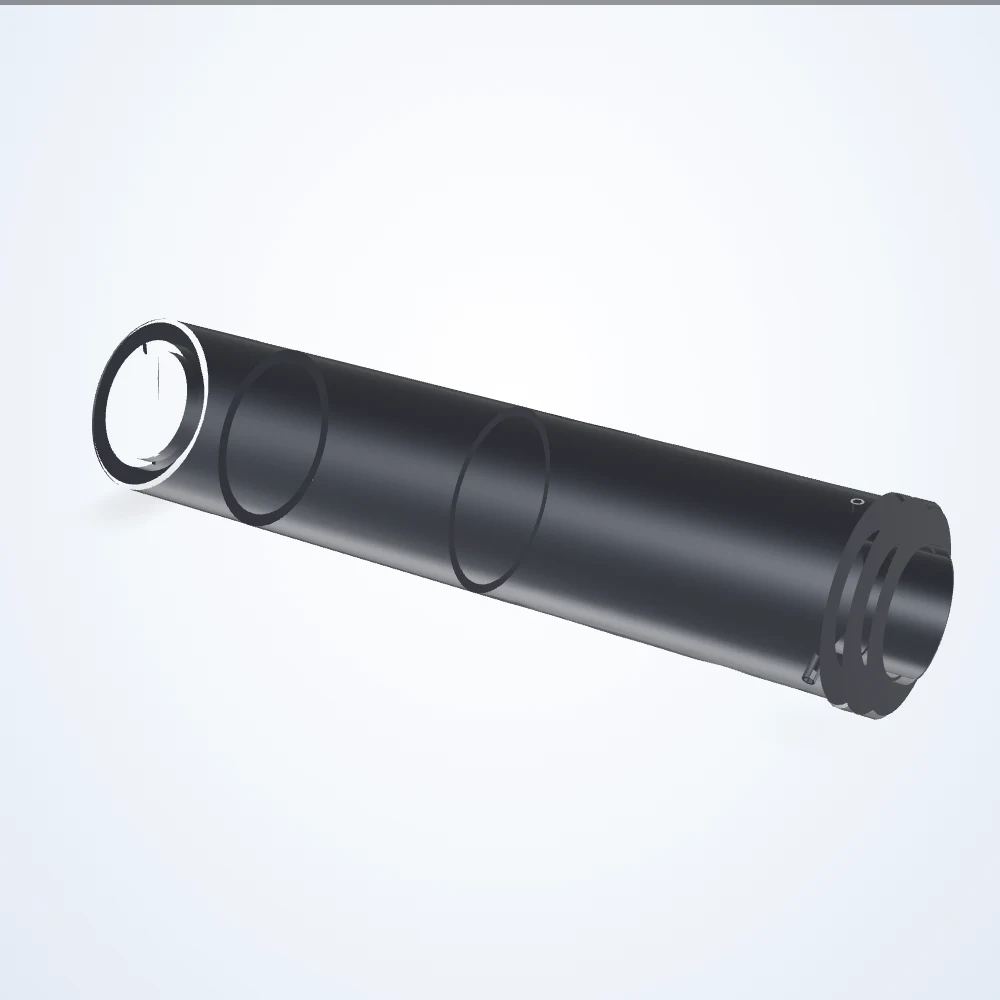

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

3.5× telecentric lens, 2/3", C-Mount (LS-TCL-0439)

Model LS-TCL-0439

3.5× telecentric lens, 2/3", C-Mount. Working distance 132.3 mm. Depth of field 0.1 mm.

Datasheet (PDF) - LS-TCL-0439 3D model (STEP) - LS-TCL-0439

Specifications

Model	LS-TCL-0439
Depth Of Field	0.1 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
FoV @ 1/1.8″	2.04 x 1.52 mm
FoV @ 1/2.0″	1.83 x 1.37 mm
FoV @ 1/2.5″	1.63 x 1.22 mm
FoV @ 1/3.0″	1.37 x 1.03 mm
FoV @ 2/3″	2.43 x 2.03 mm
Front Diameter	37.7 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	3.5×
Mount	C-Mount
Resolution (Pixel Size)	4 μm
Telecentricity Maximum	0.06°
Telecentricity Typical	< 0.04°
Working Distance	132.3 mm
Working ƒ/N	f/24

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
