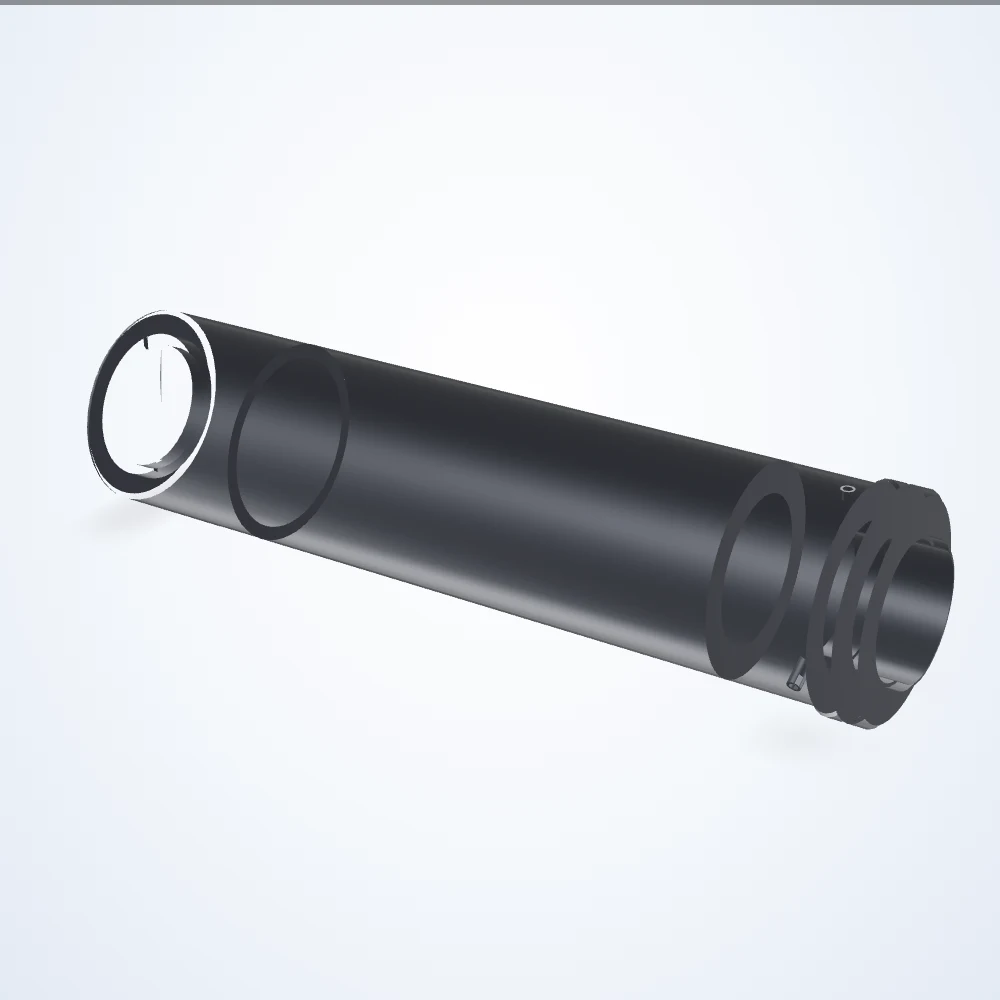

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
2.5× telecentric lens, 2/3", C-mount (LS-TCL-0438)
Model LS-TCL-0438
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.3 mm; depth of field 0.2 mm.
Specifications
| Model | LS-TCL-0438 |
|---|---|
| Magnification | 2.5× |
| Working distance | 132.3 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.2 mm |
| Dimensions approximate | 157 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 2.85 x 2.13 mm |
| Fov @ 1/2.0″ | 2.56 x 1.92 mm |
| Fov @ 1/2.5″ | 2.28 x 1.71 mm |
| Fov @ 1/2″ | 2.56 x 1.92 mm |
| Fov @ 1/3.0″ | 1.92 x 1.44 mm |
| Fov @ 2/3″ | 3.40 x 2.84 mm |
| Front diameter | 37.7 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 5 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.06° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/20 |
| Weight | 411 Grams |
