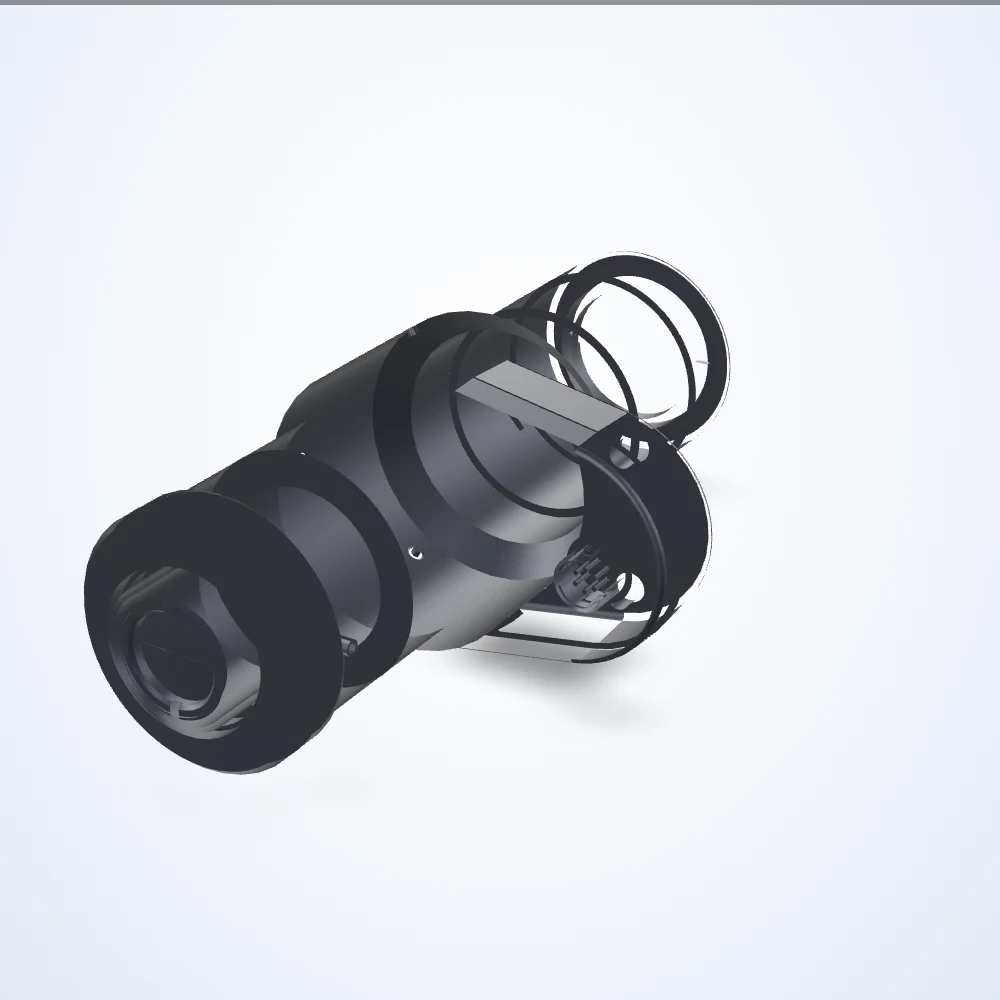

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1× telecentric lens, 2/3", C-mount (LS-TCL-0428)
Model LS-TCL-0428
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: hr10a-7r-6pbc; working distance 118.0 - 142.0 mm; depth of field 0.6 mm.
Specifications
| Model | LS-TCL-0428 |
|---|---|
| Magnification | 1× |
| Working distance | 118.0 - 142.0 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.6 mm |
| Connector | HR10A-7R-6PBc |
| Current range | -500 to +500 mA |
| Dimensions approximate | 126 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Focal power mode | Yes |
| Fov @ 1/1.8″ | 7.13 x 5.33 mm |
| Fov @ 1/2.0″ | 6.40 x 4.80 mm |
| Fov @ 1/2.5″ | 5.70 x 4.28 mm |
| Fov @ 1/2″ | 6.40 x 4.80 mm |
| Fov @ 1/3.0″ | 4.80 x 3.60 mm |
| Fov @ 2/3″ | 8.50 x 7.09 mm |
| Front diameter | 37.7 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| Lens type | Telecentric |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | EL-16-40 |
| Magnification ranges at -2 dpt to +3 dpt | 0.991 - 1.016× |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Repeatability using focal power mode (dpt) | ±0.05 (small steps); ±0.1 (large steps) (dpt) |
| Resolution (pixel size) | 8 μm |
| Response time | 5 Milliseconds |
| Setting time | 25 Milliseconds |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.1° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/12 |
| Weight | 374 Grams |
