Home / Lenses / Telecentric lenses / 0.75× telecentric lens, 2/3", C-Mount

0.75× telecentric lens, 2/3", C-Mount (LS-TCL-0427)

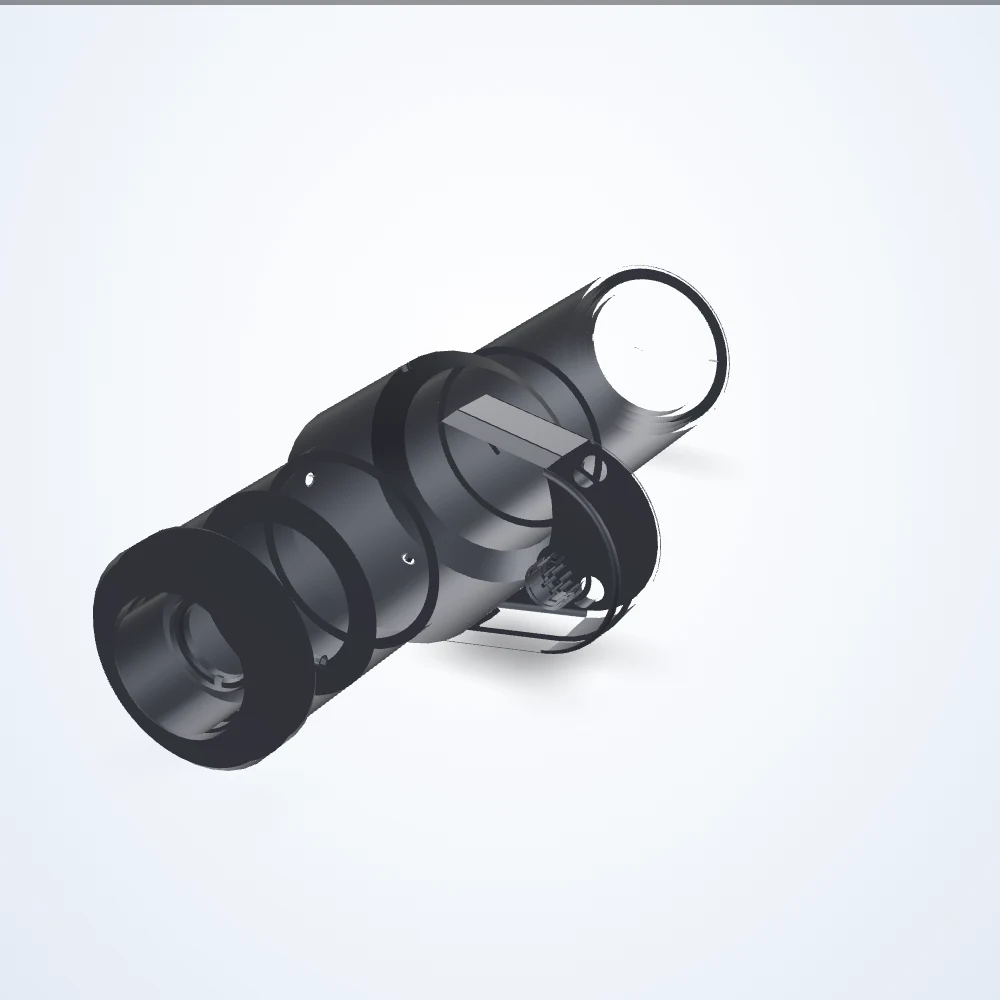

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.75× telecentric lens, 2/3", C-Mount (LS-TCL-0427)

Model LS-TCL-0427

0.75× telecentric lens, 2/3", C-Mount. Working distance 112.5 - 146.1 mm. Depth of field 1.1 mm.

Datasheet (PDF) - LS-TCL-0427 3D model (STEP) - LS-TCL-0427

Specifications

Model	LS-TCL-0427
Depth Of Field	1.1 mm
Distortion Maximum (%)	< 0.2
Distortion Typical (%)	< 0.1
Filter Thread	No Filter Threads
FoV @ 1/1.8″	9.51 x 7.11 mm
FoV @ 1/2.0″	8.53 x 6.40 mm
FoV @ 1/2.5″	7.60 x 5.71 mm
FoV @ 1/3.0″	6.40 x 4.80 mm
FoV @ 2/3″	11.33 x 9.45 mm
Front Diameter	37.7 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.75×
Mount	C-Mount
Resolution (Pixel Size)	10 μm
Telecentricity Maximum	0.1°
Telecentricity Typical	< 0.07°
Working Distance	112.5 - 146.1 mm
Working ƒ/N	f/12

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
