0.67× telecentric lens, 2/3", C-Mount (LS-TCL-0426)

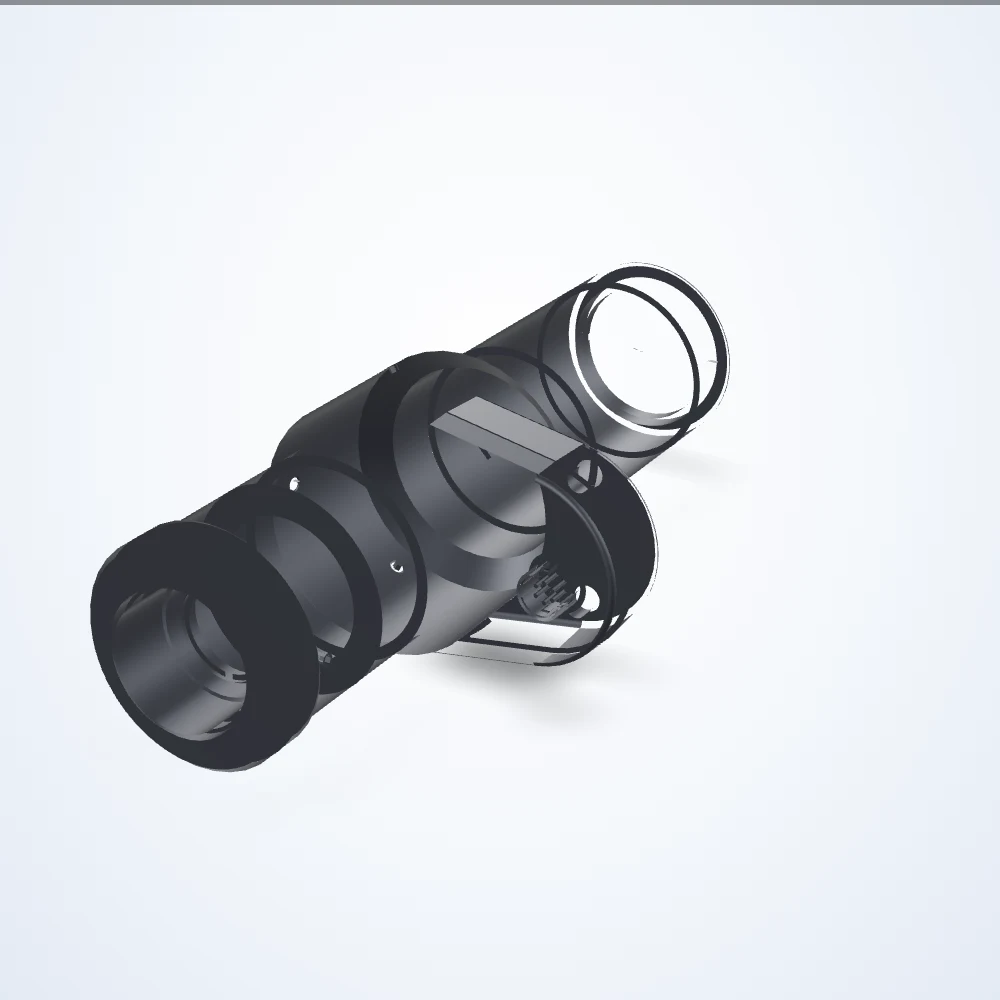

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.67× telecentric lens, 2/3", C-Mount (LS-TCL-0426)

Model LS-TCL-0426

0.67× telecentric lens, 2/3", C-Mount. Working distance 112.3 -146.1 mm. Depth of field 1.4 mm.

Datasheet (PDF) - LS-TCL-0426 3D model (STEP) - LS-TCL-0426

Specifications

Model	LS-TCL-0426
Depth Of Field	1.4 mm
Distortion Maximum (%)	< 0.2
Distortion Typical (%)	< 0.1
Filter Thread	No Filter Threads
FoV @ 1/1.8″	10.64 x 7.96 mm
FoV @ 1/2.0″	9.55 x 7.16 mm
FoV @ 1/2.5″	8.51 x 6.39 mm
FoV @ 1/3.0″	7.16 x 5.37 mm
FoV @ 2/3″	12.69 x 10.58 mm
Front Diameter	37.7 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.67×
Mount	C-Mount
Resolution (Pixel Size)	11 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.04°
Working Distance	112.3 -146.1 mm
Working ƒ/N	f/12
