Home / Lenses / Telecentric lenses / 0.5× telecentric lens, 2/3", C-Mount

0.5× telecentric lens, 2/3", C-Mount (LS-TCL-0425)

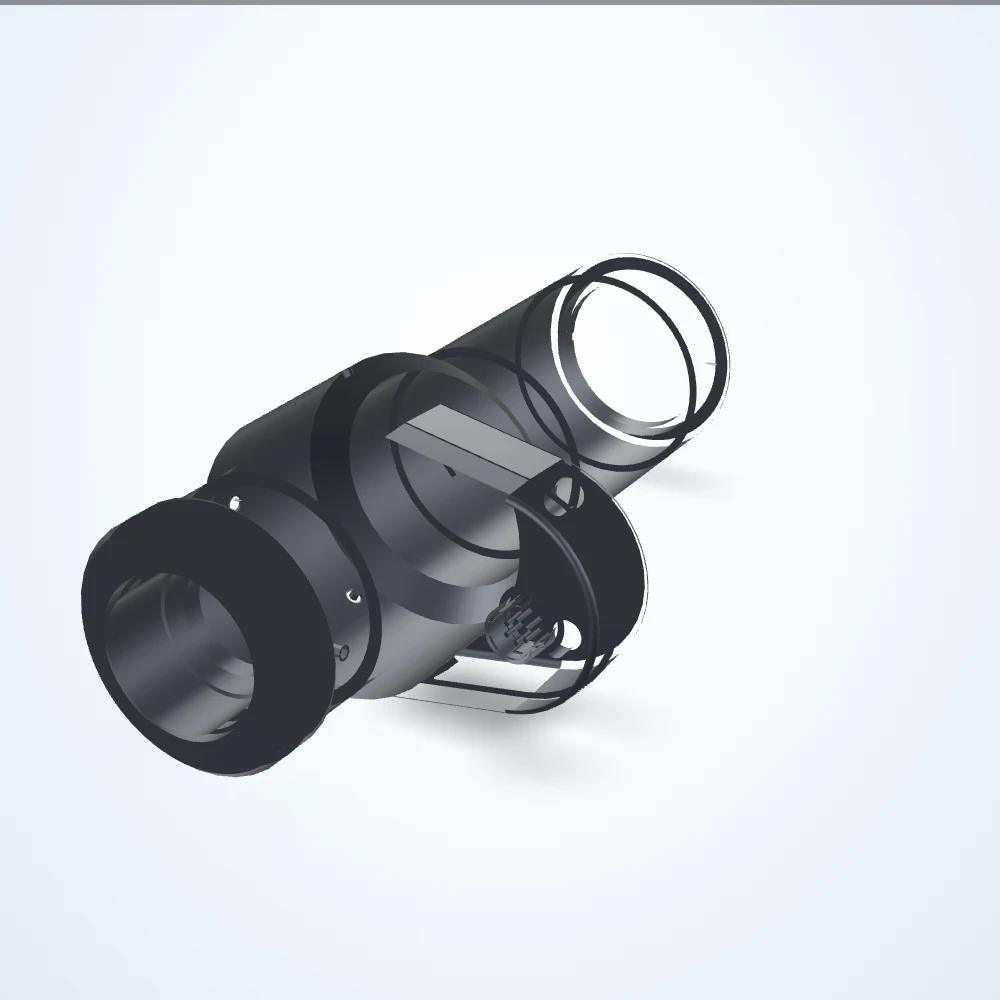

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.5× telecentric lens, 2/3", C-Mount (LS-TCL-0425)

Model LS-TCL-0425

0.5× telecentric lens, 2/3", C-Mount. Working distance 112.2 mm - 146.3 mm. Depth of field 2.5 mm.

Datasheet (PDF) - LS-TCL-0425 3D model (STEP) - LS-TCL-0425

Specifications

Model	LS-TCL-0425
Depth Of Field	2.5 mm
Distortion Maximum (%)	< 0.2
Distortion Typical (%)	< 0.1
Filter Thread	No Filter Threads
FoV @ 1/1.8″	14.26 x 10.66 mm
FoV @ 1/2.0″	12.80 x 9.60 mm
FoV @ 1/2.5″	11.40 x 8.56 mm
FoV @ 1/3.0″	9.60 x 7.20 mm
FoV @ 2/3″	17.00 x 14.18 mm
Front Diameter	37.7 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.5×
Mount	C-Mount
Resolution (Pixel Size)	15 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.04°
Working Distance	112.2 mm - 146.3 mm
Working ƒ/N	f/12
