Home / Lenses / Telecentric lenses / 1.5× telecentric lens, 2/3", C-Mount

1.5× telecentric lens, 2/3", C-Mount (LS-TCL-0399)

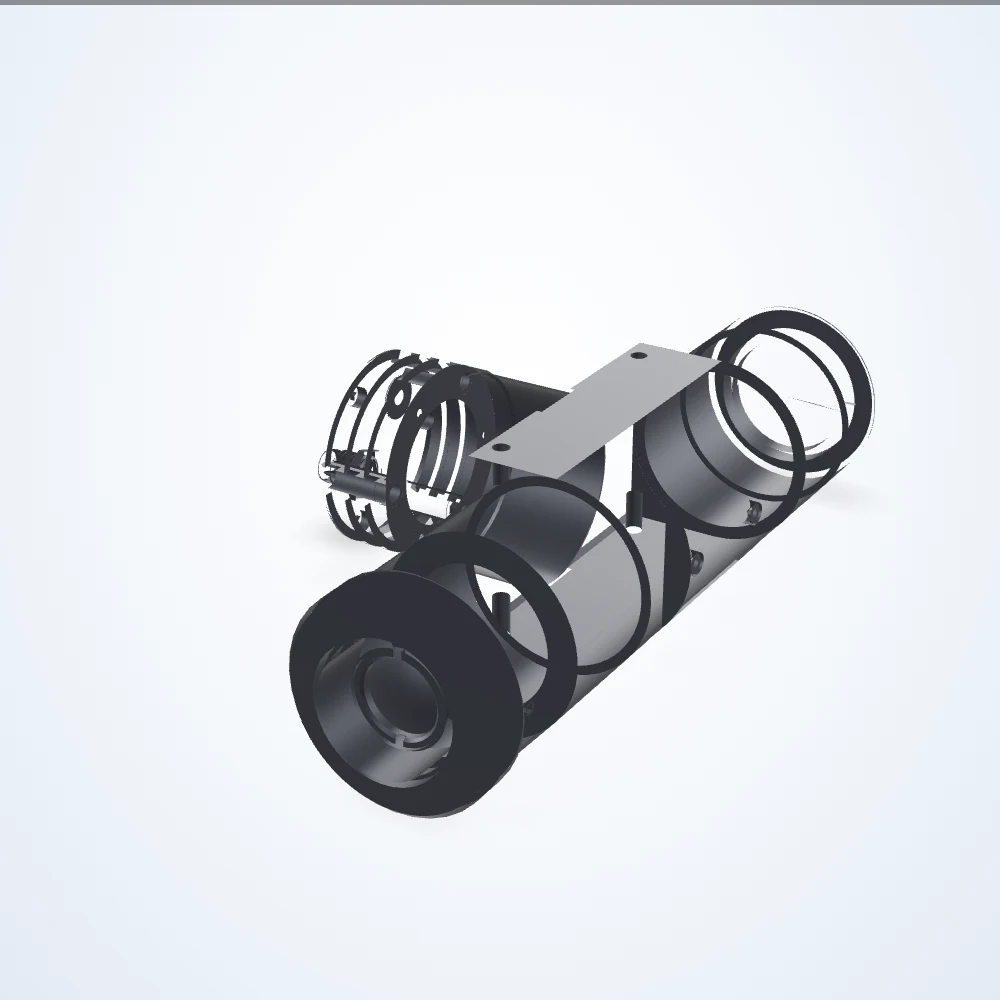

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1.5× telecentric lens, 2/3", C-Mount (LS-TCL-0399)

Model LS-TCL-0399

1.5× telecentric lens, 2/3", C-Mount. Working distance 132.3 mm. Depth of field 0.4 mm.

Datasheet (PDF) - LS-TCL-0399 3D model (STEP) - LS-TCL-0399

Specifications

Model	LS-TCL-0399
Depth Of Field	0.4 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
FoV @ 1/1.8″	4.75 x 3.55 mm
FoV @ 1/2.0″	4.27 x 3.20 mm
FoV @ 1/2.5″	3.80 x 2.85 mm
FoV @ 1/3.0″	3.20 x 2.40 mm
FoV @ 2/3″	5.67 x 4.73 mm
Front Diameter	37.7 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	1.5×
Mount	C-Mount
Resolution (Pixel Size)	7 μm
Telecentricity Maximum	0.06°
Telecentricity Typical	< 0.04°
Working Distance	132.3 mm
Working ƒ/N	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
