0.66× telecentric lens, 2/3", C-Mount (LS-TCL-0393)

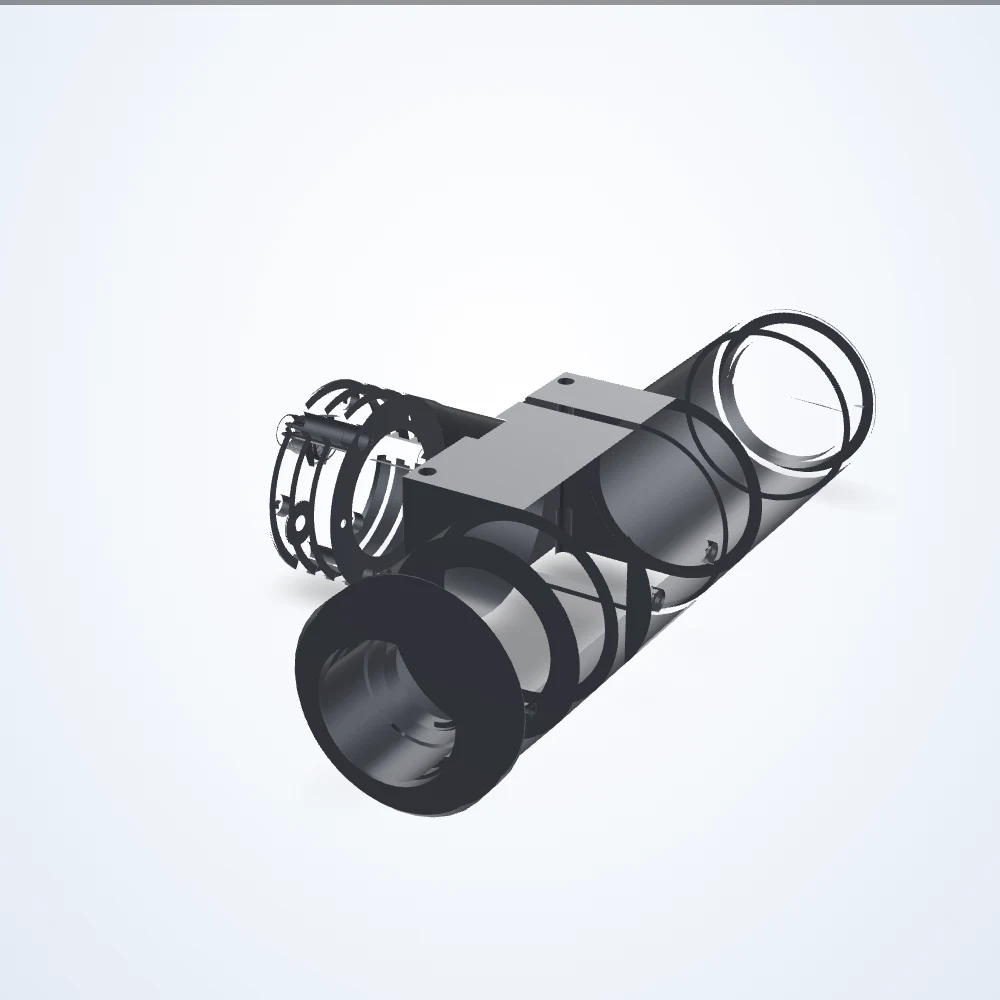

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.66× telecentric lens, 2/3", C-Mount (LS-TCL-0393)

Model LS-TCL-0393

0.66× telecentric lens, 2/3", C-Mount. Working distance 132.3 mm. Depth of field 1.4 mm.

Datasheet (PDF) - LS-TCL-0393 3D model (STEP) - LS-TCL-0393

Specifications

Model	LS-TCL-0393
Depth Of Field	1.4 mm
Distortion Maximum (%)	< 0.2
Distortion Typical (%)	< 0.1
Filter Thread	No Filter Threads
FoV @ 1/1.8″	10.80 x 8.08 mm
FoV @ 1/2.0″	9.70 x 7.27 mm
FoV @ 1/2.5″	8.64 x 6.48 mm
FoV @ 1/3.0″	7.27 x 5.45 mm
FoV @ 2/3″	12.88 x 10.74 mm
Front Diameter	37.7 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.66×
Mount	C-Mount
Resolution (Pixel Size)	12 μm
Telecentricity Maximum	0.06°
Telecentricity Typical	< 0.04°
Working Distance	132.3 mm
Working ƒ/N	f/12
