Telecentric lenses

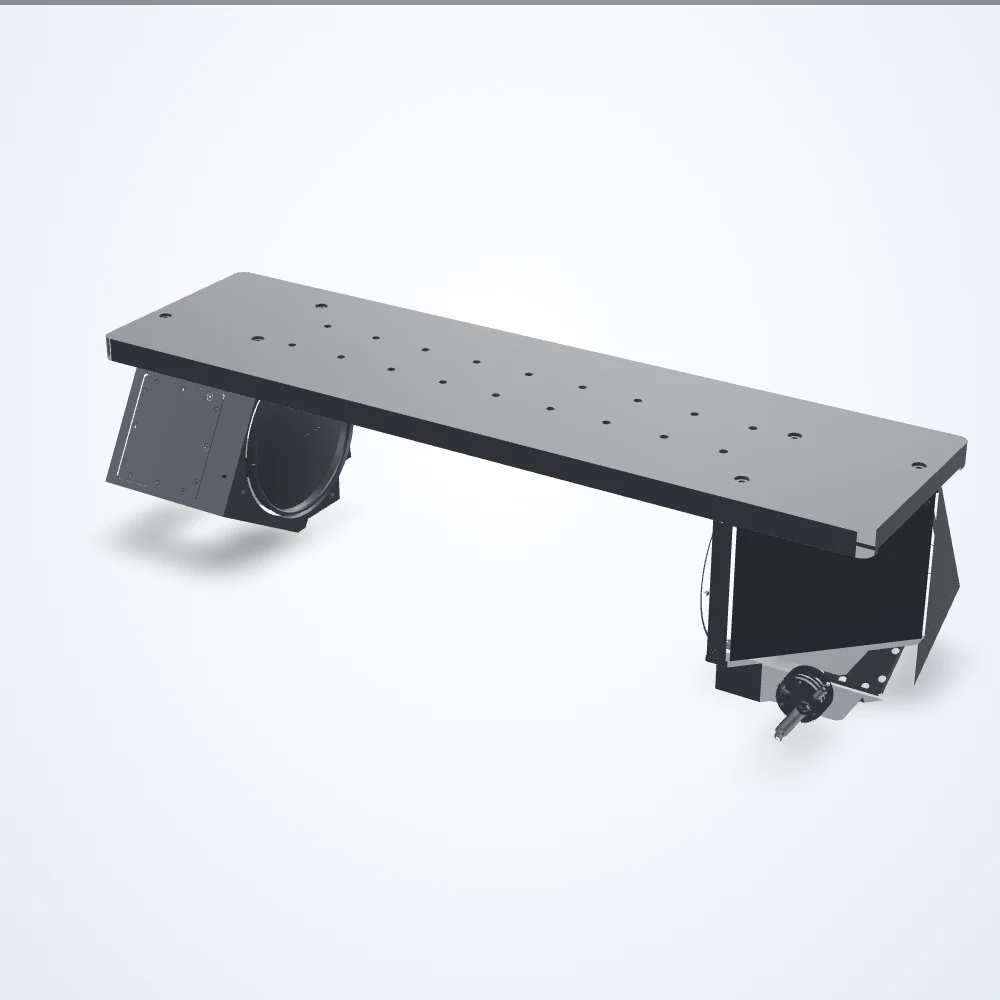

0.093× telecentric lens, 2/3", C-mount (LS-TCL-0390)
Model LS-TCL-0390
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 47.9 mm.
Specifications
| Model | LS-TCL-0390 |
|---|---|
| Magnification | 0.093× |
| Working distance | 278.6 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 47.9 mm |
| Dimensions approximate | 696 x 218 x 189 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 76.67 x 57.31 mm |
| Fov @ 1/2.0″ | 68.82 x 51.61 mm |
| Fov @ 1/2.5″ | 61.29 x 46.02 mm |
| Fov @ 1/2″ | 68.82 x 51.61 mm |
| Fov @ 1/3.0″ | 51.61 x 38.71 mm |
| Fov @ 2/3″ | 91.40 x 76.24 mm |
| Image circle | 11.4 mm |
| Image size dimensions | 9.4 x 9.4 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Lens type | Telecentric |
| Light color | Green |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 55 μm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Wavelength | 520 nm |
| Working ƒ/n | f/8 |
| Weight | 15810 Grams |
