Telecentric lenses

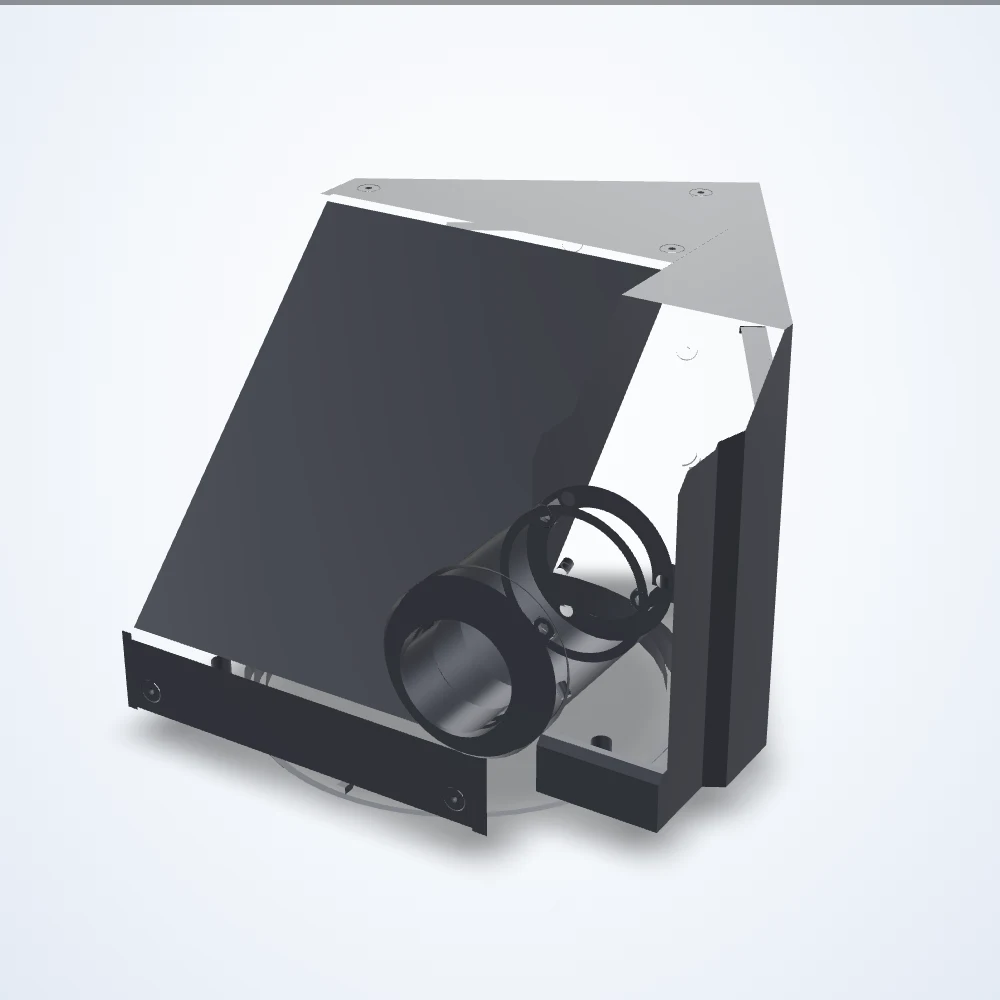

0.182× telecentric lens, 1.1", C-mount (LS-TCL-0383)
Model LS-TCL-0383
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.8 mm; depth of field 12.5 mm.
Specifications
| Model | LS-TCL-0383 |
|---|---|
| Magnification | 0.182× |
| Working distance | 226.8 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Depth of field | 12.5 mm |
| Dimensions approximate | 189 x 145 x 119 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 77.8 x 56.98 mm |
| Fov @ 1/2.0″ | 62.36 x 39.18 mm |
| Fov @ 1/2″ | 62.36 x 39.18 mm |
| Fov @ 1″ | 77.97 x 41.26 mm |
| Image circle | 17.7 mm |
| Image size dimensions | 15.09 x 15.09 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 28 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 3075 Grams |
