Home / Lenses / Telecentric lenses / 0.093× telecentric lens, 2/3", C-Mount

0.093× telecentric lens, 2/3", C-Mount (LS-TCL-0375)

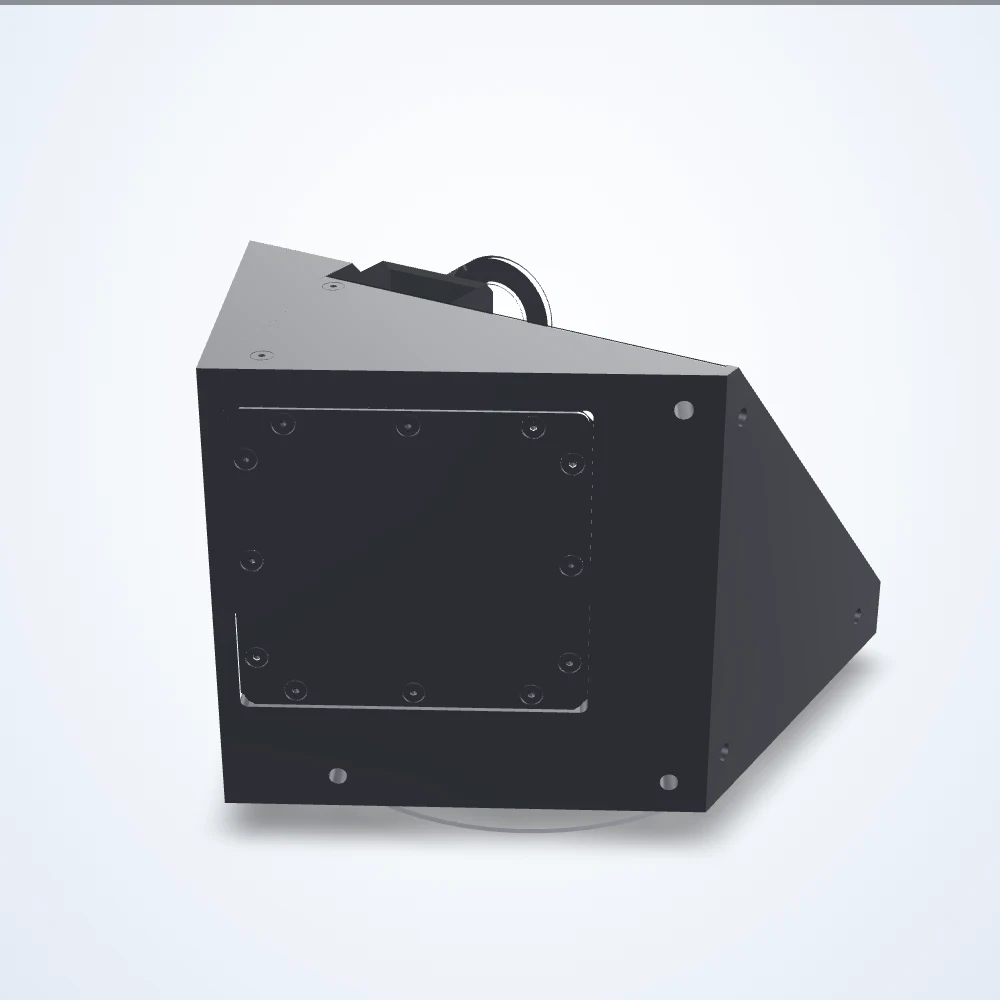

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.093× telecentric lens, 2/3", C-Mount (LS-TCL-0375)

Model LS-TCL-0375

0.093× telecentric lens, 2/3", C-Mount. Working distance 278.6 mm. Depth of field 47.9 mm.

Datasheet (PDF) - LS-TCL-0375 3D model (STEP) - LS-TCL-0375

Specifications

Model	LS-TCL-0375
Depth Of Field	47.9 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.04
Filter Thread	No Filter Threads
FoV @ 1/1.8″	76.67 x 57.31 mm
FoV @ 1/2.0″	68.82 x 51.61 mm
FoV @ 1/2.5″	61.29 x 46.02 mm
FoV @ 1/3.0″	51.61 x 38.71 mm
FoV @ 2/3″	91.40 x 76.24 mm
Image Circle Diameter	8.3 mm
Image Size Dimensions	6.8 x 6.8 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.093×
Mount	C-Mount
Resolution (Pixel Size)	55 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.06°
Working Distance	278.6 mm
Working ƒ/N	f/8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
