Home / Lenses / Telecentric lenses / 0.157× telecentric lens, 2/3", C-Mount

0.157× telecentric lens, 2/3", C-Mount (LS-TCL-0372)

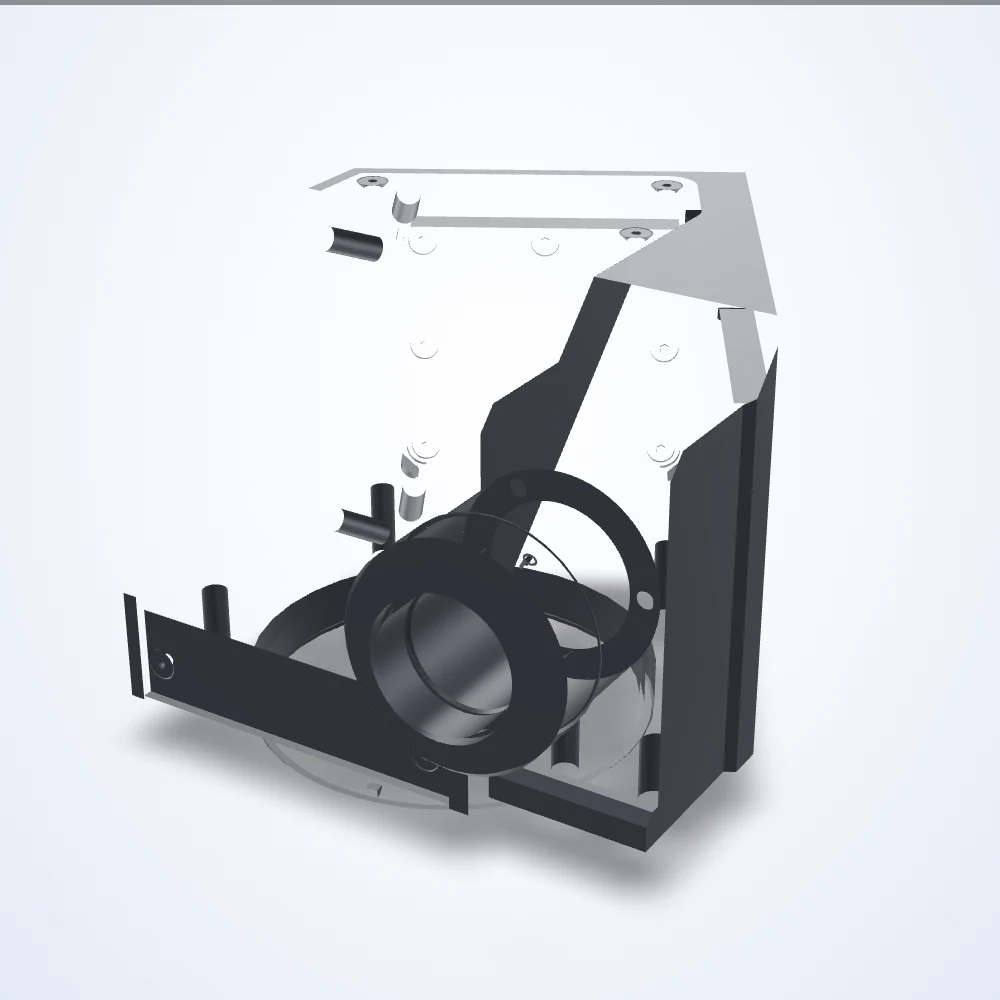

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.157× telecentric lens, 2/3", C-Mount (LS-TCL-0372)

Model LS-TCL-0372

0.157× telecentric lens, 2/3", C-Mount. Working distance 157.8 mm. Depth of field 16.8 mm.

Datasheet (PDF) - LS-TCL-0372 3D model (STEP) - LS-TCL-0372

Specifications

Model	LS-TCL-0372
Depth Of Field	16.8 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.03
Filter Thread	No Filter Threads
FoV @ 1/1.8″	45.41 x 33.95 mm
FoV @ 1/2.0″	40.76 x 30.57 mm
FoV @ 1/2.5″	36.31 x 27.26 mm
FoV @ 1/3.0″	30.57 x 22.93 mm
FoV @ 2/3″	54.14 x 45.16 mm
Image Circle Diameter	11.1 mm
Image Size Dimensions	9.6 x 9.6 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.157×
Mount	C-Mount
Resolution (Pixel Size)	32 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.05°
Working Distance	157.8 mm
Working ƒ/N	f/8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
