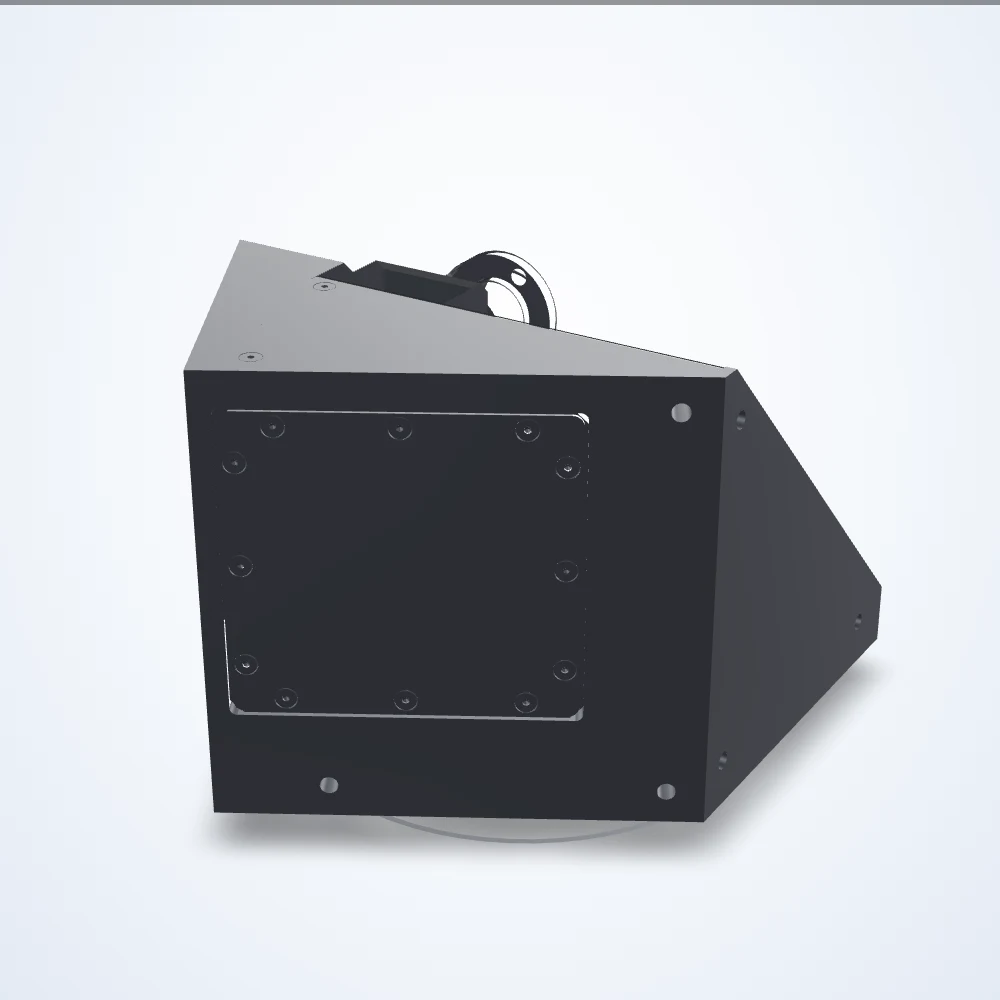

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.114× telecentric lens, 1/1.2", C-mount (LS-TCL-0369)
Model LS-TCL-0369
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 31.9 mm.
Specifications
| Model | LS-TCL-0369 |
|---|---|
| Magnification | 0.114× |
| Working distance | 278.6 mm |
| Sensor format | 1/1.2" |
| Mount | C-Mount |
| Depth of field | 31.9 mm |
| Dimensions approximate | 197.5 x 172 x 139 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 99.56 x 62.54 mm |
| Fov @ 1/1.8″ | 62.54 x 46.75 mm |
| Fov @ 2/3″ | 74.56 x 62.19 mm |
| Image circle | 13.7 mm |
| Image size dimensions | 11.3 x 11.3 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 45 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 4260 Grams |
