Telecentric lenses

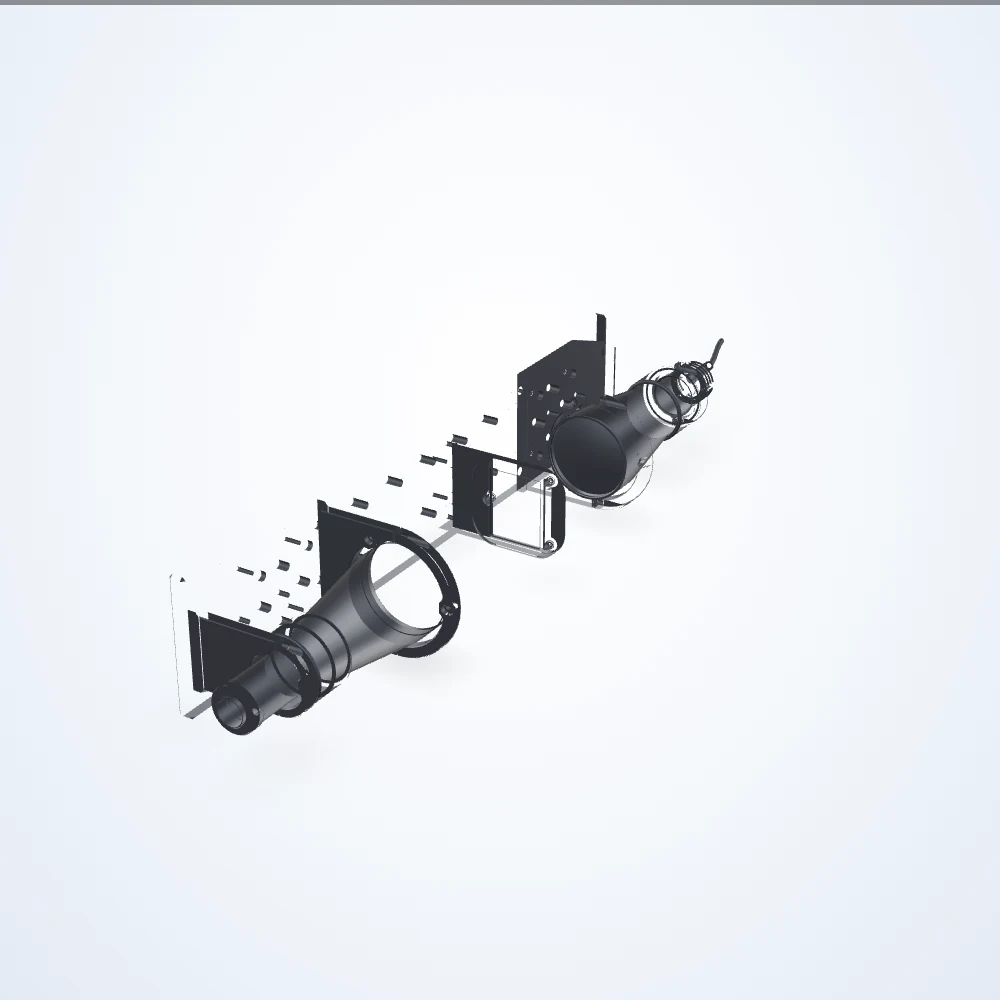

0.157× telecentric lens, 2/3", C-mount (LS-TCL-0343)
Model LS-TCL-0343
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm; depth of field 16.8 mm.
Specifications
| Model | LS-TCL-0343 |
|---|---|
| Magnification | 0.157× |
| Working distance | 157.8 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 16.8 mm |
| Dimensions approximate | 712 x 122 x 150 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 45.41 x 33.95 mm |
| Fov @ 1/2.0″ | 40.76 x 30.57 mm |
| Fov @ 1/2.5″ | 36.31 x 27.26 mm |
| Fov @ 1/2″ | 40.76 x 30.57 mm |
| Fov @ 1/3.0″ | 30.57 x 22.93 mm |
| Fov @ 2/3″ | 54.14 x 45.16 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Lens type | Telecentric |
| Light color | Green |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 32 μm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Wavelength | 520 nm |
| Working ƒ/n | f/8 |
| Weight | 7320 Grams |
