Home / Lenses / Telecentric lenses / 0.35× telecentric lens, 2/3", C-Mount

0.35× telecentric lens, 2/3", C-Mount (LS-TCL-0340)

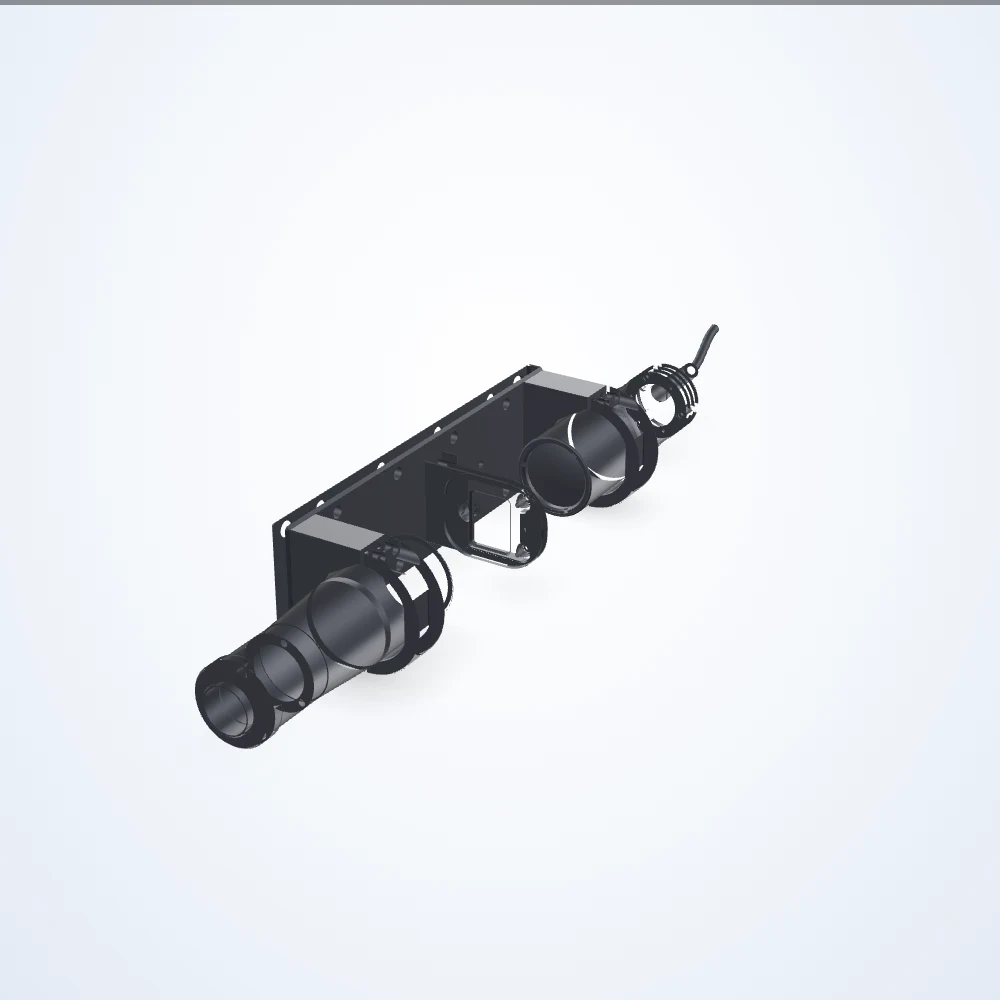

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.35× telecentric lens, 2/3", C-Mount (LS-TCL-0340)

Model LS-TCL-0340

0.35× telecentric lens, 2/3", C-Mount. Working distance 67.2 mm. Depth of field 3.4 mm.

Datasheet (PDF) - LS-TCL-0340 3D model (STEP) - LS-TCL-0340

Specifications

Model	LS-TCL-0340
Depth Of Field	3.4 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.04
Filter Thread	No Filter Threads
FoV @ 1/1.8″	20.37 x 15.23 mm
FoV @ 1/2.0″	18.29 x 13.71 mm
FoV @ 1/2.5″	16.29 x 12.23 mm
FoV @ 1/3.0″	13.71 x 10.29 mm
FoV @ 2/3″	24.29 x 20.26 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.35×
Mount	C-Mount
Resolution (Pixel Size)	15 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	67.2 mm
Working ƒ/N	f/8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
