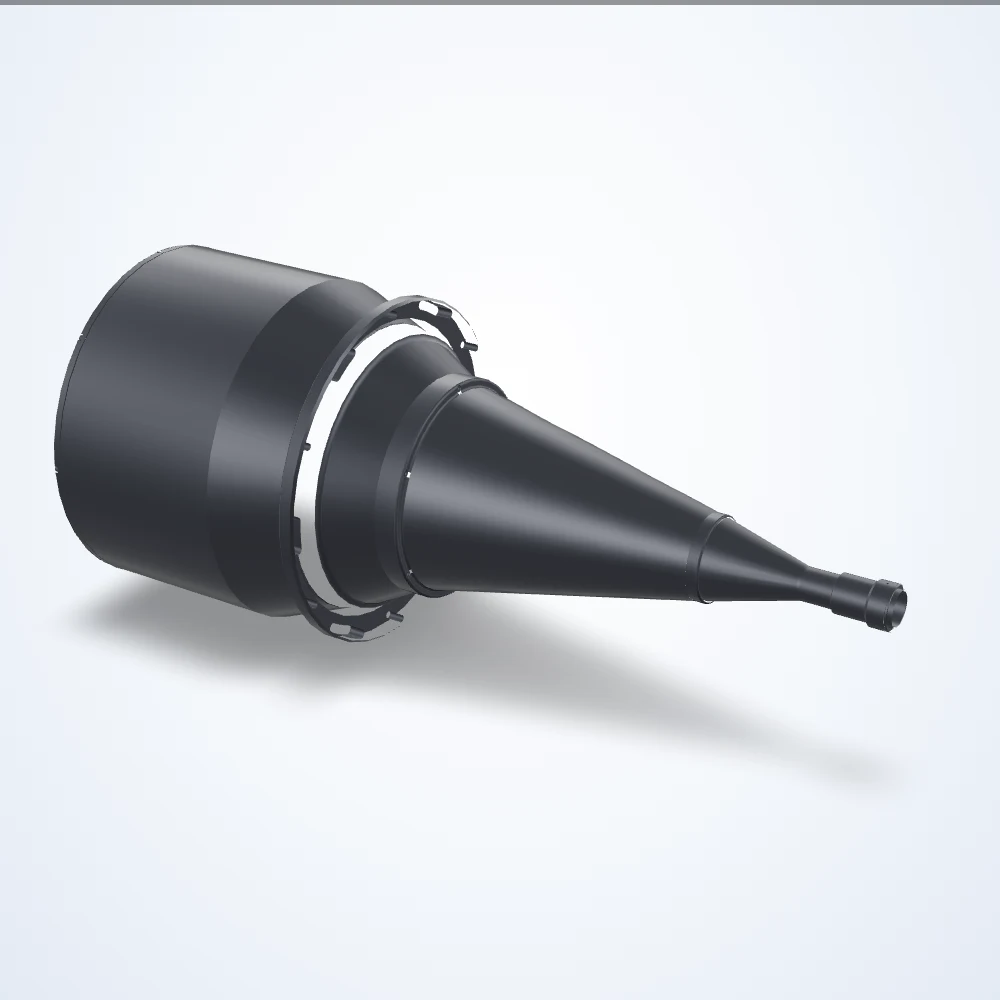

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.059× telecentric lens, 4/3", M42-mount (LS-TCL-0337)
Model LS-TCL-0337
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 500 mm; depth of field 118.9 mm.
Specifications
| Model | LS-TCL-0337 |
|---|---|
| Magnification | 0.059× |
| Working distance | 500 mm |
| Sensor format | 4/3" |
| Mount | M42-Mount |
| Depth of field | 118.9 mm |
| Dimensions approximate | 975.9 x 417 x 417 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.07 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 240.00 x 175.76 mm |
| Fov @ 1″ | 240.51 x 127.29 mm |
| Fov @ 4/3″ | 320.85 x 179.83 mm |
| Front diameter | 417 mm |
| Image circle | 21.8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 86 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.09° |
| Working ƒ/n | f/8 |
| Weight | 38685 Grams |
