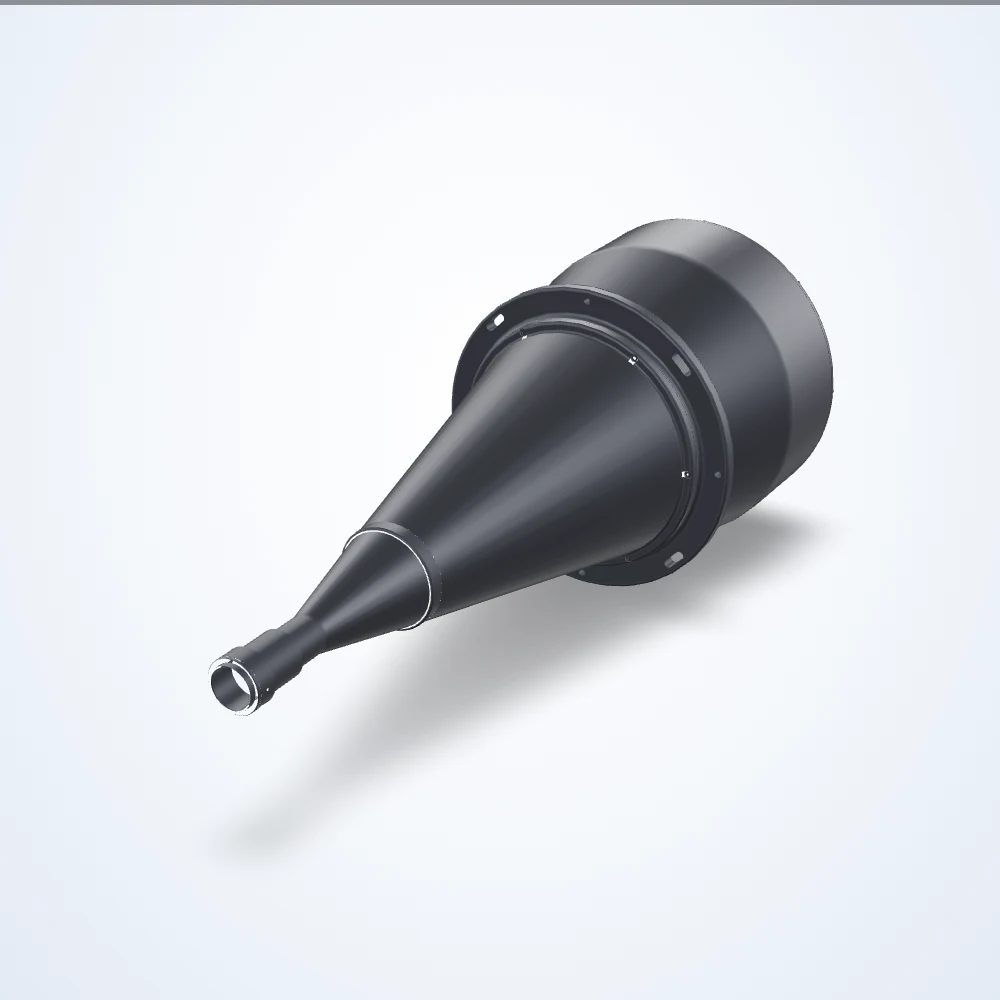

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.073× telecentric lens, 4/3", M42-mount (LS-TCL-0334)
Model LS-TCL-0334
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.8 mm; depth of field 77.7 mm.
Specifications
| Model | LS-TCL-0334 |
|---|---|
| Magnification | 0.073× |
| Working distance | 492.8 mm |
| Sensor format | 4/3" |
| Mount | M42-Mount |
| Depth of field | 77.7 mm |
| Dimensions approximate | 818.7 x 322 x 322 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 193.97 x 142.05 mm |
| Fov @ 1″ | 194.38 x 102.88 mm |
| Fov @ 4/3″ | 259.32 x 145.34 mm |
| Front diameter | 322 mm |
| Image circle | 21.8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 70 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 18332 Grams |
